SFP+, Cage, Data Rate (Max) 16 Gb/s, External Springs, SFP+, 1 x 1, Through Hole - Solder Mount, 1 Port, Cable-to-Board

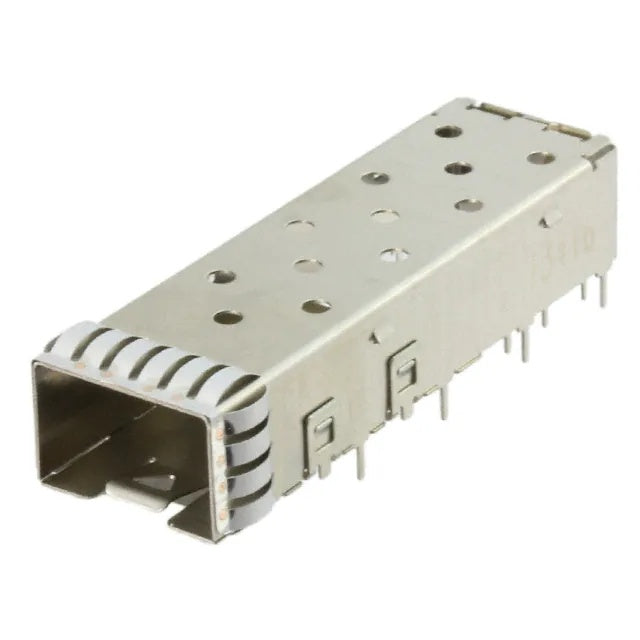

The 2110304-1 SFP+ cage assembly is a high-performance 1x1 port connector designed for 16 Gb/s high-speed data transmission in advanced networking and telecom systems. Featuring an EMI-shielded structure with external spring contacts, it ensures excellent signal integrity and reliable electromagnetic interference suppression in dense electronic environments.
This SFP+ cage supports through-hole right-angle PCB mounting with press-fit termination, providing strong mechanical stability and efficient board assembly for cable-to-board interconnect applications. Its nickel silver cage construction enhances durability and corrosion resistance, making it suitable for long-term operation in demanding environments.
Engineered for SFP+ enhanced pluggable I/O systems, this connector is optimized for switches, routers, storage equipment, servers, and high-bandwidth communication platforms requiring stable 16 Gb/s performance. With an extended operating temperature range of -55°C to +105°C, it supports both industrial and carrier-grade deployments.
Designed for OEM networking hardware, the 2110304-1 cage delivers robust EMI containment, reliable high-speed signal performance, and efficient integration for next-generation fiber and Ethernet infrastructure.
| Part Number | 2110304-1 | Part Status | Active |
| Connector Style | Cage | Connector Type | SFP+ |
| Number of Positions | Mounting Type | Through Hole, Right Angle | |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x1 Ports | Number of Ports | 1 |
| Data Rate (Max)(Gb/s) | 16 GB/S | PCB Mounting Style | Through Hole - Solder |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | SFP+ Enhanced |
| For Use With Pluggable I/O Products | SFP+ SMT Connector | EMI Containment Feature Type | EMI Springs |
| Included Lightpipe | NO | Cage Material | Nickel Silver |
| PCB Thickness (Recommended) | 1.5mm[.059in] | Tail Length | 2.8mm[.11in] |
