SFP+, Cage Assembly, Data Rate (Max) 8 Gb/s, EMI Springs, SFP+, 1 x 2, Through Hole - Press-Fit Mount, 2 Port, Cable-to-Board

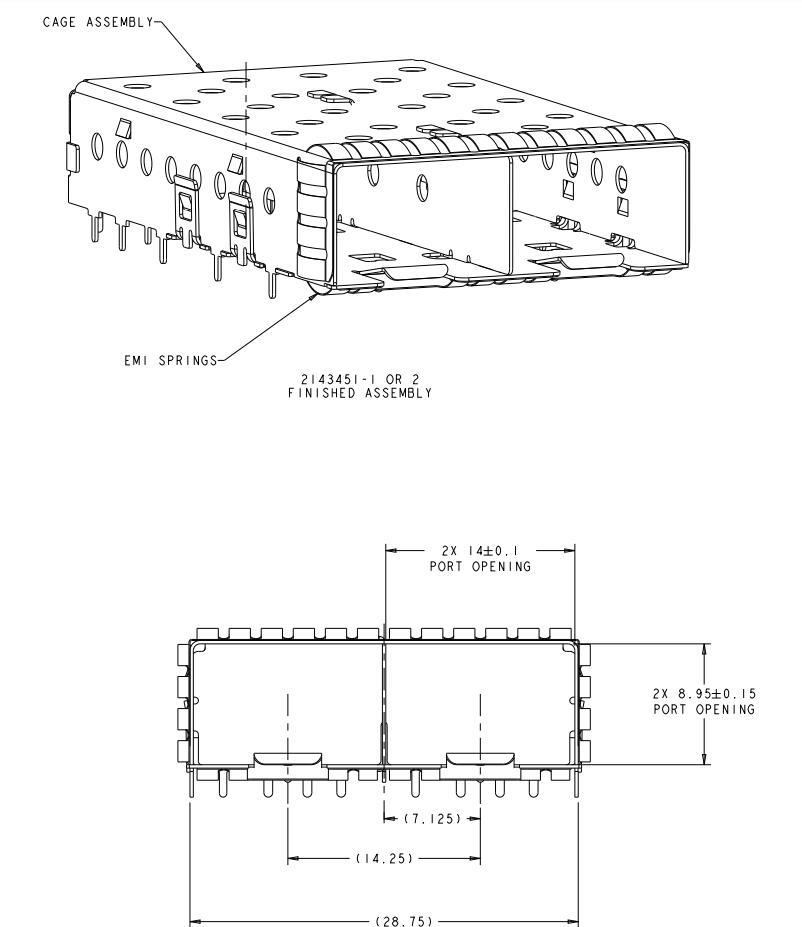

The 2143451-1 compatible SFP+ cage assembly is a high-performance 1x2 ganged cage designed for reliable high-speed serial communication in networking, telecommunications, storage, and industrial Ethernet applications. Supporting data rates up to 8 Gb/s, this SFP+ cage provides secure module retention, excellent signal integrity, and effective EMI containment for demanding network environments.
Featuring a through-hole, right-angle press-fit mounting design, the cage simplifies PCB assembly while ensuring robust mechanical stability and long-term durability. Integrated EMI springs enhance electromagnetic shielding performance, helping reduce interference and maintain stable data transmission in high-density networking equipment.
Designed for SFP+ stacked belly-to-belly applications, this dual-port cage assembly is suitable for switches, routers, servers, storage systems, optical transport equipment, and fiber optic communication platforms. Its wide operating temperature range of -55°C to +105°C enables reliable operation in enterprise, industrial, and carrier-grade deployments.
Manufactured to meet the requirements of modern pluggable I/O architectures, the 2143451-1 compatible SFP+ cage offers a cost-effective solution for OEMs and network equipment designers seeking dependable board-level connectivity, superior EMI performance, and high-density port integration.
| Part Number | 2143451-1 | Part Status | Active |
| Connector Style | Cage, Ganged (1 x 2) | Connector Type | SFP+ |
| Data Rate (Max)(Gb/s) | 8 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x2 Ports | Number of Ports | 2 |
| Number of Rear EONs per Port Column | - | Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| Circuit Application | Signal | EMI Containment Feature Type | EMI Springs |
| Included Lightpipe | NO | Cage Material | - |
| PCB Thickness (Recommended) | - | Tail Length | - |
Contact us.
For any inquiries, please feel free to contact us. We reply within 24 hours.
📧 Email: una@f-tone.com
📱 Mobile / WhatsApp / WeChat: +86 177 6116 3895
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
