TE Connectivity 2170030-1 Compatible SFP+ 1x4 Cage Assembly Technical Overview
The TE Connectivity 2170030-1 is a 1x4 ganged SFP+ quad-port cage assembly with integrated ultra-low dual round lightpipes designed for TE Connectivity 2170030-1 compatible applications in high-density 10Gb/s Ethernet and 16Gb/s Fibre Channel systems. Featuring solderless press-fit PCB mounting, a nickel silver housing, and external metallic EMI spring shielding, it delivers dense 4-port I/O consolidation, real-time LED link status indication, and belly-to-belly PCB mounting capability for enterprise switches, SAN storage directors, and telecom infrastructure.

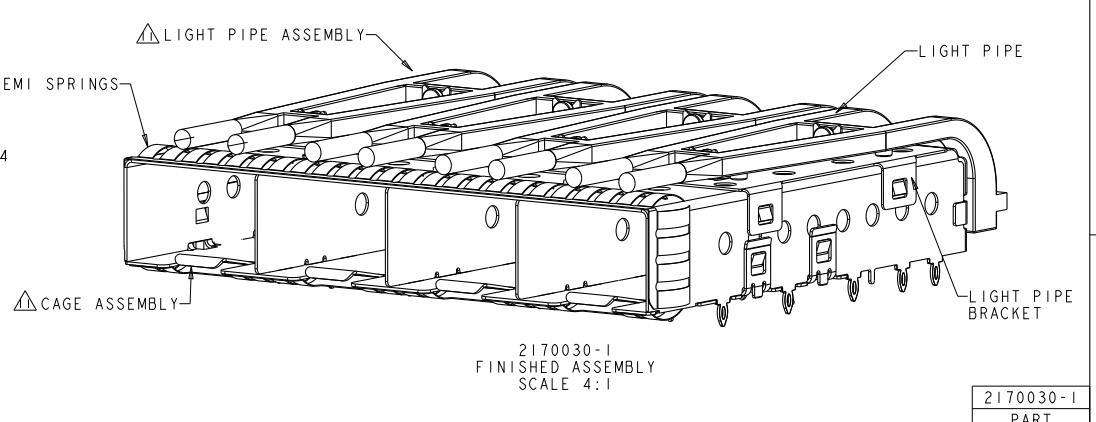

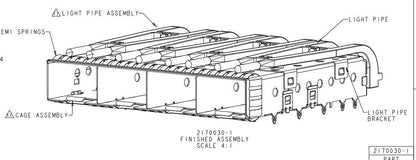

- Mechanical Form Factor: 1x4 Ganged Single-Row 4-Port SFP+ Cage Assembly with integrated ultra-low profile dual round lightpipes.
- Signal Ecosystem Support: Engineered for high-density 10GbE and 16G Fibre Channel SFP+ optical transceivers and Direct Attach Copper (DAC) cables operating up to 16 Gb/s (SFF-8431).
- Board Mount Technology: Solderless Through-Hole Press-Fit termination with 2.05mm tail length, optimized for thick 2.25mm [.089 in] enterprise PCB substrates.
- Alternative Sourcing Option: Multi-source engineering options are available to support secondary sourcing strategies, BOM cost optimization, and supply chain flexibility.
TE Connectivity 2170030-1 SFP+ Cage Assembly Product Overview

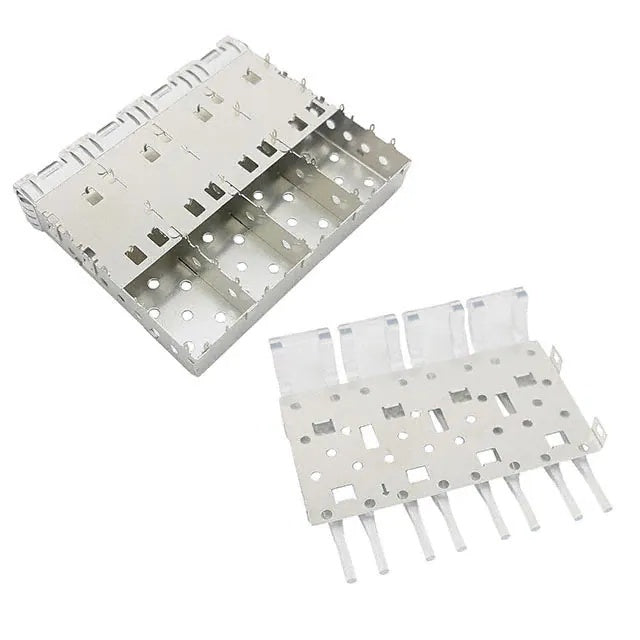

TE Connectivity 2170030-1 is a 1x4 ganged SFP+ cage assembly featuring integrated ultra-low dual round lightpipes, external metallic EMI shielding springs, and press-fit PCB mounting. Designed for quad-port high-density line cards in core switches, SAN storage expansion, and belly-to-belly motherboard topologies, this 4-port assembly transmits PCB SMT LED light cleanly to the front bezel while providing robust mechanical module retention and low transfer impedance grounding (-55°C to +105°C).
| Part Number | 2170030-1 | Part Status | Active |
| Connector Style | Cage, Ganged (1 x 4) | Connector Type | SFP+ |
| Data Rate (Max)(Gb/s) | 16 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x4 Ports | Number of Ports | 4 |
| Number of Rear EONs per Port Column | - | Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| Circuit Application | Signal | EMI Containment Feature Type | EMI Springs |
| Included Lightpipe | Yes | Cage Material | Nickel Silver |
| PCB Thickness (Recommended) | 2.25mm[.089in] | Tail Length | 2.05mm[.081in] |
