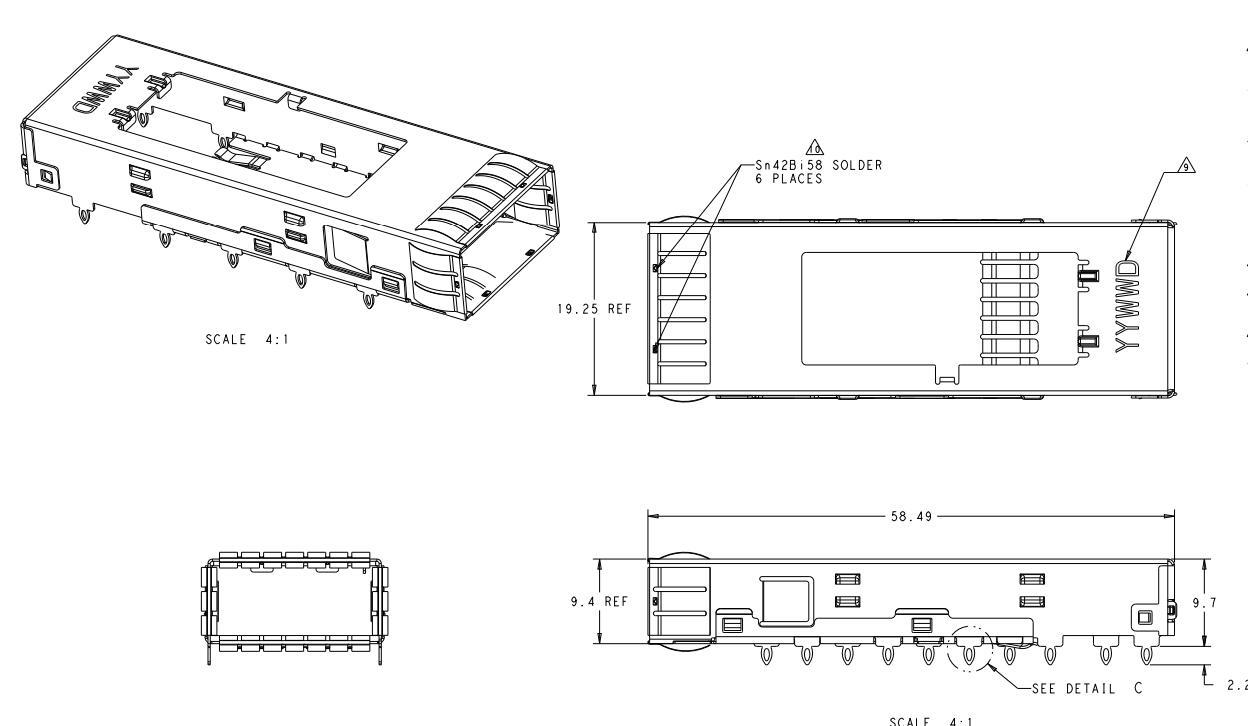

QSFP, Cage, 1 x 1, Internal/External EMI Springs, Standard, 1 Port, Cable-to-Board, Printed Circuit Board, Signal
| Part Number | 2170519-1 | Part Status | Active |
| Connector Style | Cage | Connector Type | QSFP |
| Number of Positions | - | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x1 Ports | Number of Ports | 1 |
| Data Rate (Max)(Gb/s) | - | Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| Circuit Application | Signal | EMI Containment Feature Type | Internal/External EMI Springs |
| Included Lightpipe | Yes | Cage Material | Nickel Silver |
| PCB Thickness (Recommended) | 1.45mm[.057in] | Tail Length | 2.2mm[.086in] |
| Included Lightpipe | Yes | Cage Material | Nickel Silver Alloy |
| PCB Thickness (Recommended) | 1.8mm[.07in] | Tail Length | 1.5mm[.059in] |
