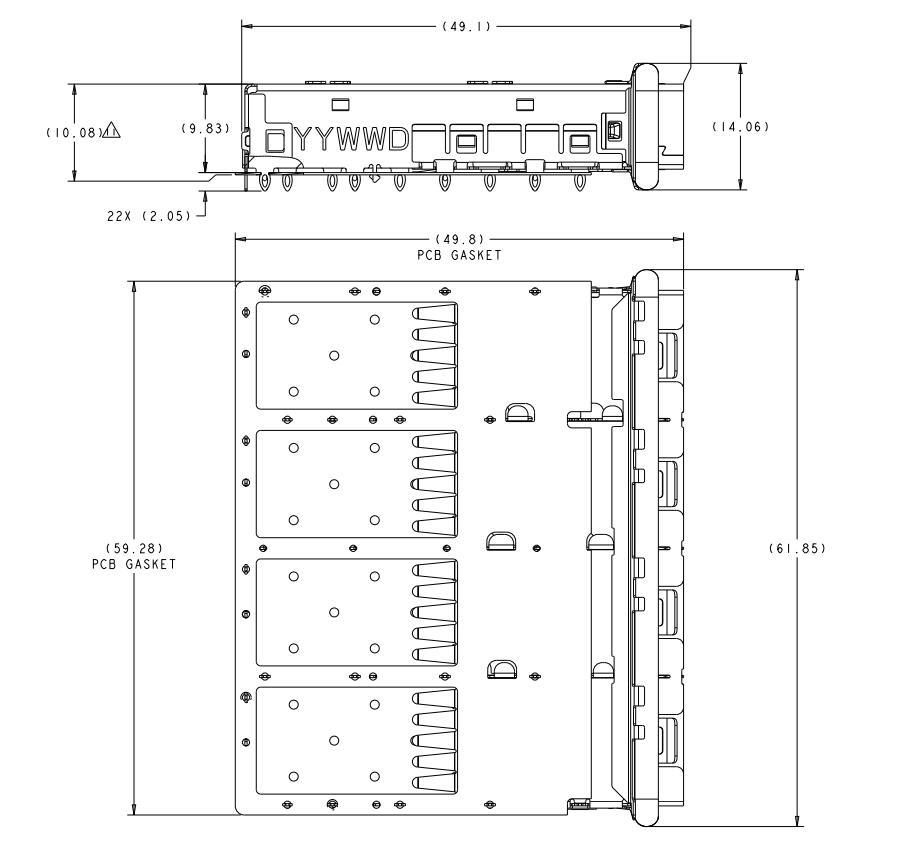

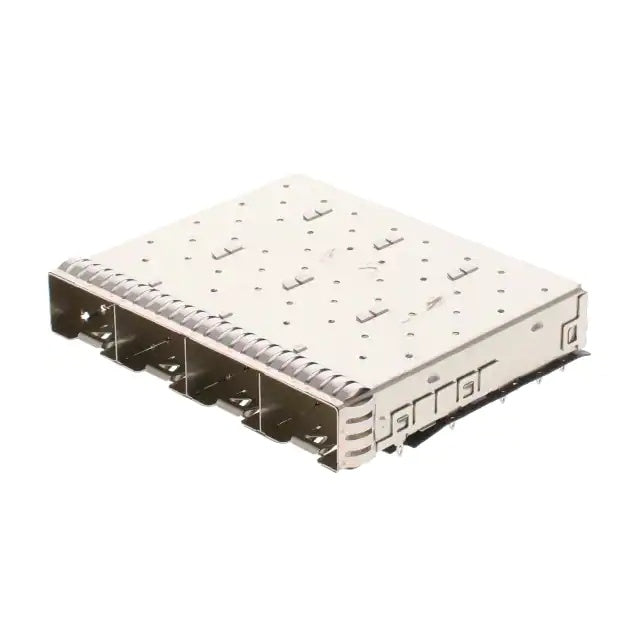

zSFP+, Cage Assembly, Data Rate (Max) 28 Gb/s, Elastomeric Gasket, EMI Enhanced, 1 x 4, None, Through Hole - Press-Fit Mount, 4 Port
Technical Specifications
| Part Number | 2198722-1 | Part Status | Active |
| Connector Style | Cage, Ganged (1 x 4) | Connector Type | SFP+ |
| Data Rate (Max)(Gb/s) | 28 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x4 Ports | Number of Ports | 4 |
| Number of Rear EONs per Port Column | - | Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| Circuit Application | Signal | EMI Containment Feature Type | External Springs |
| Included Lightpipe | No | Cage Material | Nickel Silver Alloy |
| PCB Thickness (Recommended) | 3mm[.118in] | Tail Length | 2.05mm[.081in] |
