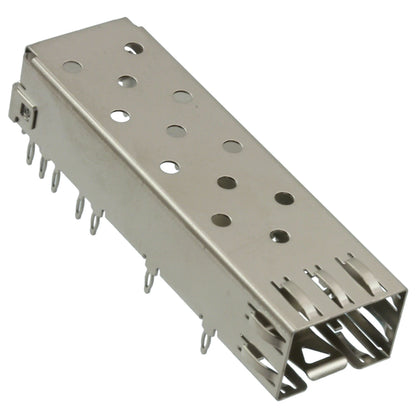

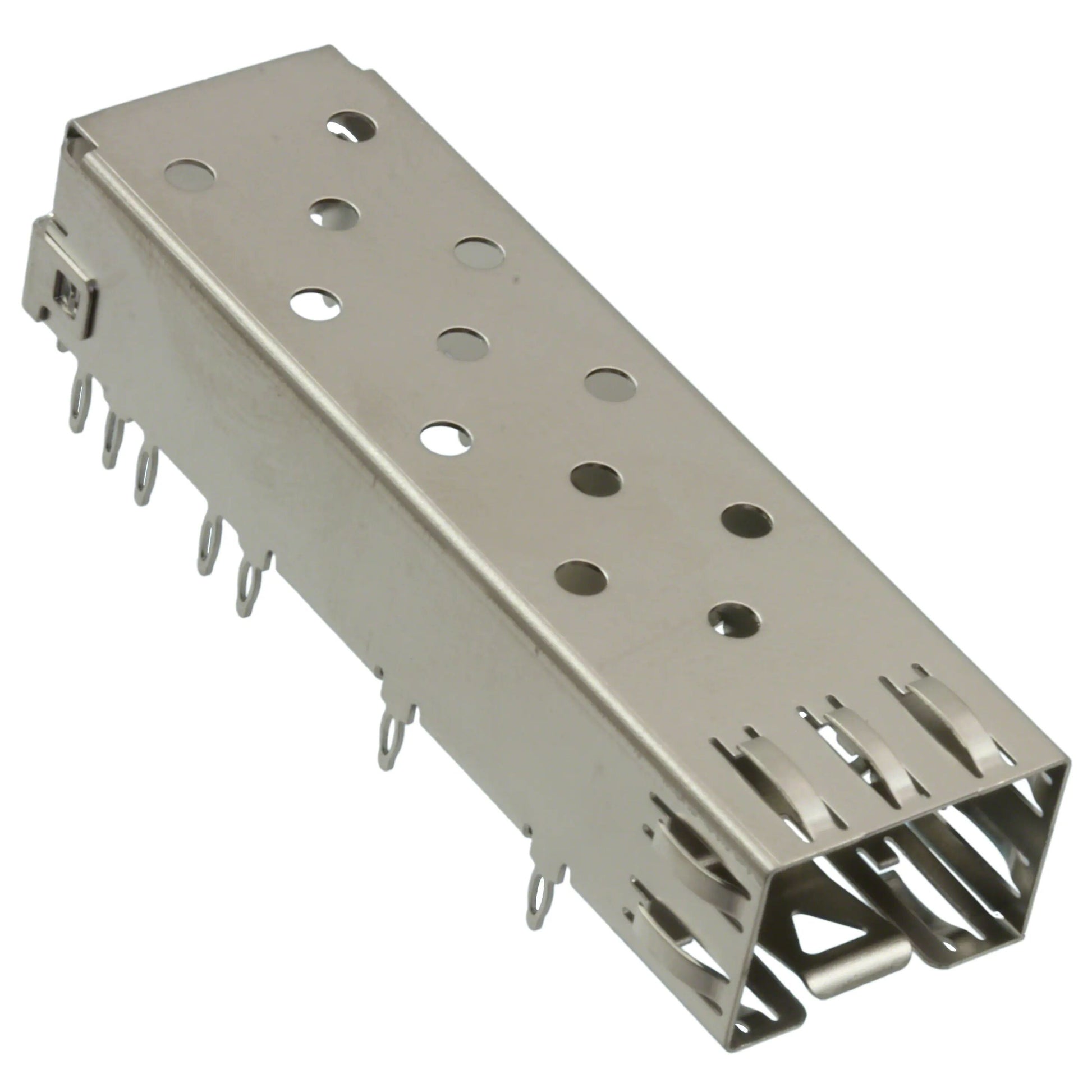

The 2227023-1 is an ultra-ruggedized, aerospace-grade 1x1 SFP Cage Assembly, engineered to provide superior structural housing and aggressive electromagnetic containment for pluggable I/O transceivers. While mechanically compliant with standard SFP, SFP+, and zSFP+ form factors, this specific receptacle is electrically targeted for highly stable 4 Gb/s data rates. This makes it the definitive structural bridge for integrating legacy 4G Fibre Channel (4GFC) Storage Area Networks (SAN) or legacy telecom optics into modern, standardized chassis designs without requiring customized faceplate architecture.

A defining mechanical advantage of the 2227023-1 is the pairing of its rigid Stainless Steel body with External EMI Springs. Stainless steel is explicitly selected for its exceptional mechanical yield strength, ensuring the cage resists structural deformation and port warping during severe transceiver insertion/extraction torque. To compensate for this extreme rigidity, external copper-alloy spring fingers actively compress against the chassis faceplate. In mixed-vendor deployments where sheet metal bezels exhibit unpredictable stamping tolerances, these springs absorb the structural variance. This establishes a continuous, low-impedance 360-degree grounding path, containing high-frequency RF leakage to ensure strict FCC/CE compliance. Intentionally configured Without a Lightpipe, this minimalist design is the preferred architecture for low-clearance front panels, headless edge devices, or systems where port diagnostics are managed entirely via remote software.

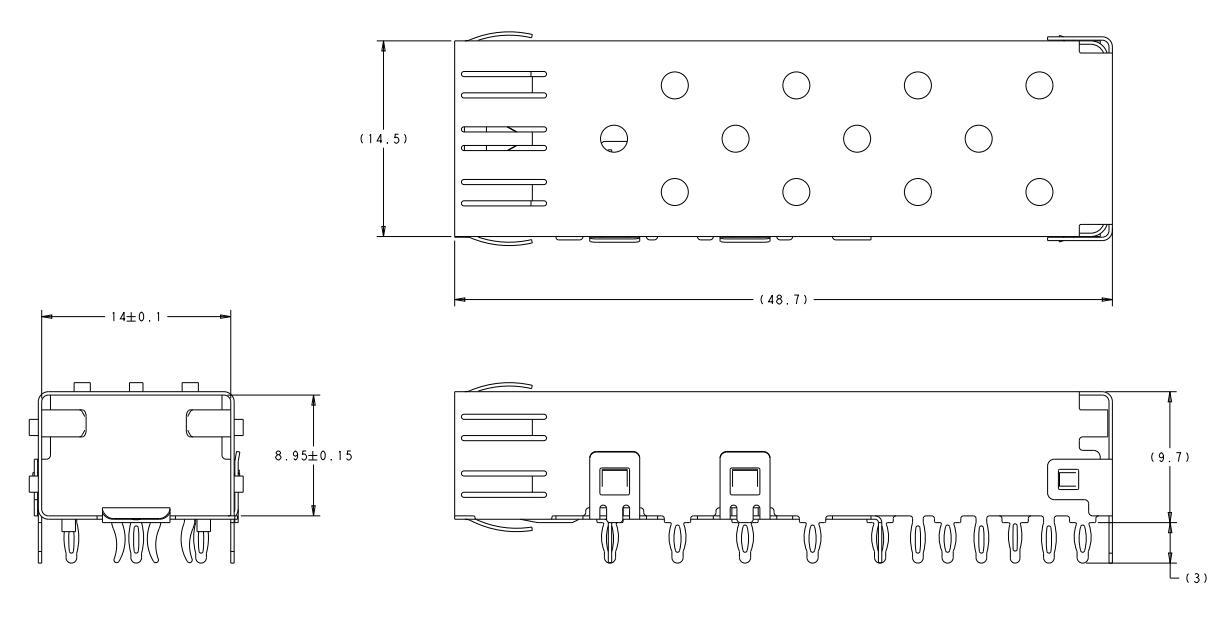

Mechanically, the cage is tailored for high-yield, solderless manufacturing utilizing a Through-Hole Press-Fit termination. By eliminating the extreme thermal stress associated with wave soldering, the press-fit architecture preserves the plating integrity and impedance of adjacent high-speed signal vias. Notably, this model features an extended 3.0mm tail length paired with a standard 1.5mm recommended PCB thickness. This specific dimensional ratio guarantees that the EON (Eye-of-Needle) pins fully engage the entire depth of the PCB via, maximizing mechanical retention pull-force.

Built to survive unprecedented environmental stress, the 2227023-1 boasts an extreme Operating Temperature Range of -55°C to +105°C. This capability makes it the ultimate housing solution for unconditioned outdoor telecom base stations, ruggedized IoT edge gateways, and heavy-industrial control switches subjected to severe thermal loading.
