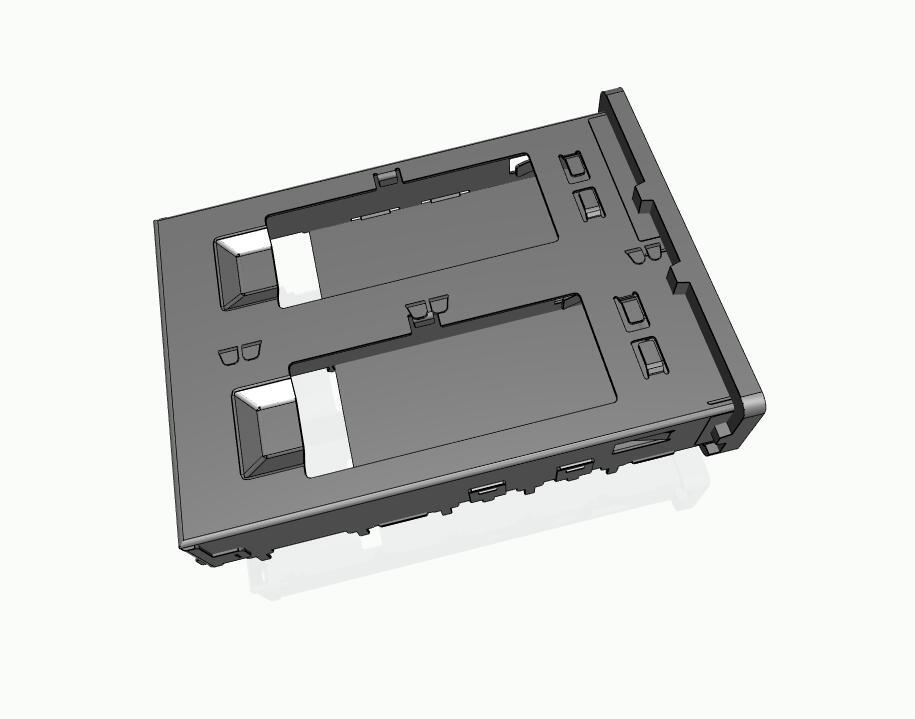

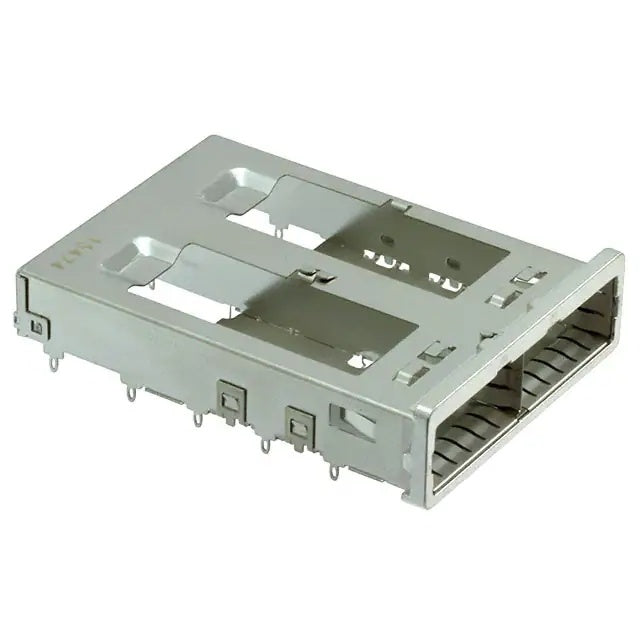

QSFP28, Cage, 1 x 2, Customer Applied Gasket, Standard, 2 Port, 1 Rear EONs per Port Column, Cable-to-Board
| Part Number | 2227104-1 | Part Status | Active |
| Connector Style | Cage, Ganged (1 x 2) | Connector Type | QSFP28 |
| Number of Positions | - | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x2 Ports | Number of Ports | 2 |
| Number of Rear EONs per Port Column | 1 | Data Rate (Max)(Gb/s) | - |
| Operating Temperature Range | - | Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| Circuit Application | Signal | EMI Containment Feature Type | Customer Applied Gasket |
| Included Lightpipe | No | Cage Material | Nickel Silver |
| PCB Thickness (Recommended) | 1.45mm[.057in] | Tail Length | 2.2mm[.086in] |
