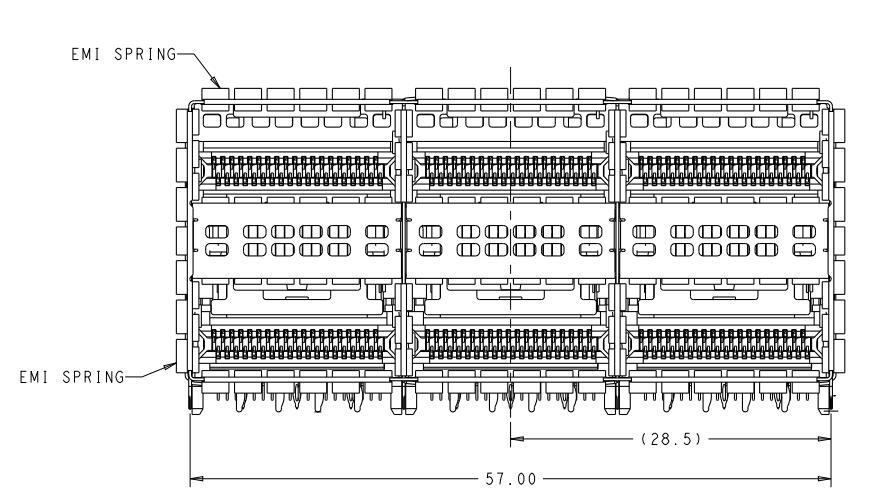

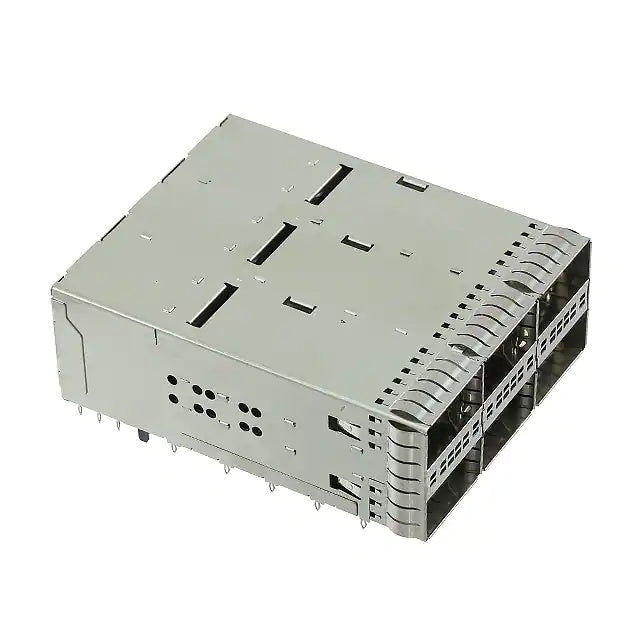

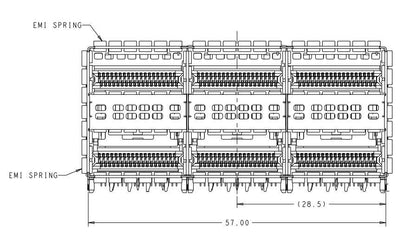

zQSPF+,Cage Assembly with Integrated Connector, 2 x 3, Internal/External EMI Springs, Standard, Data Rate (Max) 28 Gb/s
| Part Number | 2227671-1 | Part Status | Active |
| Connector Style | Receptacle with Cage, Ganged (2x3) | Connector Type | ZQSFP+ |
| Number of Positions | 228 (38 x 6) | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 2x3 Ports | Number of Ports | 6 |
| Number of Rear EONs per Port Column | 3 | Data Rate (Max)(Gb/s) | 28 |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | Thermally Enhanced |
| Circuit Application | Signal | EMI Containment Feature Type | Internal/External EMI Springs |
| Included Lightpipe | Yes | Cage Material | Nickel Silver Alloy |
| PCB Thickness (Recommended) | 1.57mm[.062in] | Tail Length | 2mm[.079in] |
Contact us.
For any inquiries, please feel free to contact us. We reply within 24 hours.
📧 Email: una@f-tone.com
📱 Mobile / WhatsApp / WeChat: +86 177 6116 3895
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
