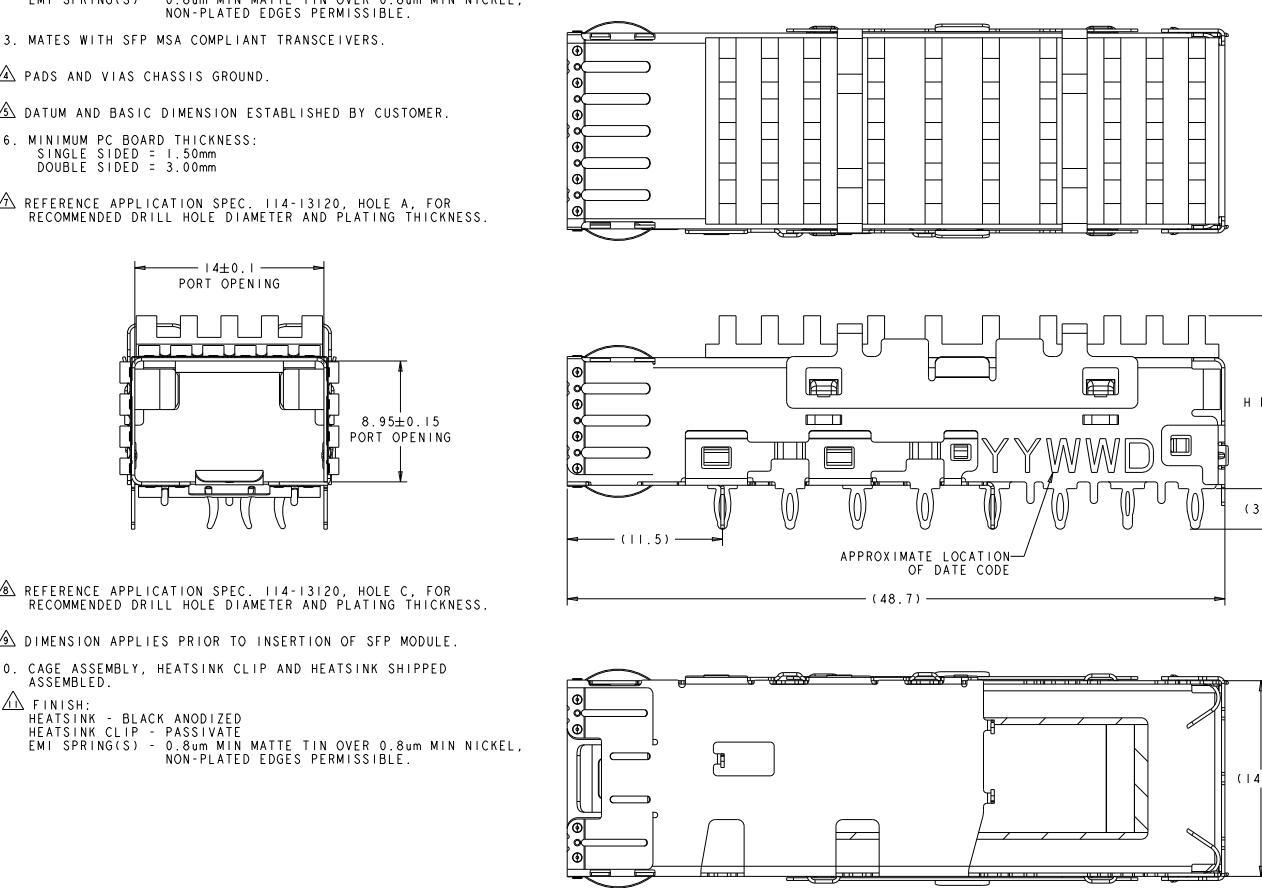

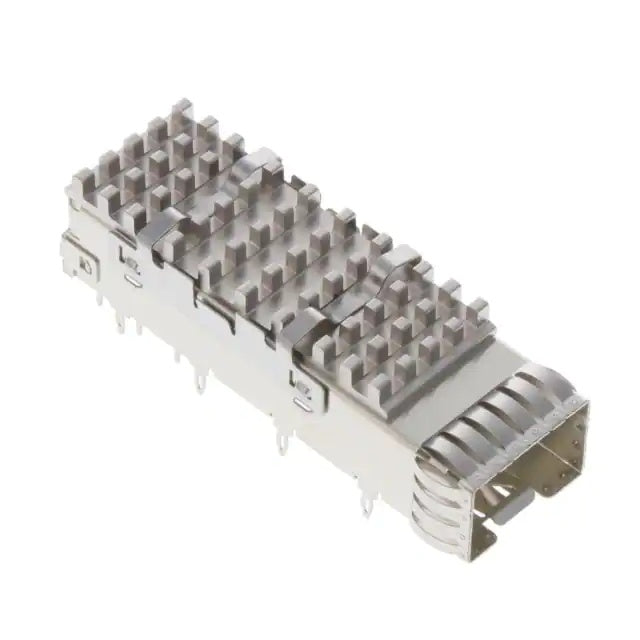

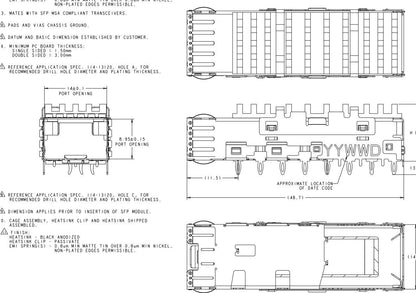

TE 2291634-1 1x1 SFP+ Cage Assembly with 13.5mm Pin Heat Sink
Engineered to resolve the most demanding thermal and signal integrity challenges in next-generation telecommunications and high-density data center infrastructure, the TE 2291634-1 is a premium 1x1 (single-port) SFP+ cage assembly. Designed to envelop and protect high-speed Small Form-factor Pluggable Plus (SFP+) optical transceivers and direct-attach copper (DAC) cables, this highly durable mechanical receptacle reliably supports data transmission rates up to 16 Gb/s. To aggressively combat the intense localized heat generated by high-frequency 10GbE and 16G Fibre Channel optics, this cage integrates a massive, precision-engineered 13.5mm [0.531 in] pin heat sink, providing superior omnidirectional passive thermal dissipation.
Constructed from a premium Nickel Silver Alloy, this cage assembly delivers intrinsic structural rigidity and outstanding resistance to oxidation across an extreme military-grade temperature range of -55°C to 105°C. Utilizing a highly reliable solderless Through Hole Press-Fit mounting mechanism, the 2291634-1 provides hardware architects with a mission-critical physical layer housing for core routers, ruggedized edge computing enclosures, and high-performance networking chassis.
Advanced Thermal Management (13.5mm Pin Heat Sink)
As network port speeds scale up to 16 Gb/s, optical transceivers generate significant thermal loads. Traditional linear fin heat sinks depend heavily on specific unidirectional airflow. The 2291634-1 addresses complex thermal environments through its advanced, high-profile pin architecture.
- Omnidirectional Pin Heat Sink: The integrated 13.5mm pin-style heat sink allows cooling air to flow through the thermal array from any direction. This makes it highly advantageous for complex chassis designs where airflow is turbulent, non-linear, or shared among multiple high-heat components.
-
Riding Heat Sink Design: The heat sink assembly maintains direct, spring-loaded physical contact with the inserted SFP+ module. This maximizes thermal transfer away from the optical transceiver, preventing thermal throttling, reducing bit error rates, and extending the lifespan of sensitive internal PHY components.
Typical Applications
Combining 16 Gb/s bandwidth support, massive omnidirectional pin-style thermal management, and extreme temperature resilience, the 2291634-1 SFP+ cage assembly is the definitive physical layer solution for high-performance hardware:
- Data Center Infrastructure: 10GbE / 16GFC Top-of-Rack (ToR) switches, aggregation routers, and high-density blade servers supporting Belly-to-Belly configurations with turbulent internal airflow.
- Telecommunications & Edge: 5G baseband processing units (BBUs), optical transport network (OTN) equipment, and ruggedized outdoor telecom cabinets lacking active climate control.
- Storage Area Networks (SAN): 16G Fibre Channel enterprise storage arrays and high-throughput host bus adapters (HBAs) requiring robust, multi-directional thermal dissipation.
- Defense & Aerospace: Mission-critical communication hubs requiring military-grade temperature tolerances (-55°C to 105°C) and vibration-resistant press-fit mountings.
Technical Specifications
| Part Number | 2291634-1 | Part Status | Active |
| Connector Style | Cage with Heat Sink | Connector Type | SFP+ |
| Data Rate (Max)(Gb/s) | 16 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x1 Ports | Number of Ports | 1 |
| Number of Rear EONs per Port Column | - | Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | SFP+ Stacked Belly-to-Belly |
| Circuit Application | Signal | EMI Containment Feature Type | Internal/External EMI Springs |
| Included Lightpipe | NO | Cage Material | Nickel Silver Alloy |
| PCB Thickness (Recommended) | 1.5mm | Tail Length | 3 mm |
Contact us.
For any inquiries, please feel free to contact us. We reply within 24 hours.
📧 Email: una@f-tone.com
📱 Mobile / WhatsApp / WeChat: +86 177 6116 3895
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
