2299940-5 TE ZQSFP+ Receptacle With Cage Ganged (2x1) with Heat Sink Connector Included Lightpipe

2299940-5 TE ZQSFP+ Receptacle With Cage Ganged (2x1) with Heat Sink Connector Included Lightpipe

View full details

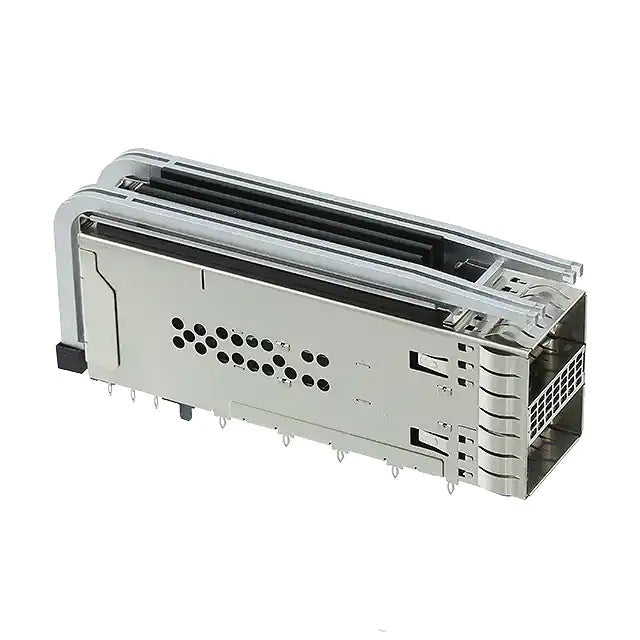

zQSPF+, Cage Assembly with Integrated Connector, 2 x 1, Internal/External EMI Springs, Included Lightpipe, zQSFP+/QSFP28



    Part Number 2299940-5 Part Status Active
    Connector Style Receptacle with Cage, Ganged (2x1) with Heat Sink Connector Type ZQSFP+
    Number of Positions 76 (38 x 2) Mounting Type Through Hole, Right Angle
    Termination Press-Fit Features EMI Shielded
    Heat Sink Height 6.77mm[.266in] Pluggable I/O Product Type Cage Assembly with Integrated Connector
    Port Matrix Configuration 2x1 Ports Number of Ports 2
    Number of Rear EONs per Port Column 3 Data Rate (Max)(Gb/s) 25
    Operating Temperature Range -40 – 85°C Pluggable I/O Applications Thermally Enhanced
    Circuit Application Signal EMI Containment Feature Type Internal/External EMI Springs
    Included Lightpipe Yes Cage Material Nickel Silver
    PCB Thickness (Recommended) 1.59mm[.064in] Tail Length 2mm[.079in]
