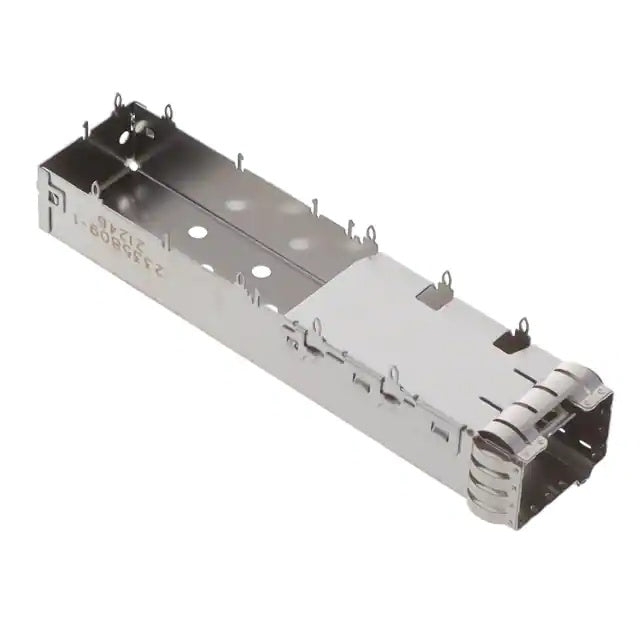

SFP-DD Cage Assembly, 1×1, 15-Position, Press-Fit Through-Hole — Compatible with TE 2335809-1
F-tone’s FT-SFPDD-CAGE-15PF is a high-speed pluggable I/O cage assembly engineered as a drop-in compatible replacement for TE Connectivity part number 2335809-1. Designed to the SFP-DD (Small Form Factor Pluggable Double Density) MSA footprint, it supports 15-position SFP-DD transceivers and SFP56-class applications up to 50 Gbps per port lane grouping, making it ideal for switches, NICs, routers, and optical line cards that require doubled port density in the same front-panel pitch as legacy SFP/SFP+.
Key Features
Form factor: 1×1 SFP-DD cage assembly, 16.25 mm centerline, double-density layout
Positions: 15-position receptacle guide with press-fit tail array
Termination: Through-hole, right-angle press-fit (solder-free PCB mounting)
EMI performance: Integrated internal and external EMI spring fingers (copper alloy, nickel-plated) for robust shielding and low insertion loss
Housing: 0.25 mm stainless-steel cage, durable and warpage-resistant
Thermal range: −55 °C to +85 °C operating, suitable for telecom-grade environments
Compliance: SFP-DD MSA mechanical mating, RoHS-compliant, press-fit hole pattern references TE application spec 114-60027
Options: No heat sink, no light pipe — matches 2335809-1 baseline configuration
Benefits for System Designers
1.Pin-for-pin and footprint compatible with TE 2335809-1 — direct substitution on existing layouts with no re-spin
2.Press-fit THR termination enables lead-free reflow profiles, reduces thermal stress on PCB, and supports automated pick-and-place with cage press-in tooling
3.Tight tolerance stainless cage guarantees proper module seating, hot-swap repeatability, and EMI containment across multiple insertion cycles
4.Cost-optimized supply from F-tone for volume production, with full mechanical drawings, STEP models, and press-fit insertion guidelines available
Typical Applications：
1.25G/50G/100G Ethernet line cards (SFP28 / SFP56 DD)
2.Data center top-of-rack switches and fabric extenders
3.Telecom access and aggregation equipment
4.Test and measurement platforms requiring SFP-DD pluggable fronts
Technical Specifications
| Part Number |
2335809-1 |
Part Status | Active |
| Connector Style | Cage with Heat Sink | Connector Type | QSFP-DD (Double Density) |
| Mounting Type | Through Hole | ||
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 1x1 Ports | Number of Ports | 1 |
| Number of Rear EONs per Port Column | 1 | Heat Sink Height | 13.5mm[.531in] |
| Heat Sink Style | Networking | Cage Material | Stainless Steel |
| Circuit Application | Signal | Included Lightpipe | NO |
