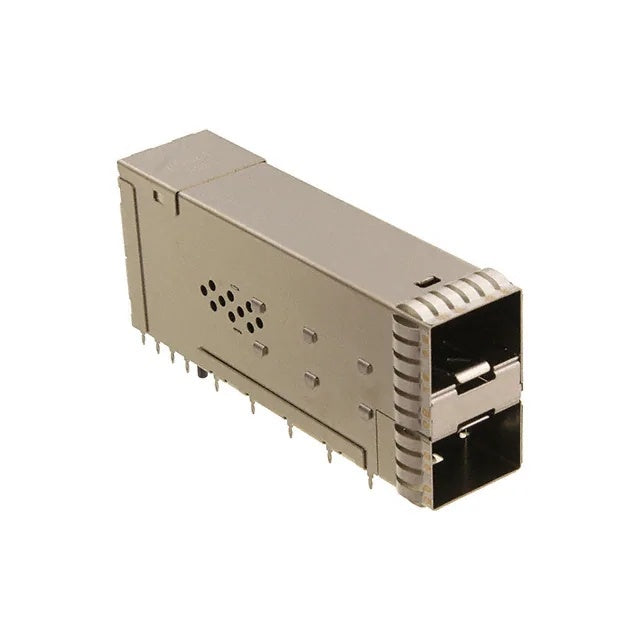

zSFP+, Cage Assembly with Integrated Connector, Data Rate (Max) 56 Gb/s, EMI Springs, SFP28 / SFP56, 2 x 1, Integrated Lightpipes, SFP56
Technical Specifications
| Part Number | 2349202-7 | Part Status | Active |
| Connector Style | Receptacle with Cage, Ganged (2x1) | Connector Type | zSFP+ |
| Cage Type | Stacked | Pluggable I/O Product Type | Cage Assembly with Integrated Connector |
| Integrated Lightpipe | Yes | Form Factor | zSFP+ Stacked (SFP56) |
| Data Rate (Max)(Gb/s) | 56 | Mounting Type | Through Hole, Right Angle |
| Termination | Press-Fit | Features | EMI Shielded |
| Port Matrix Configuration | 2x1 Ports | Number of Ports | 2 |
| Number of Positions | 40 (20 x 2) | Connector Mounting Type | Board Mount |
| Operating Temperature Range | -55 – 105°C | Pluggable I/O Applications | zSFP+ Thermally Enhanced |
| Circuit Application | Signal | EMI Containment Feature Type | EMI Springs |
| Included Lightpipe | YES | Cage Material | - |
| PCB Thickness (Recommended) | - | Tail Length | - |
| Centerline (Pitch) | .6mm[.018in] |
