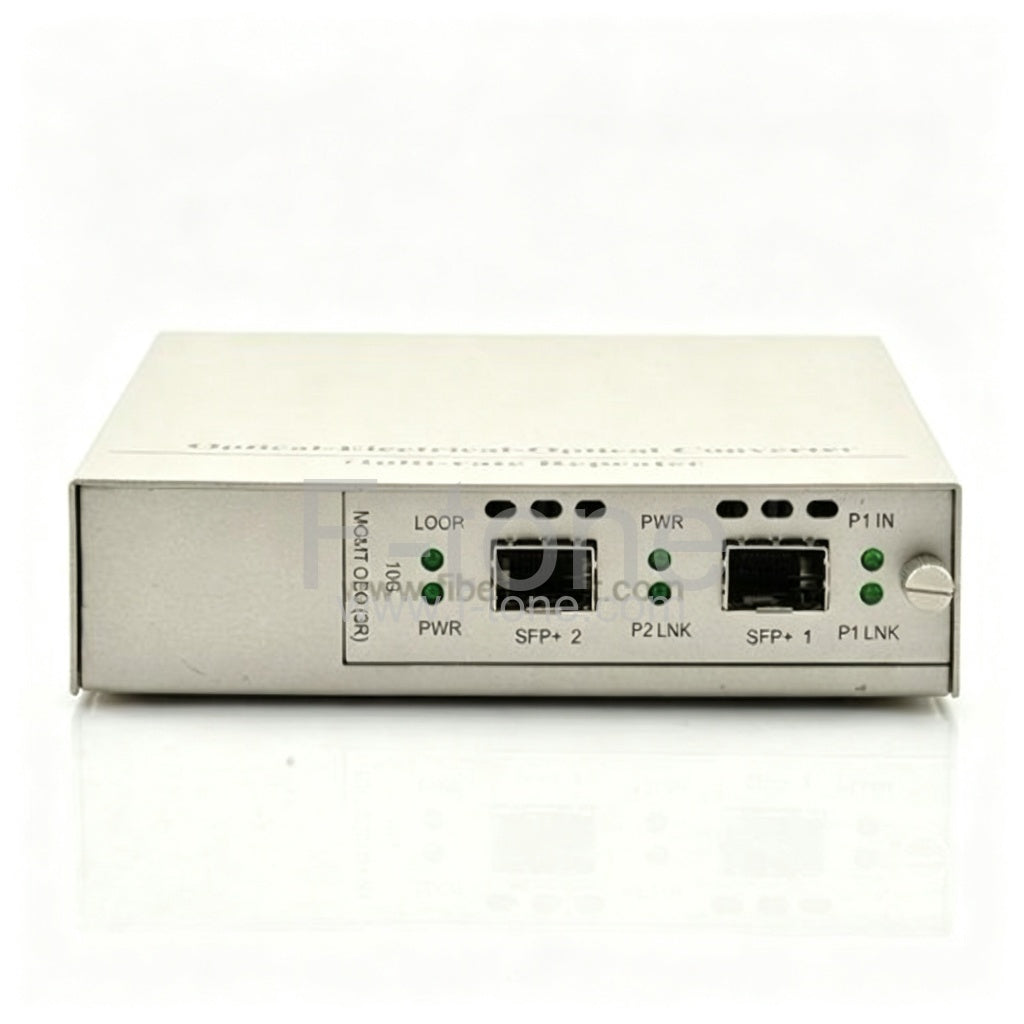

Part Number: 2P-8G-3R-SS-FTOEO-2U
SFP+ to SFP+ 2 ports 10G WDM Transponder OEO Converter 8.5G~11.7G w/full 3R Support
8.5G~11.7G OEO Converter (3R Repeater) is connection between fiber to fiber 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance transmission.
OEO for network backbone(SAN, LAN, MAN). Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet etc.
Can be applied in Telecommunication room, R&D laboratory, Data center, and etc. 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion. Support Loopback.
Key Features
- Support Loopback
- Support Jumbo Frame
- Transparent Transport and very low delay
- Support ITUT prescribed DWDM/CWDM wavelength
- Support hot plugging
- Support 2U Rack (16 channel) and standalone use
- Full State Led display
- Easy installation
Specifications
| Performance Data | Technical Indexes |
|---|---|
| Equipment function | 3R Repeater |
| Transmission Speed | 8.5Gb/s-11.7Gb/s |
| Protocols | 8.5G Fiber Channel |
| SONET OC-192, SDH STM-64 (9.95Gbps) | |
| 10G WAN (10Gbps) | |
| 10G LAN (10.31Gbps) | |
| OTN OTU-2 (G.709) (10.70Gbps) | |
| 10G LAN with 255/237 FEC coding (11.09Gbps) | |
| 10G Fiber Channel (11.32Gbps) | |
| 10G POS | |
| Interface Type | Type A : XFP to XFP |
| Type B : XFP to SFP+ | |
| Type C : SFP+ to XFP | |
| Transmission Distance | XFP module: Up to 80Km |
| SFP+ module: up to 80km | |
| Maximum Packet | 14,880,950/S |
| Forwarding Rate | |

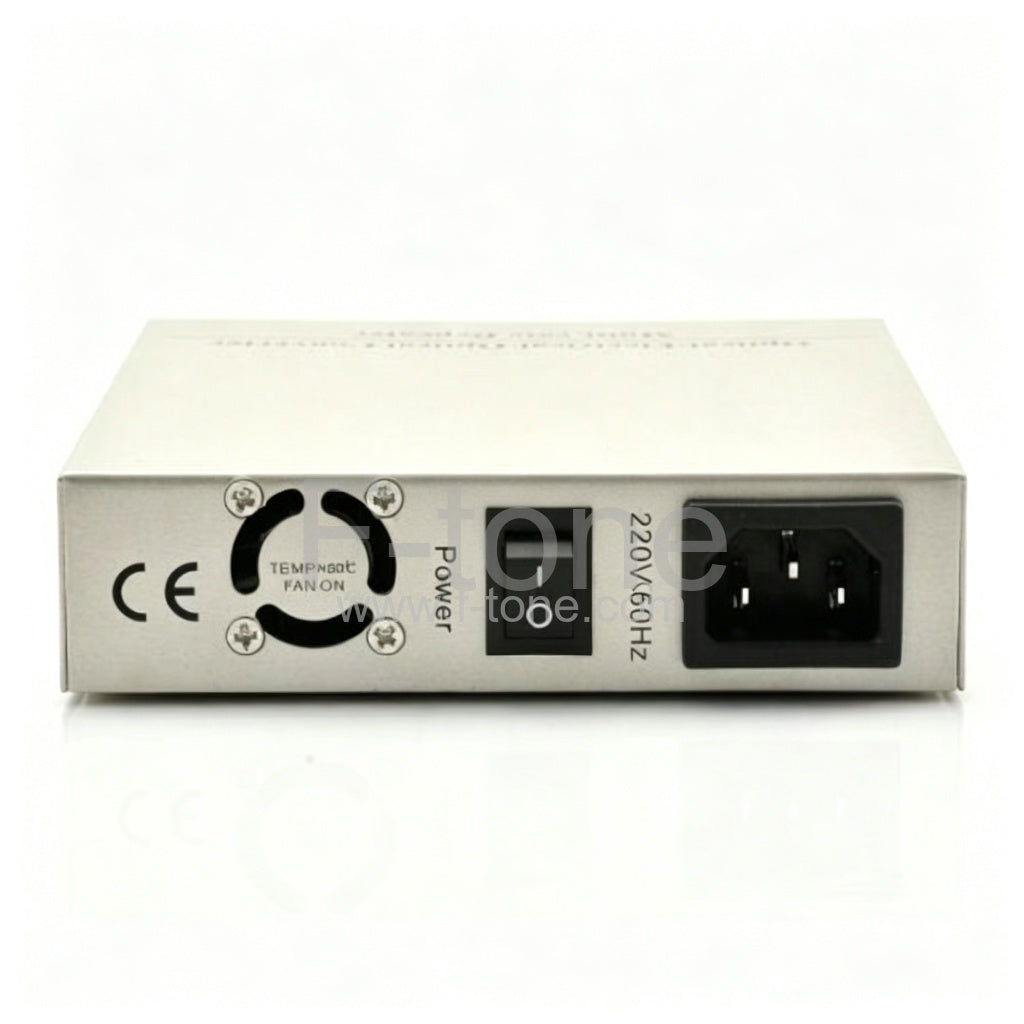

| power requirement | Rack-mountable : AC 85 ～ 220V OR DC -48V |
| Standalone: AC 110~220V OR -48V | |
| Power consumption: ≤4W | |
| Work Environment | Operating Temp: 0~ 50 ℃ |
| Storage Temp: -10~ 70 ℃ | |
| Humidity: 5%~90% （ non-condensing ） | |
| Dimension | Card : 115mm （ W ） × 78mm （ D ） |
| Standalone : 156mm （ W ） × 128mm （ D ） × 32mm （ H ） |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
