| Parameter | Index Requirement |
| Insertion Loss |
≤0.6dB
|
| Mechanical life |
≥500times
|
| Working temperature |
-40℃~+85℃
|
| Waterproof Level |
IP67
|
| Maintenance force of optical cable components |
≥500N
|

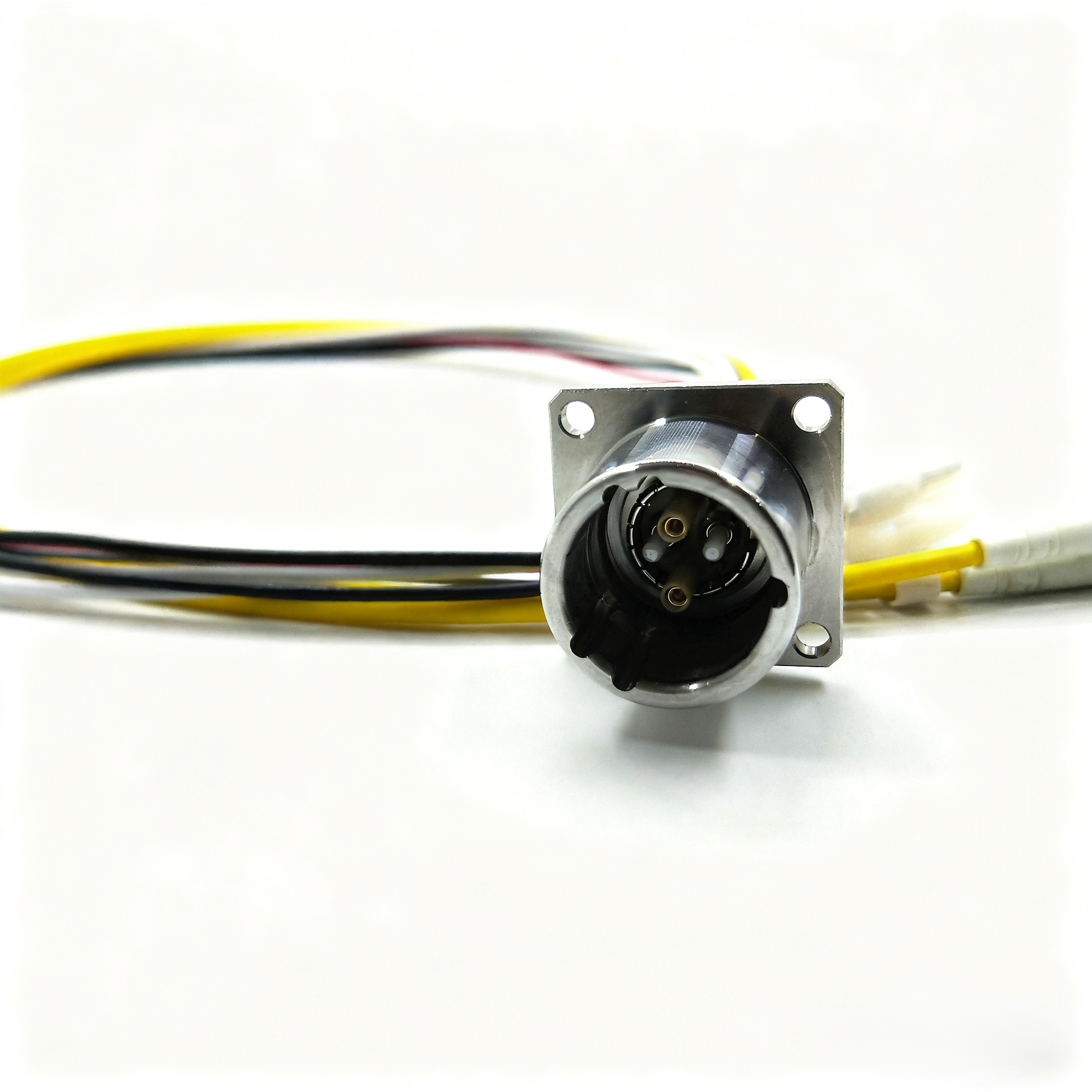

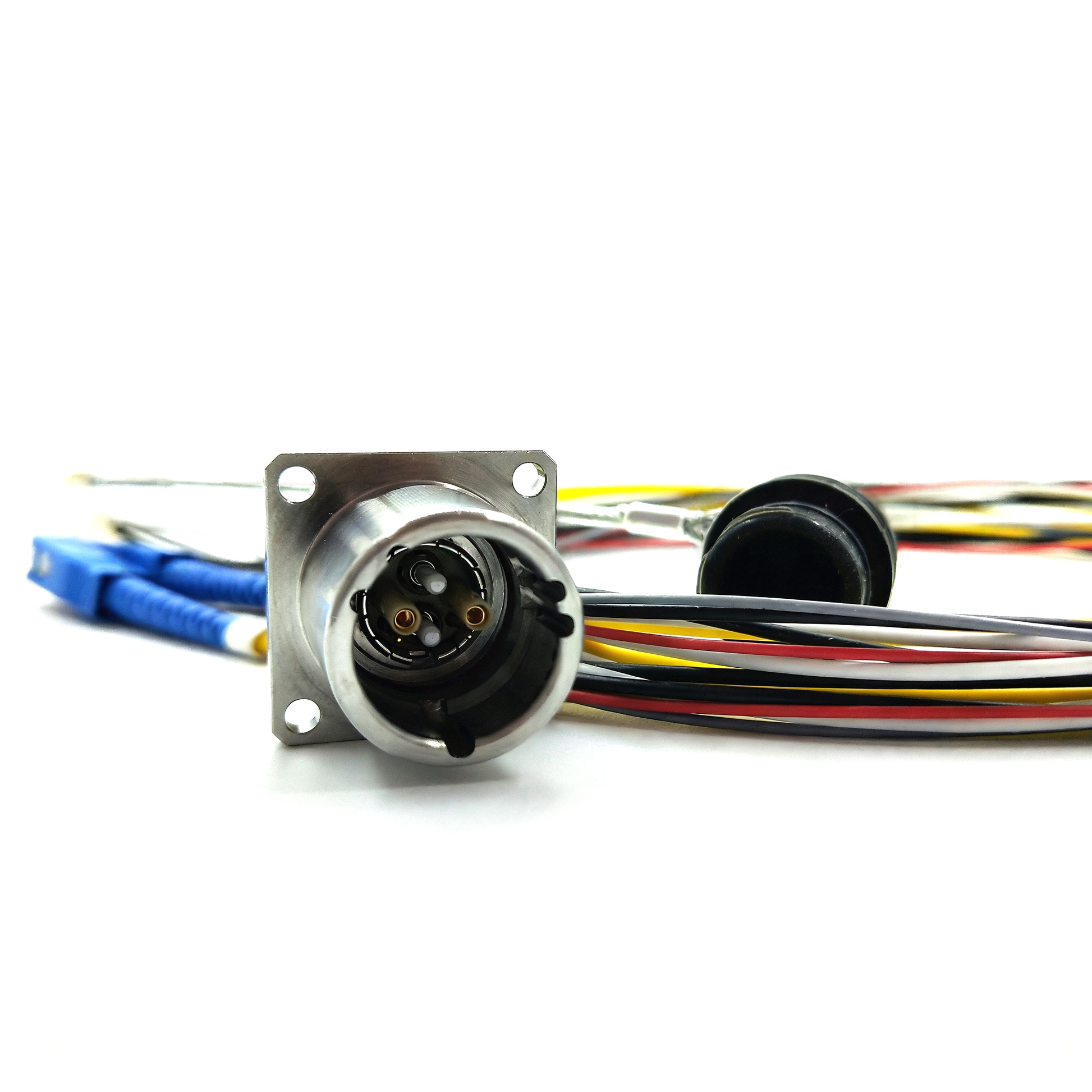

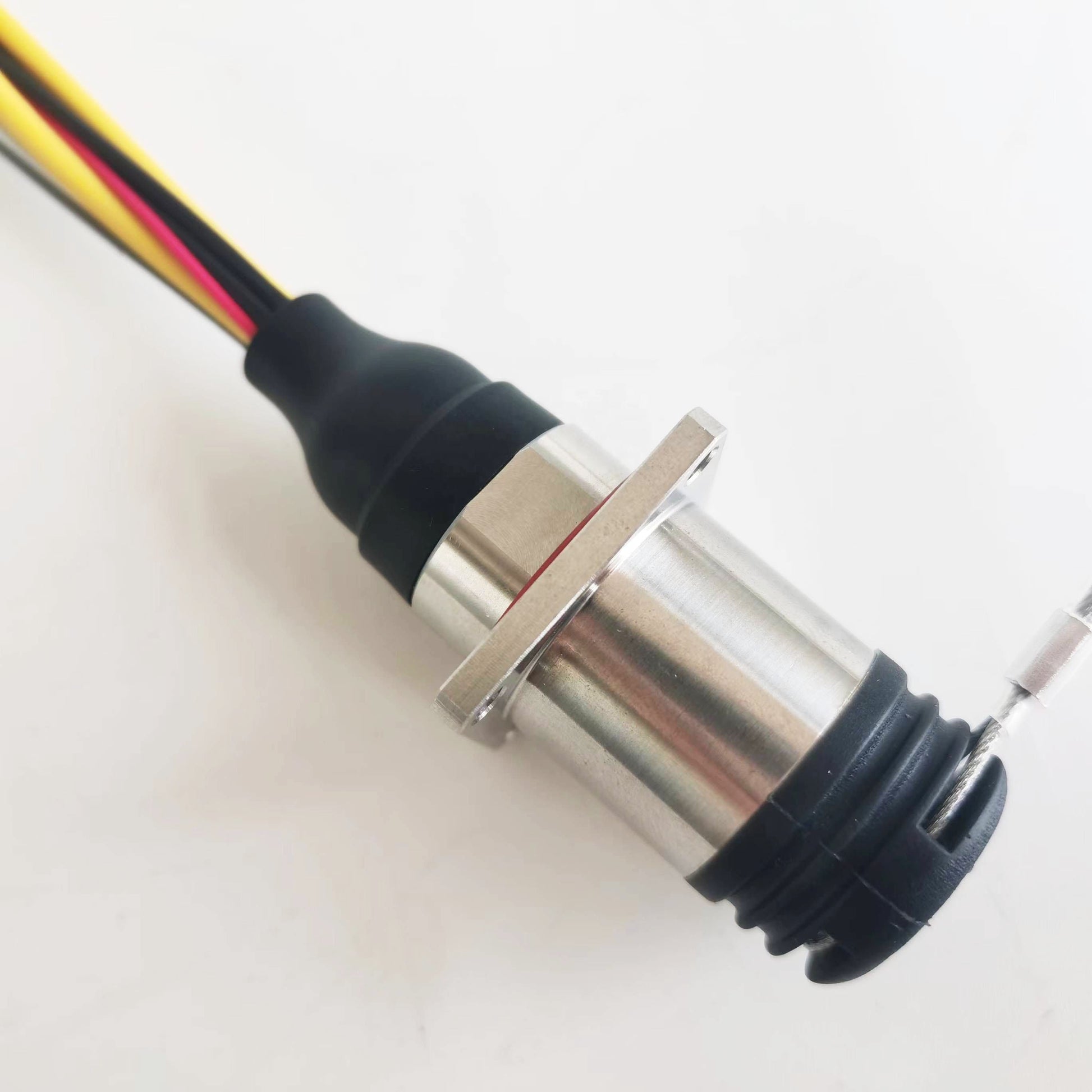

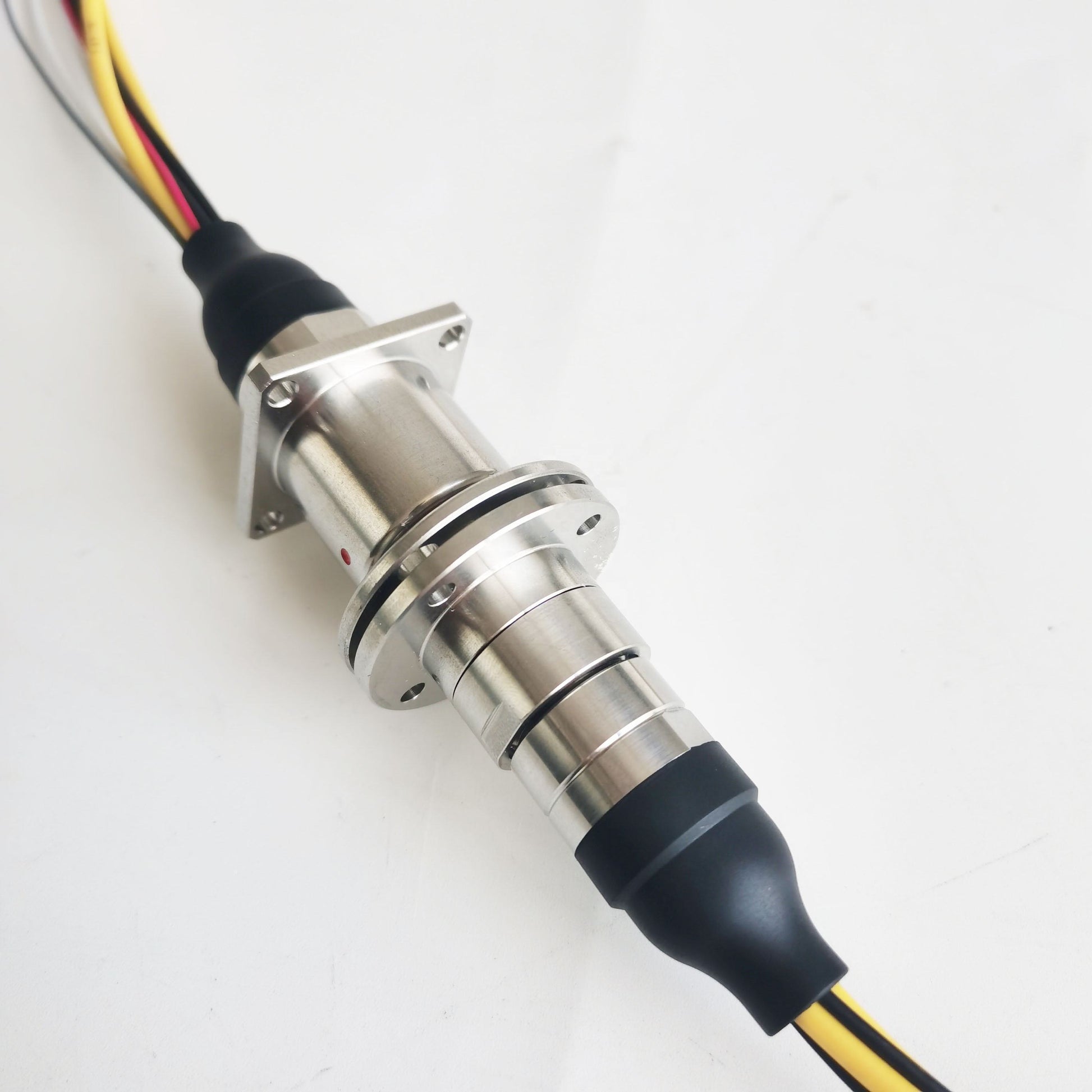

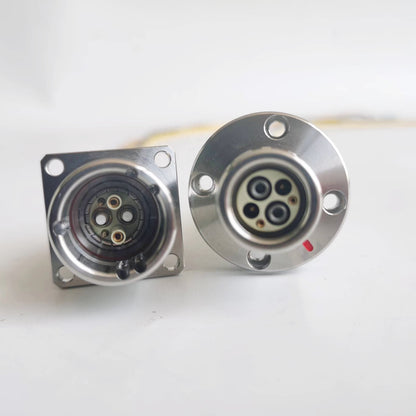

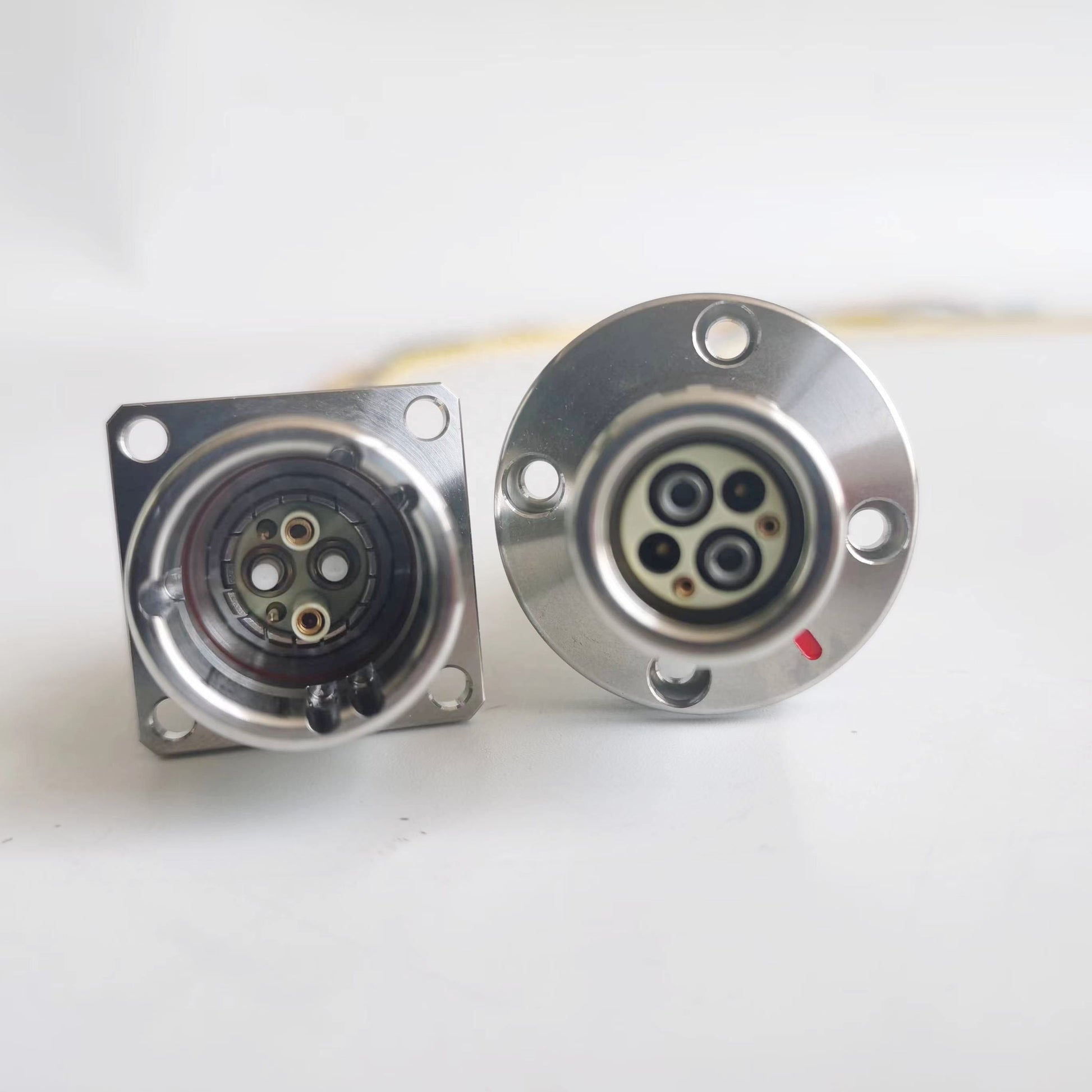

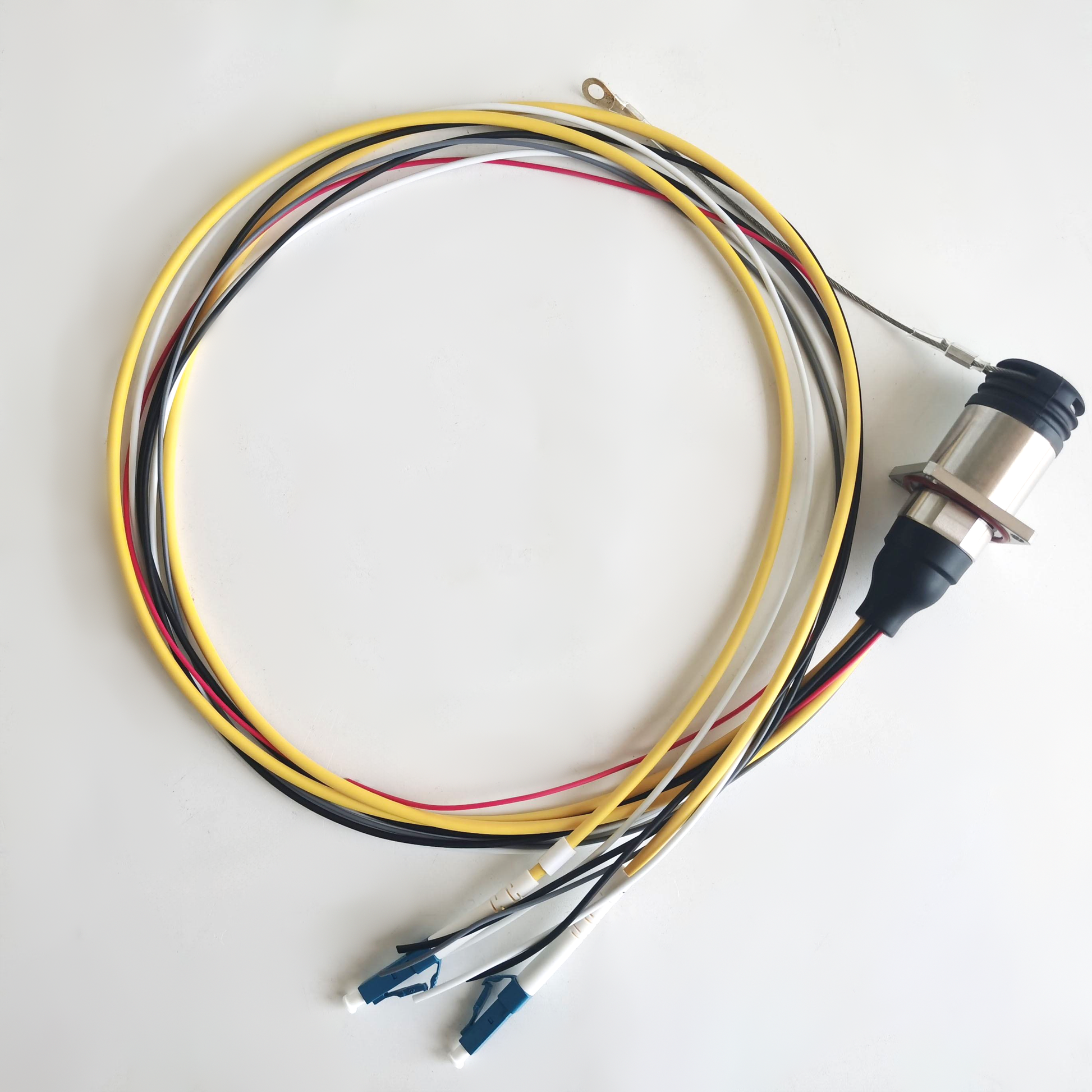

3K.93C HDTV Broadcasting and Camera SMPTA Hybrid Fiber Cable Connector EDW Socket FXW Plug Assemblies
Key attributes
| Type | Connector |
| Application | Audio & Video |
| Gender | Other |
Other attributes
| Place of Origin | Cheng Du, China |
| Brand Name | F-tone Networks |
| Model Number | EDW-DLC |
| Contact Material | Copper |
| Housing Material | Stainless Steel |
| IP Level | IP67 |
| Shape | Round |
| Material | Stainless Steel |
| MOQ | 2pcs |
| Usage | Video Equipment |
| Market | Global |
| Shipping by | Courier |
| Packing | Plastic Bag + Carton |
| Temperature Range | -40 ~+85 |
| Product Keywords | 3K.93C |
Packaging and delivery
| Selling Units: | Single item |
| Single package size: |
10X10X5 cm
|
| Single gross weight: |
1.000 kg
|
Product descriptions from the supplier
3K.93C Series Product Introduction
Our company specializes in the production of high-definition camera cable components, connectors Compatible with the original LEMO Switzerland 3K 93C connectors and CANARE connectors . The plug and pull self-locking system conforms to the standard of fast connection of SMPTE,ARIB and EBU at the same time. The opto-electronic composite cable consists of four power cords (20 AWG) for HDTV camera power supply, two signal control cords (24 AWG) and two single-mode fibers for video and audio transmission, the core of the composite cable runs through a 1.8 mm high-strength steel wire and is shielded by an integral braided mesh. The composite cable can be used for connecting different cameras for live broadcast of outdoor operations, the utility model can also be used in a fixing device of a control room connecting a studio camera. It is mainly used in outdoor live broadcast, stadium game broadcast, studio, concert, swimming pool, etc. .
PRODUCT PARAMETER
3K.93C series Projects connecting ways
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
