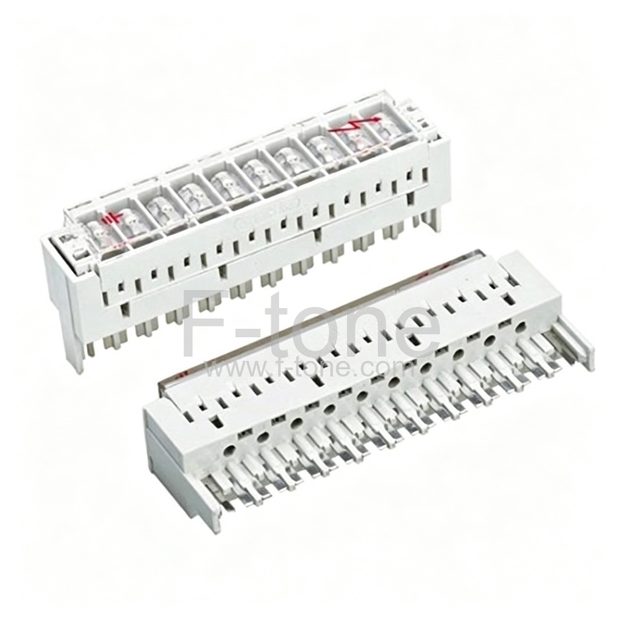

Part Number: 3P-SAD10P
3-Pole Surge Arrester Design 10 Pairs Terminals Protection Magaz
Description
Protection Magazine is mainly used for converter surge arrester protection
It is an effective apparatus for prevention of overvoltage and over current caused by the influence of the thunder and lighting over cable or circuit, or caused by the electric wires induction and short circuit.
Protector Magazine is widely applied in all kinds of distribution case and distribution frame, that adopt 10 pairs disconnection module.
Damage prevention caused by the thunder lighting and electric wires induction, self recovery without the maintenance or replacement.
Specifications
| Product Name | Protection Magazine w Surge Arrester |
|---|---|
| Surge Arrester Type | 3 Poles |
| Terminals | 10 Pairs |
| DC Breakdown Voltage | 230V (100V/s) |
| Impulse breakdown voltage | ≤ 800V(1kV/μ S) |
| Impulse discharge current | 10kA (8/20μ S) |
| AC discharge current | 10A (220V AC) |
| Insulation resistance | ≥ 100MΩ (100V DC) |
| Insulation protection performance | ≤ 10s(2A 220V) |
| Size | 112 x 22 x 43mm/4.4" x 0.87" x 1.7" (L*T*H) |
| Material | Plastic, Metal |
| Color | Off White |
| Weight | 78g |
| Package | 1 x Protection Magazine w 3 Pole Surge Arrester |
Note: F-tone provides various types of fiber optic tools which are very important in the fiber optic installation and maintenance works. There are fiber cable stripper, fiber cable slitter, crimping tool, fiber optic cutter, punch down tool, network pliers and so on. And we also provide some other fiber optic related tools, if you need or have some questions of this 3-Pole Surge Arrester Design 10 Pairs Terminals Protection Magaz, welcome to contact us for more details.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
