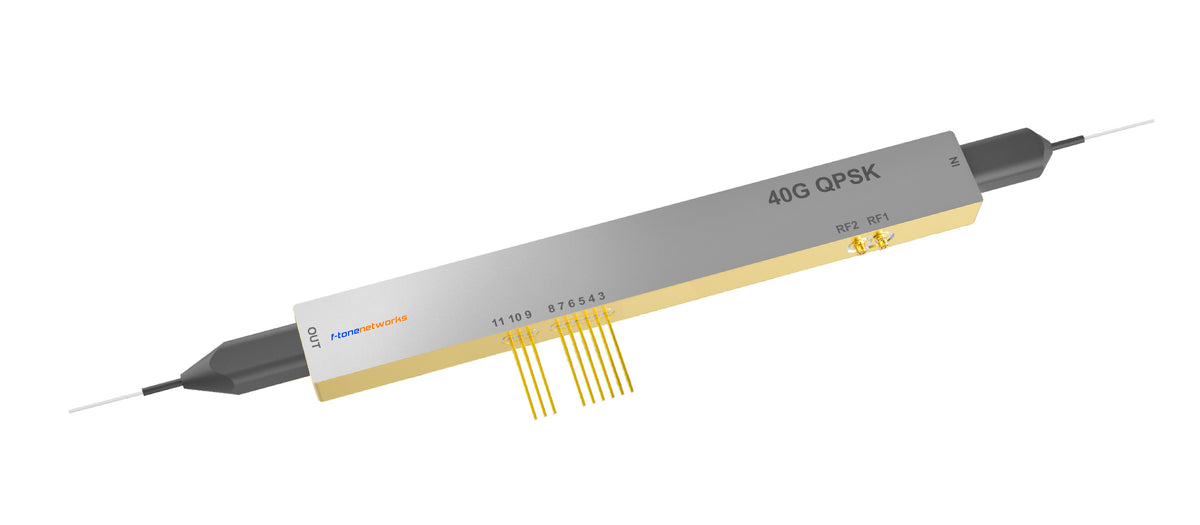

40 GHz IQ Modulator
The 40G-IQ-XT modulator design is based on a dual parallel structure of 2 Mach-Zehnder modulators embedded in a Mach-Zehnder super-structure. Each internal modulator is designed to have EO bandwidth above 20 GHz. Monitor photodiode is provided for automatic bias control. The 40G-IQ-XT version is provided with an extended operating temperature of - 55 to + 85°C for different environmental applications.
|
Features |
Applications |
|
Titanium Indiffused Waveguide |
OFDM Coding |
| Operating at C-Band |
QPSK Coding |
| X-Cut LiNbO3 |
QAM Coding |
| High Bandwidth Operating > 30 GHz |
CS-SSB (Carrier Suppressed Single Side Band) |
| Low Optical Insertion Loss |
FMCW LiDAR in Autonomous Driving |
| Compliance with Telcordia GR-468-Core |
|
| Extended Operating Temperature at - 55 °C to + 85 °C |
|
| Hermetically Sealed |
|
| Excellent Linearity |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
