Part Number: 400G-OSFP-DR4FT

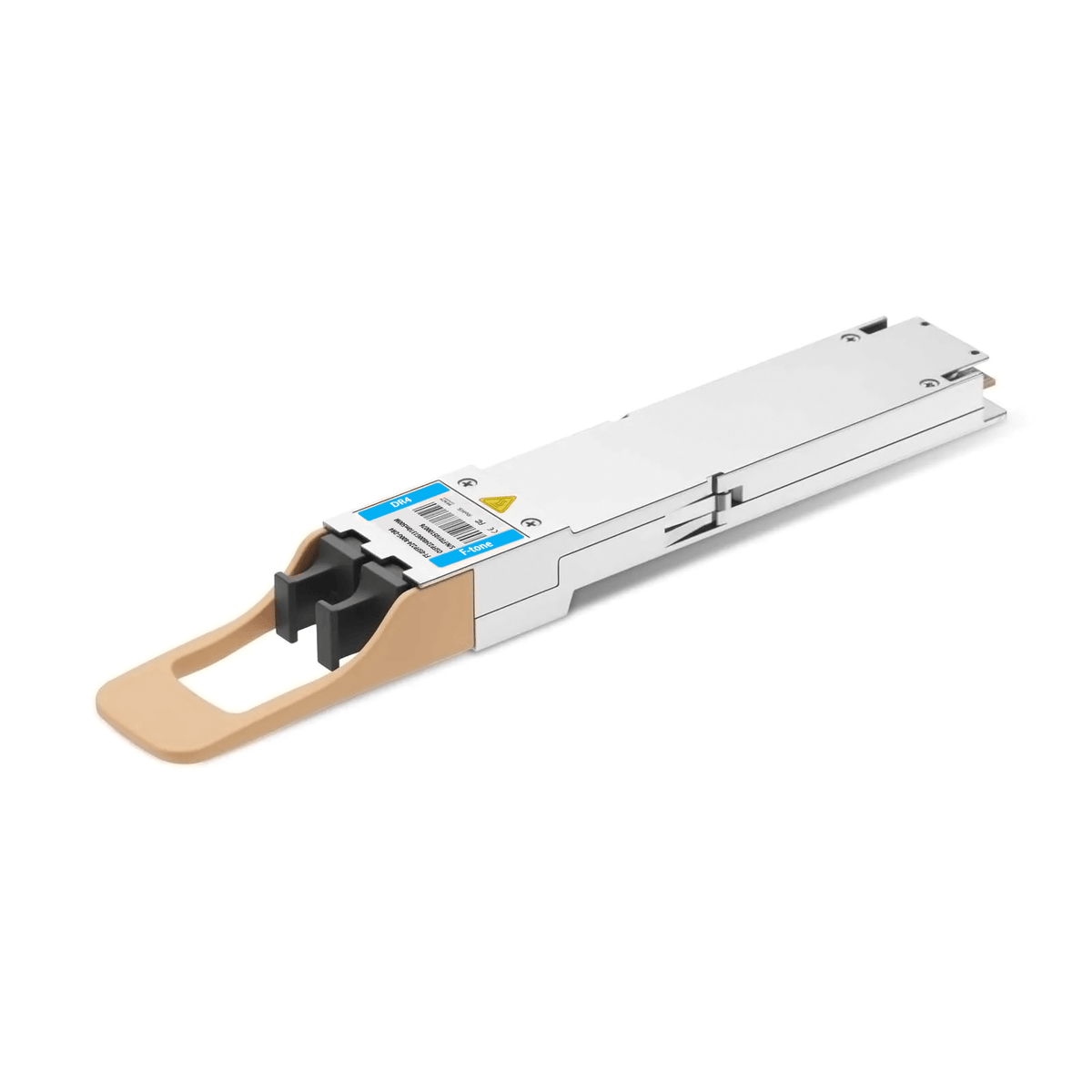

NVIDIA MMS4X00-NS400 Compatible 400G DR4 OSFP Flat Top PAM4 Optical Transceiver Module (1310nm MTP/MPO-12 500m SMF with FEC DDM)
The F-tone 400G OSFP DR4 Flat Top transceiver module is designed for use in 400 Gigabit Ethernet links over 500m single mode fiber. The module has 4 independent electrical input/output channels operating up to 106.25Gbps per channel. This transceiver consists of a transmitter/receiver unit, each operating on a set of wavelengths at 1310nm. The transmitter path of the module incorporates a bi-directional PAM4 re-timer ASIC integrated with an EML laser and a 4-channel internal driver. On the receiver path, used 4 photodiodes and a 4-channel TIA array, along with the PAM4 re-timer.
Product Details
| NVIDIA Compatible | MMS4X00-NS400 | Vendor Name | F-tone |
|---|---|---|---|
| Form Factor | OSFP | Max Data Rate | 425Gbps |
| Wavelength | 1310nm | Max Distance | 500m |
| Modulation Format | PAM4 | Host Required | FEC |
| Connector | MTP/MPO-12 APC | Voltage Supply | 3.3V |
| Cable Type | SMF | DDM Support | Yes |
| Transmitter Type | 1310nm EML | Receiver Type | PIN |
| TX Power | -2.9~+4.0dBm | Receiver Sensitivity | <> |
| Operation Temperature | 0 to 70～C (32 to 158～F) | Maximum Power | <> |
| Protocols | OSFP MSA, IEEE 802.3bs | Application | 400G Ethernet, Datacenter Enterprise Networking, Infiniband Interconnects |
