Part Number: 400G-QSFP112-Q112-PCC1

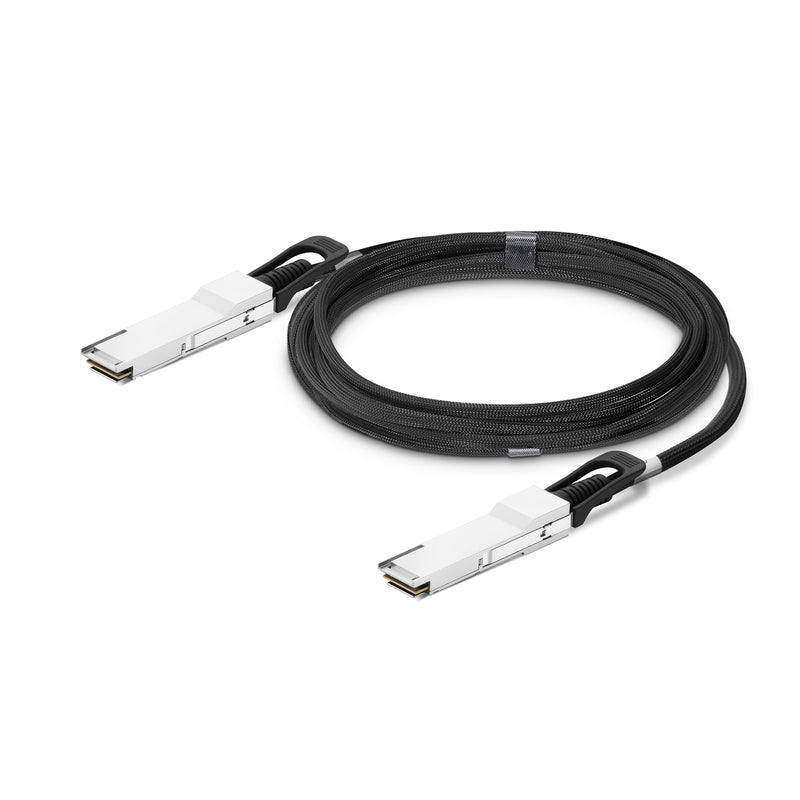

400G QSFP112 PCC (QSFP112 to QSFP112 Passive Copper Cable 28AWG 1-meter)
The F-tone 400G QSFP112 PCC consists of 8 high-speed copper pairs supporting 4 signal lanes with data rates up to 112Gb/s per lane, providing energy-efficient connectivity for 400G short-reach interconnects up to 2 meters. 400G QSFP112 PCC cables enable higher port bandwidth, density, and configurability at low cost, and reduce data center power requirements.
Product Details
| P/N | QSFP112-400G-PC1M | Vendor Name | F-tone |
|---|---|---|---|
| Connector | QSFP112 to QSFP112 | Max Data Rate | 400Gb/s |
| Wire Gages | AWG 28 | Cable Length | 1m (3ft) |
| Jacket Material | PET Woven net, Black | Minimum Bend Radius | 35mm |
| Operating Case Temperature | 0 to 70～C (32 to 158～F) | Management Interface | CMIS Rev 4.0/5.0 |
| Protocols | QSFP-DD MSA Rev6.3 and IEEE802.3ck | Application | 400G Ethernet and InfiniBand NDR |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
