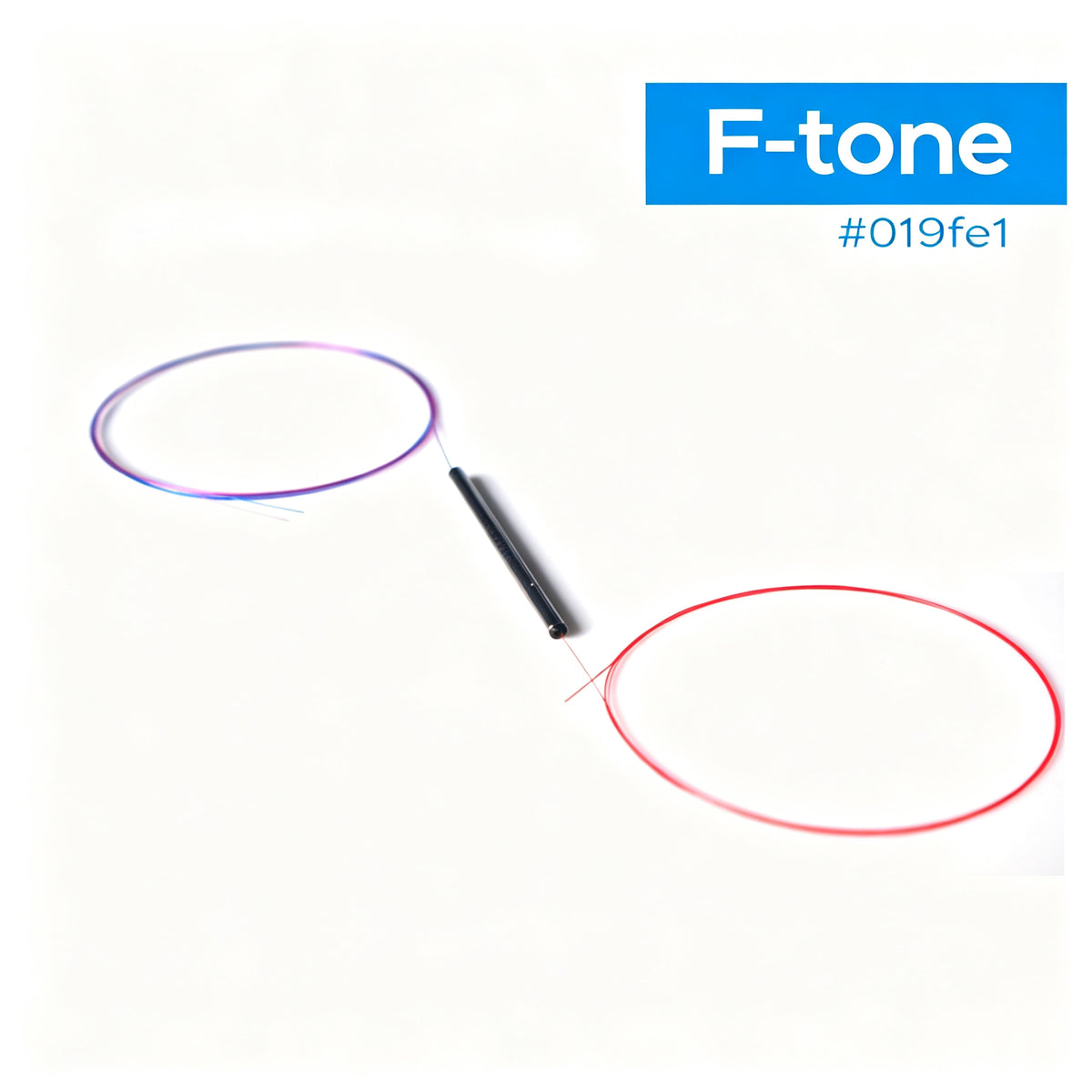

This single-mode wavelength division multiplexer enables the merging or separation of optical signals at 488nm and 670nm. It features low insertion loss, low polarization dependence, high isolation, and excellent environmental stability.
Features & Applications
| Features | Applications |
|---|---|
| High Extinction Ratio | Testing Instruments |
| High Isolation | Coherent Communication |
| Low Insertion Loss | EDFA |
| High stability & Reliability | Fiber Sensor |
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Wavelength | nm | 488 / 670 |
| Operating Bandwidth | nm | ±5 / ±5 |
| Max. Insertion Loss at 23℃ | dB | 0.5 / 0.5 |
| Min. Isolation at 23℃ | @488nm | dB / N/A |
| @670nm | dB | 16 / N/A |
| Max. PDL at 23℃ | dB | 0.2 |
| Min. Directivity | dB | 50 |
| Min. Return Loss at 23℃ | dB | 50 |
| Max. Optical Power (CW) | mW | 50mW (with connectors), 100mW (Spliced) |
| Fiber Type | - | 460HP |
| Package Dimensions | Bare fiber | mm / φ3*60 |
| 900um loose tube | mm | φ3*70 |
| Operating Temperature | ℃ | -5~+75 |
| Storage Temperature | ℃ | -40~+85 |
Ordering Information
①①①①
- Wavelength:
4867=488/670, SSSS=Specified
②
- Working Axis:
N=Non-PM
③
- Pump Type:
F=Forward pump (2x1), B=Backward pump (1x2)
④④④
- Fiber type:
097=460-HP, 106=630-HP, SSS=Specified
⑤
-
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
