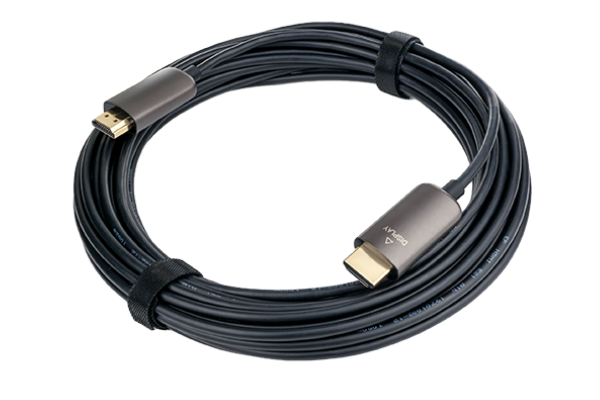

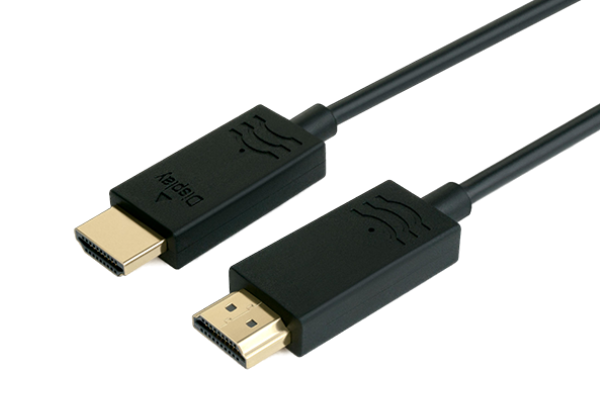

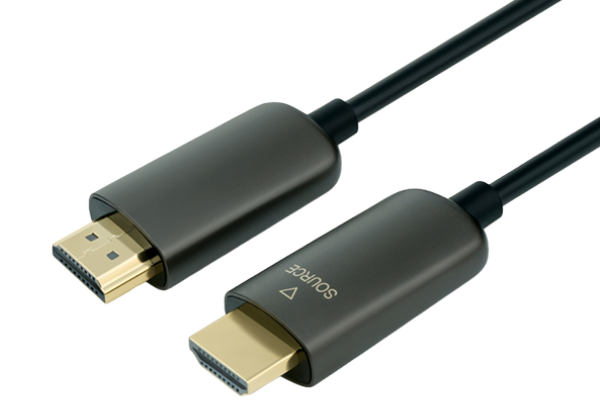

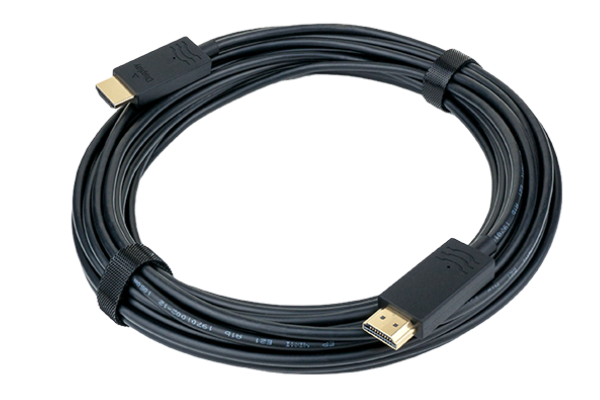

4K HDMI Active Optical Cable (Support ARC)
Product Details
In professional engineering wiring, cable needs to be long, light and soft enough to make it more convenient for wiring through pipes, reduce cable damage and ensure the normal transmission of data.
F-tone Networks' FT-62-H2C08 product is an 4K HDMI optical cable with 18Gbps and low power consumption. Adopting TransFuture technology owned by F-tone Networks, its transmission distance can reach 150m. It supports ARC function. In addition, its interior is filled with injection molding, which is dustproof and moistureproof. Various customized requirements regarding appearance are supported.
Features
● High Bandwidth
● Support ARC
● 4K60Hz
● No External Power Needed
Applications
● Living Room Entertainment
● Home Theaters
● Large Exhibition Halls
● Performance Halls
Specifications
| Product Model | FT-62-H2C08 |
| Cable Length | up to 150m |
| Connector | HDMI Type-A Connector-HDMI Type-A Connector |
| Bandwidth | 4K HDMl Standard, 18Gbps Bandwidth, support 4K@60HZ, ARC(30m) |
| Power Supply | No External Power Needed |
| Power Consumption | 250mw |
| Housing Material | Black TPE/Zinc Alloy |
| Mechanical/Condition | Cable Diameter, 4.15mm Bend Radius (Dynamic/Static), 20mm/10mm Tensile Strength (Long term/Short term), 100N/200N Crush Resistance (Long term/Short term), 200N/400N Operating/Storage Temperature, 0~50°C / -20~70°C Operating/Storage Humidity, 0~85% / 0~85% |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
