Part Number: 4PC6RJ-15M-FM

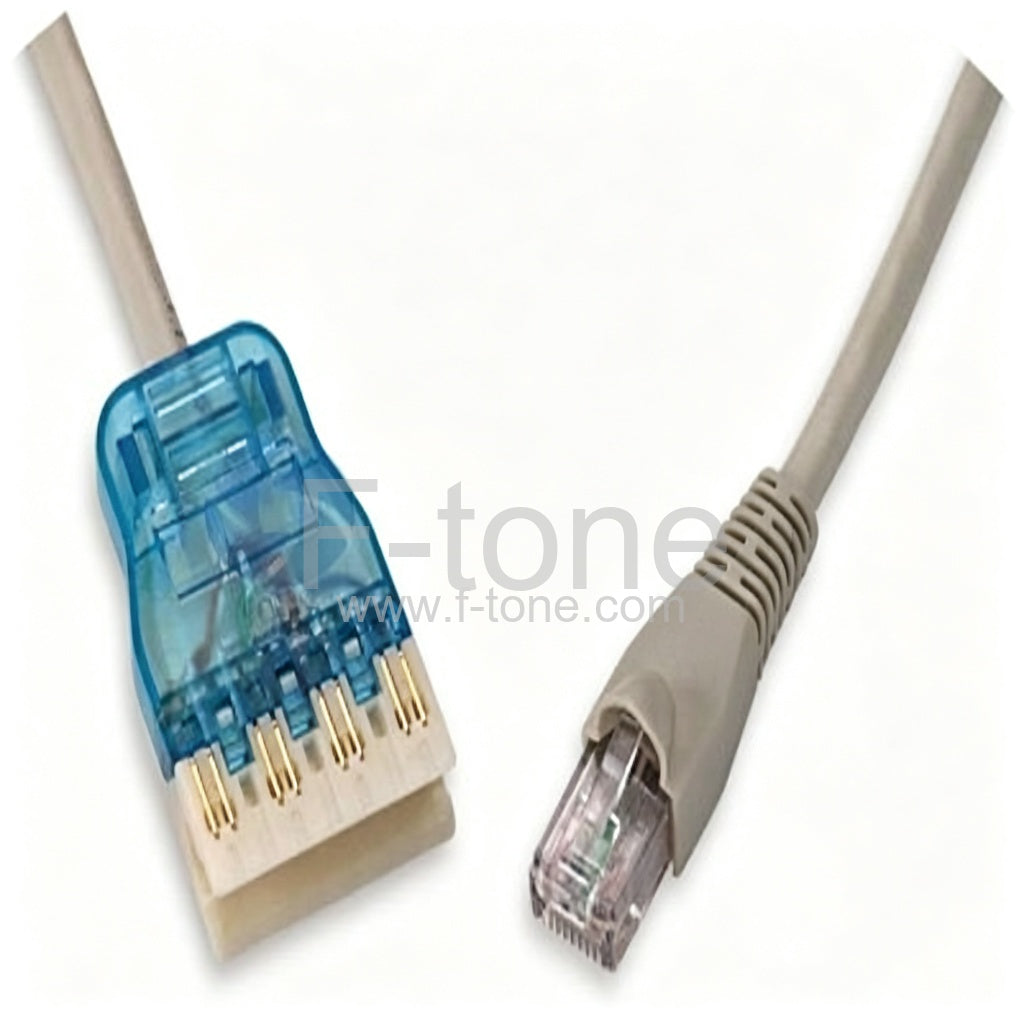

1.5m 4 Pair Cat 6 110 to RJ45 Patch Cable
Description
Category 6 110 Patch Cords exceed performance specifications as defined in ANSI/TIA-568-C.2. Patch cords are available with four-pair 110 plugs and are used for patching between category 6 110 termination fields. Category 6 RJ-45/110 Patch Cords are available in four-pair configurations wired to T568B wiring scheme. RJ-45/110 Patch Cords are used for patching between equipment and cate-gory 6 110 termination fields. All cords are 100% factory performance tested.
Features
Available in 110 to 110 Cat6 configuration or 110 to T568A or T568B wiring configurations
Meets and exceeds Category 6 requirements for channel level performance per TIA/EIA 568-B and Class E requirements of ISO/IEC 11801-B
All components are UL certified for the US and Canada and comply with NOM and ACA requirements
Fire-retardant plastic plug is impact resistant and rated to UL94V-O
All spring wires are made form high-quality copper alloy
Manufactured to provide excellent electrical contact and durability, the RJ45 plugs are plated with 50 micro-inches of gold. The 110-style plug is plated with 3 micro-inches of gold over 100 micro-inches of nickel
Available in 1, 1.5,2, 3m lengths
Specifications
Category:6
Available Lengths:1,1.5,2,3m
Configurations:110 to 110, 110 to T568A,110 to T568B
Compliance:NOM and ACA requirement, TIA/EIA 568-B and Class E requirements of ISO/IEC 11801-B
Plug Rating:UL-94 V-0 rated
Plug Plating:RJ-45 : 50 micro-inches gold,
110-style : 3 micro-inches of gold over 100 micro-inches nickel
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
