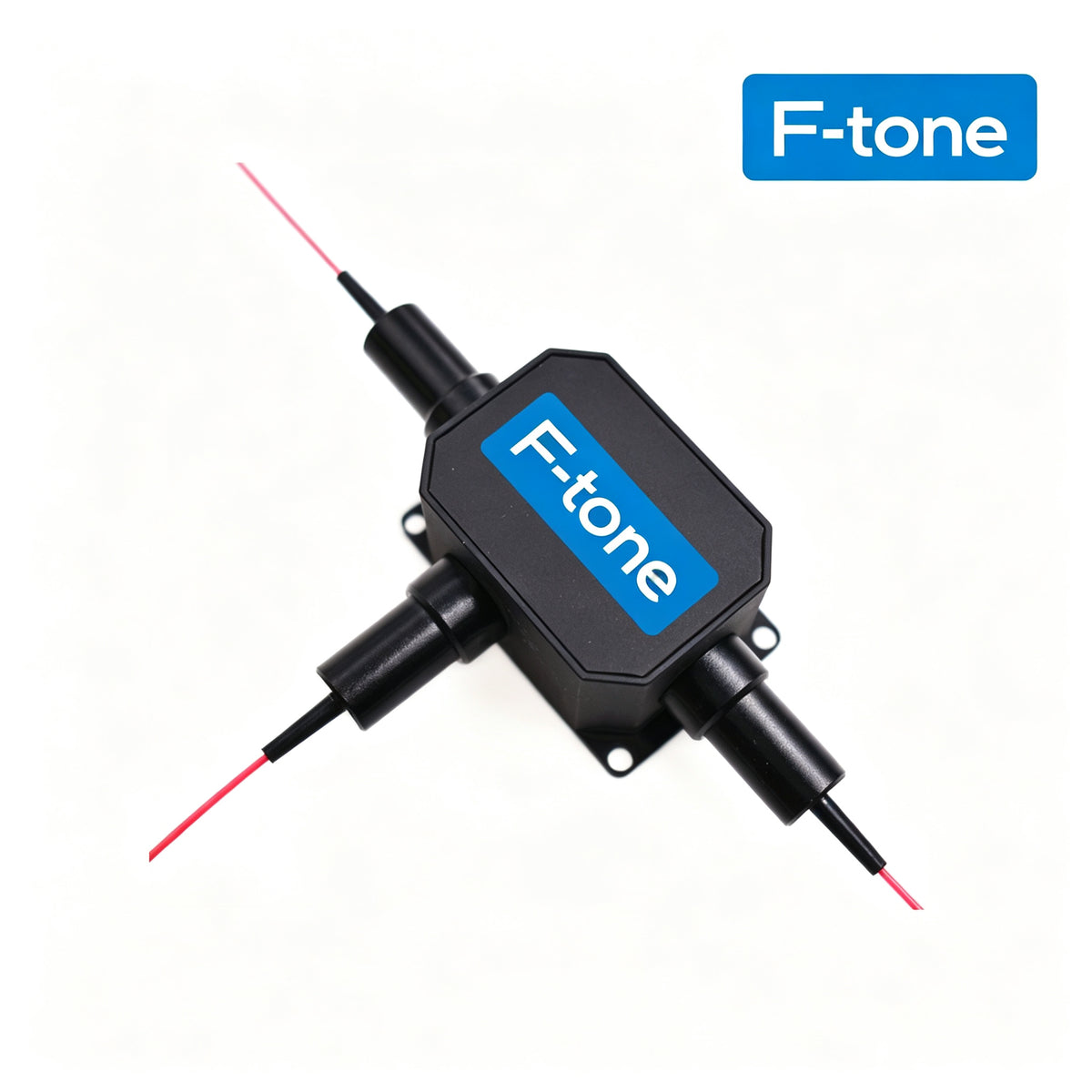

The PM Fiber Circulator (Fast axis blocked) is a compact light-wave assembly that comes in two types. One type is 1x2 that routes input signals from Port 1 to Port 2 and input Port 2 signals to Port 3 while blocking reflected light; The other type is 2x2 that routes input signals from Port 1 to Port 2, input port 2 to port 3, and input port 3 to port 4, while blocking reflected light. The device has high isolation, low insertion loss, high extinction ratio and excellent environmental stability.
Features & Applications
| Features | Applications |
|---|---|
| Low Insertion Loss | Fiber Laser |
| High Return Loss | Testing Instrument |
| High Isolation | Fiber Sensor |
| High Stability & Reliability | Medical Equipment |
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Port Type | - | 3 Port |
| Center Wavelength | nm | 532 |
| Operating Wavelength Range | nm | ±5 |
| Typ. Peak Isolation at 23℃ | dB | 22 |
| Min. Isolation at 23℃ | dB | 20 |
| Typ. Insertion Loss at 23℃ | dB | 1.5 |
| Max. Insertion Loss at 23℃ | dB | 2.0 |
| Max. Polarization Dependent Loss at 23℃ | dB | 0.2 |
| Min. Return Loss at 23℃ (Input/ Output) | dB | 40 |
| Min. Cross Talk at 23℃ | dB | 40 |
| Max. Optical Power (CW, Including Port 1 & Port 2) | mW | 300 |
| Max. Tensile Load | N | 5 |
| Package Dimensions | mm | 44x28x26 |
| Operating Temperature | ℃ | +10~+50 |
| Storage Temperature | ℃ | 0~+60 |
Ordering Information
①①①
- Wavelength:
532=532nm, SSS=Specified
②
- Working Axis:
N=Non-PM
③③③
- Fiber Type:
097=460-HP, SSS=Specified
④
-
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
