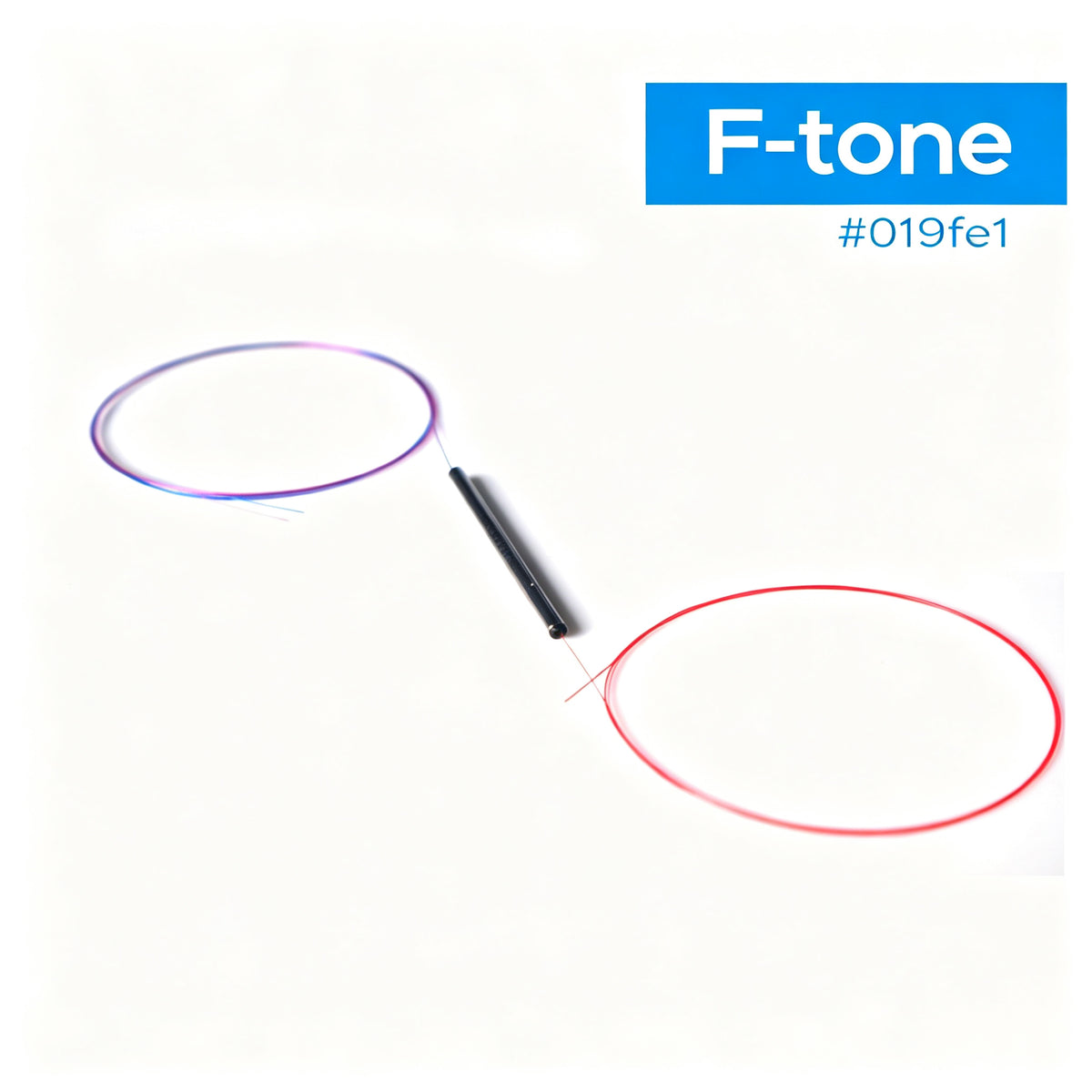

The Fused Type PM Fiber Coupler is characterized by low insertion loss, high power signal processing and stable & reliable environment. Suitable for Fiber Gyroscope, Power Monitor and Optical Sensor.
Features & Applications
| Features | Applications |
|---|---|
| High Power Handling | Coherent Communication |
| Low Insertion Loss | Power Monitor |
| High Stability & Reliability | Fiber Sensor |
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Center Wavelength | nm | 780 |
| Operating Bandwidth | nm | ±10 |
| Type | - | 1x3 / 3x3 |
| Max. Excess Loss | dB | 1.2 / 1.4 |
| Min. Extinction Ratio | dB | 18 |
| Splitting Ratio | % | 33:33:33 |
| Splitting Ratio Tolerance | % | ±4 |
| Min. Directivity | dB | 50 |
| Max. Return Loss | dB | 50 |
| Max. Optical Power (CW) | W | 2 |
| Fiber Type | - | PM Panda Fiber |
| Package Dimensions | Bare fiber | mm / Φ3*54 |
| Operating Temperature | ℃ | -5~+70 |
| Storage Temperature | ℃ | -40~+85 |
Ordering Information
①①①①
- Wavelength:
780=780nm, SSSS=Specified
②②
- Port Type:
13=1x3, 33=3x3
③③③
- Fiber Type:
067=PM780-HP, 119=PM850, SSS=Specified
④
-
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
