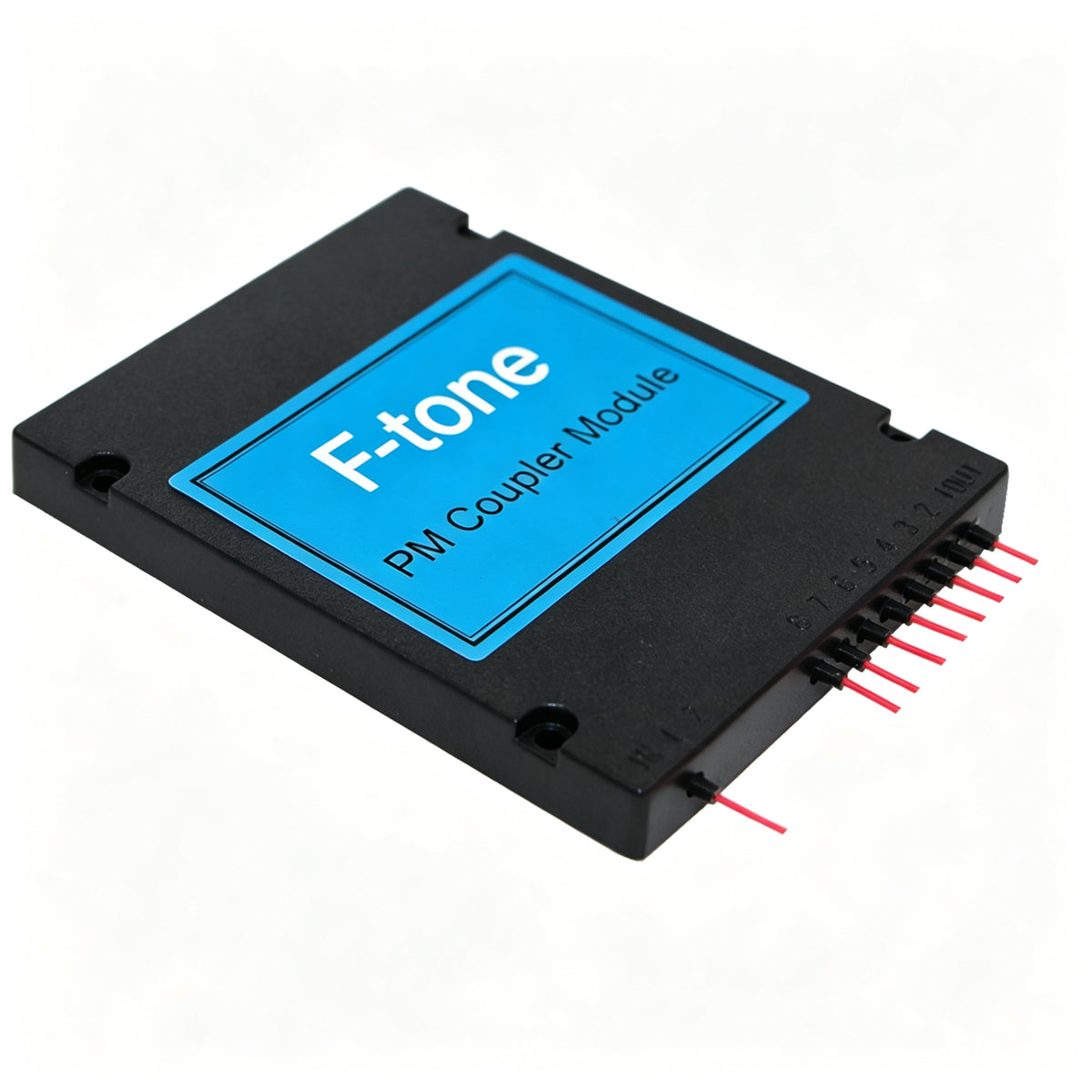

The Polarization Maintainiing Coupler Module has low insertion loss and polarization dependent loss, miniature size, wide operating wavelength and temperature range, super reliability and excellent channel uniformity.
Features & Applications
| Features | Applications |
|---|---|
| Low Insertion Loss | EDFA & Raman Amplifier |
| High Return Loss | Fiber Sensor |
| High Extinction Ratio | Fiber Optical Instrument |
| High Reliability & Stability | Power Monitoring System |
Specifications
| Parameter | Unit | Value |
|---|---|---|
| Center Wavelength | nm | 780 |
| Max. Insertion Loss @23℃ | 1x4 | dB / 8.5 |
| Max. Wavelength Dependent Loss | dB | 0.8 |
| Uniformity | dB | 0.6 |
| Min. Extinction Ratio @23℃ | Both axis working | dB / 18 |
| Min. Return Loss | dB | 50 |
| Max. Insertion Temperature Stability (-40～85 ℃) | dB | 0.5 |
| Max. Optical Power (CW) | mW | 300 |
| Max. Tensile Load | N | 5 |
| Fiber Type | - | PM Panda fiber |
| Operating Temperature | ℃ | -5~+70 |
| Storage Temperature | ℃ | -40~+85 |
| Package Dimensions | ABS Box | mm / 100x80x10 or 120x80x10 |
Ordering Information
①①①①
- Wavelength:
780=780nm, SSSS=Specified
②②②
- Configuration:
104=1x4, 108=1x8, 208=2x8, 116=1x16, SSS=Specified
③
- Working Axis:
F=Fast axis blocked, B=Both axis working
④④④
- Fiber Type:
067=PM780-HP, 119=PM850, SSS=Specified
⑤
-
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
