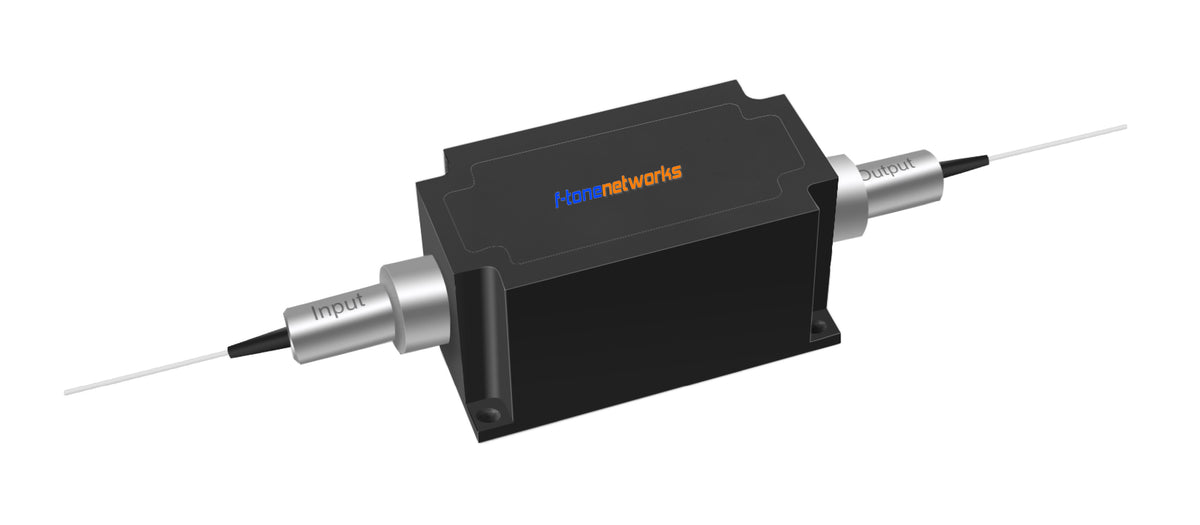

830 nm Isolator
The 830 nm High Power Polarization Insensitive Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. The High Power Polarization Insensitive Isolator is ideal for fiber laser and instrumentation applications.
Product Detail
|
Key Features |
Applications |
|
Low Insertion Loss |
Fiber Lasers |
|
High Isolation |
Fiber Optic Instruments |
Specifications
|
Parameter |
Unit |
Value |
|
|
Grade |
- |
Grade P |
Grade A |
|
Center Wavelength (λc) |
nm |
830 or specify |
|
|
Max. Polarization Dependent Loss |
dB |
0.15 |
0.2 |
|
Min. Isolation, λc, @ All Polarization States, 23 ℃ |
dB |
22 |
20 |
|
Typ. Insertion Loss, 23 ℃ |
dB |
1.3 |
1.6 |
|
Max. Insertion Loss, 23 ℃ |
dB |
1.6 |
1.8 |
|
Min. Return Loss (Input/Output) |
dB |
50/50 |
45/45 |
|
Max. Optical Power (Continuous Wave) |
mW |
500 |
|
|
Max. Tensile Load |
N |
5 |
|
|
Fiber Type |
- |
HI780 SM |
|
|
Operating Temperature |
℃ |
+ 10 to + 50 |
|
|
Storage Temperature |
℃ |
0 to + 60 |
|
1IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Other details are available from any F-tone Networks sales representative.
