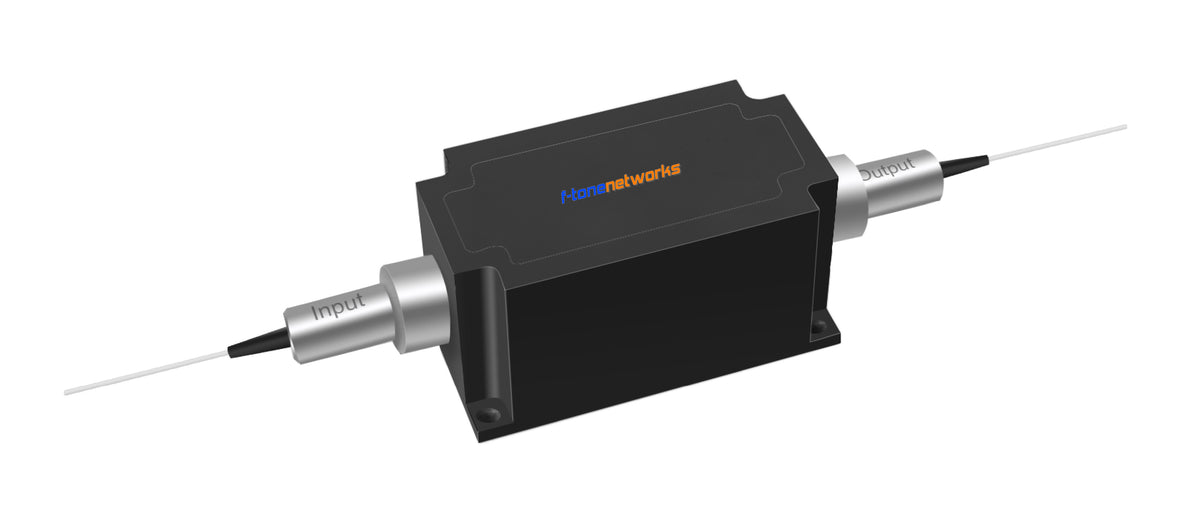

850 nm Polarization Maintaining Isolator
The High Power Polarization Maintaining Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. This fiber isolator is ideal for fiber laser and instrumentation applications.
Product Detail
|
Key Features |
Applications |
|
Low Insertion Loss |
Fiber Lasers |
|
High Isolation |
Fiber Optic Instruments |
Specifications
|
Parameter |
Unit |
Value |
|
Operating Wavelength (λop) |
nm |
850 |
|
Typ. Insertion Loss, 23 ℃ |
dB |
1.3 |
|
Max. Insertion Loss, 23 ℃ |
dB |
1.6 |
|
Typ. Peak Isolation |
dB |
26 |
|
Min. Isolation, λc, 23 ℃ |
dB |
22 |
|
Min. Extinction Ratio |
dB |
18 |
|
Min. Return Loss |
dB |
45 |
|
Max. Optical Power (Continuous Wave) |
mW |
500 |
|
Fiber Type |
- |
PM850 Panda |
|
Operating Temperature |
℃ |
+ 10 to + 50 |
|
Storage Temperature |
℃ |
0 to + 60 |
1IL is 0.5 dB higher, RL is 5 dB lower, and ER is 2 dB lower for each connector added. Connector key is aligned to slow axis.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Other details are available from any F-tone Networks sales representative.
