Part Number: ABS-PLC-C

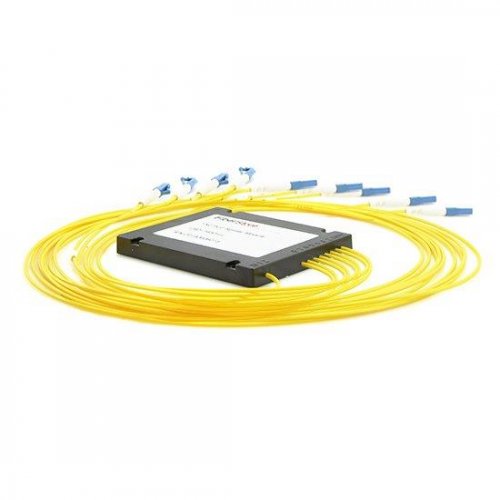

Fiber PLC Splitter Singlemode 1xN,2xN, ABS Box Type, Customized
FTTH PLC Splitter Terminal Solution How does the optical singnal transmit from OLT to ONU via PLC splitter
Learn More
Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.
Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.
Product Details
| Package Style | ABS Module | Configuration Type | 1/2xN |
|---|---|---|---|
| Fiber Type | Singlemode G.657A1 | Connector Type | LC/SC/FC |
| Fiber Diameter | 0.9mm/2.0mm/3.0mm | Polish Type | UPC/APC |
| Pigtail Length | 1.5m | Operating Bandwidth | 1260~1650nm |
| Operating Temperature | -40~85C | Storage Temperature | -40~85C |
Product Highlights
1/2xN ABS Module PLC Fiber Splitter
- 1/2xN PLC splitter, uniform distribution of optical signal
- Small size, with the splitter type of ABS box
- Ideal for EPON, GPON, FTTH/FTTX network
Perfect Details of 1/2xN ABS PLC Splitter
G.657A1 for Fiber Input/Output
Wide wavelength range, excellent channel-to-channel uniformity.
1/2xN Splitting, LC/SC/FC Connector
Low insertion loss, low PDL and high reliability.
Exquisite Packaging
Well protected krsft box with foam filled package.
A Variety of Applications of Bare PLC Splitter
Important passive component in PON network
Widely used in CATV, FTTH/FTTX, PON network, DWDM and CWDM systems, test equipment, LAN/MAN/WAN network, and more.
Technical Parameter
| Parameter | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
|---|---|---|---|---|---|---|
| Fiber Type | G.657A | G.657A | G.657A | G.657A | G.657A | G.657A |
| Operating Wavelength (nm) | 1260~1650 | 1260~1650 | 1260~1650 | 1260~1650 | 1260~1650 | 1260~1650 |
| Typical Insertion Loss (dB) | 3.7 | 6.8 | 10.0 | 13.0 | 16.0 | 19.5 |
| Max Insertion Loss (dB) | 4.0 | 7.2 | 10.5 | 13.5 | 16.9 | 21.0 |
| Max Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 |
| Min Return Loss (dB) | 50 | 50 | 50 | 50 | 50 | 50 |
| Max PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 |
| Min Directivity (dB) | 55 | 55 | 55 | 55 | 55 | 55 |
| Max Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 |
| Max Temperature Dependent Loss (-40~85C) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 |
| Operating Temperature (C) | -40~85 | -40~85 | -40~85 | -40~85 | -40~85 | -40~85 |
| Storage Temperature (C) | -40~85 | -40~85 | -40~85 | -40~85 | -40~85 | -40~85 |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
