Part Number: AD-SCU-SCU-OM3-DX-FM

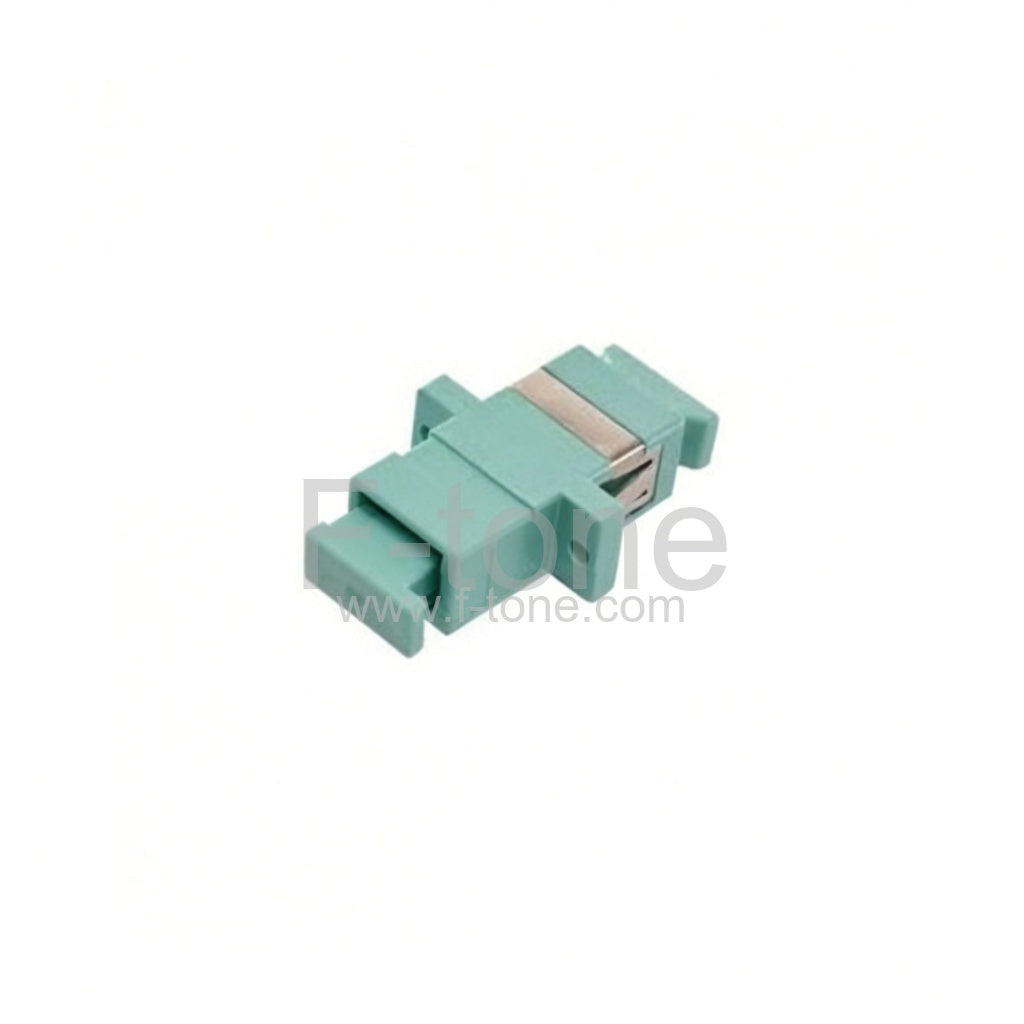

OM3 Multimode SC/UPC to SC/UPC Duplex Plastic Fiber Optic Adapter without Flange
A fiber optic adapter, sometimes also called a coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. FS supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapters.
Specifications
| Connector Type | SC-SC | Body Style | Duplex |
|---|---|---|---|
| Polish Type | UPC | Fiber Mode | OM3 50/125μm |
| Insertion Loss | ≤0.2dB | Durability | 1000 times |
| Mounting Type | Reduced Flanged | Alignment Sleeve Material | Ceramic |
| Color | Aqua | Flammability Rate | UL 94V-0 |
| Package Quantity | 1 Pc | RoHS Compliancy Status | Compliant |
| Operating Temperature Range | -40 to 85℃(-40 to 185℉) | Storage Temperature Range | -10 to 60℃(14 to 140℉) |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
