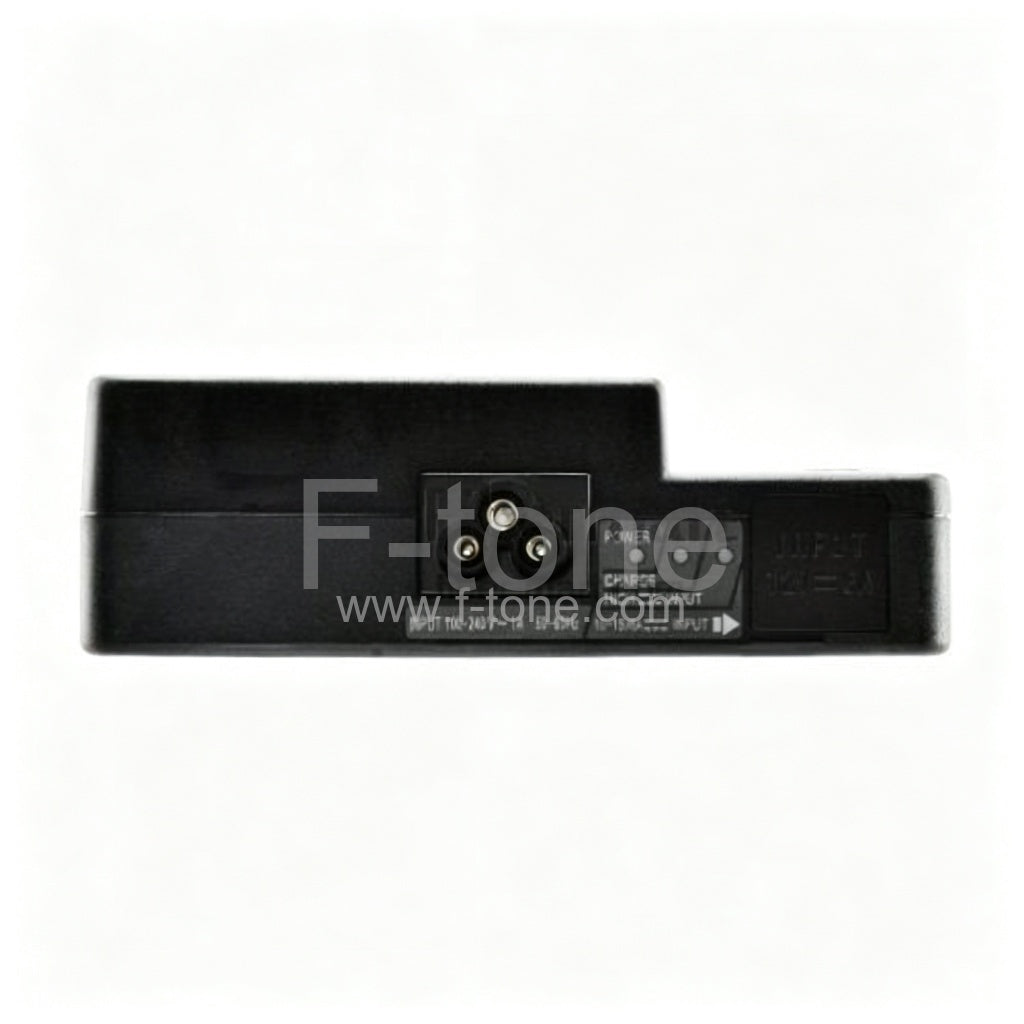

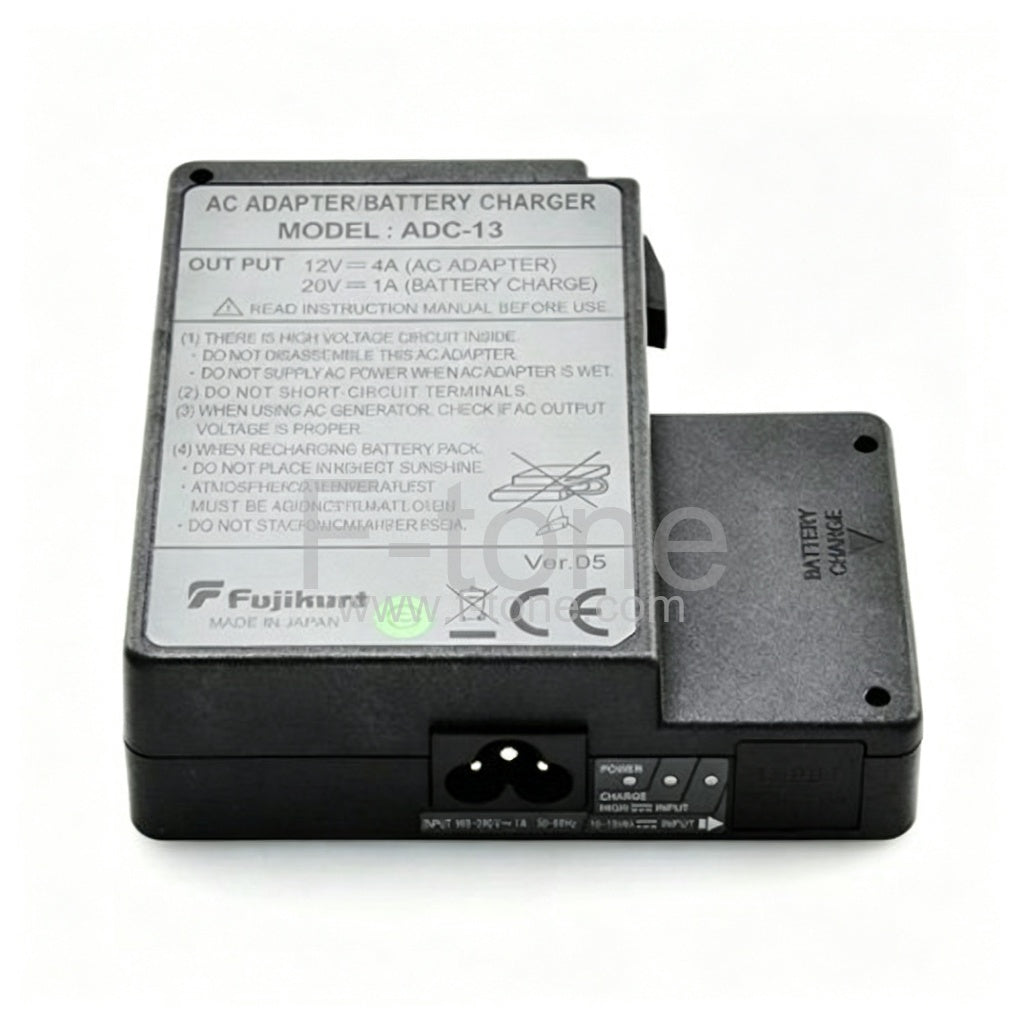

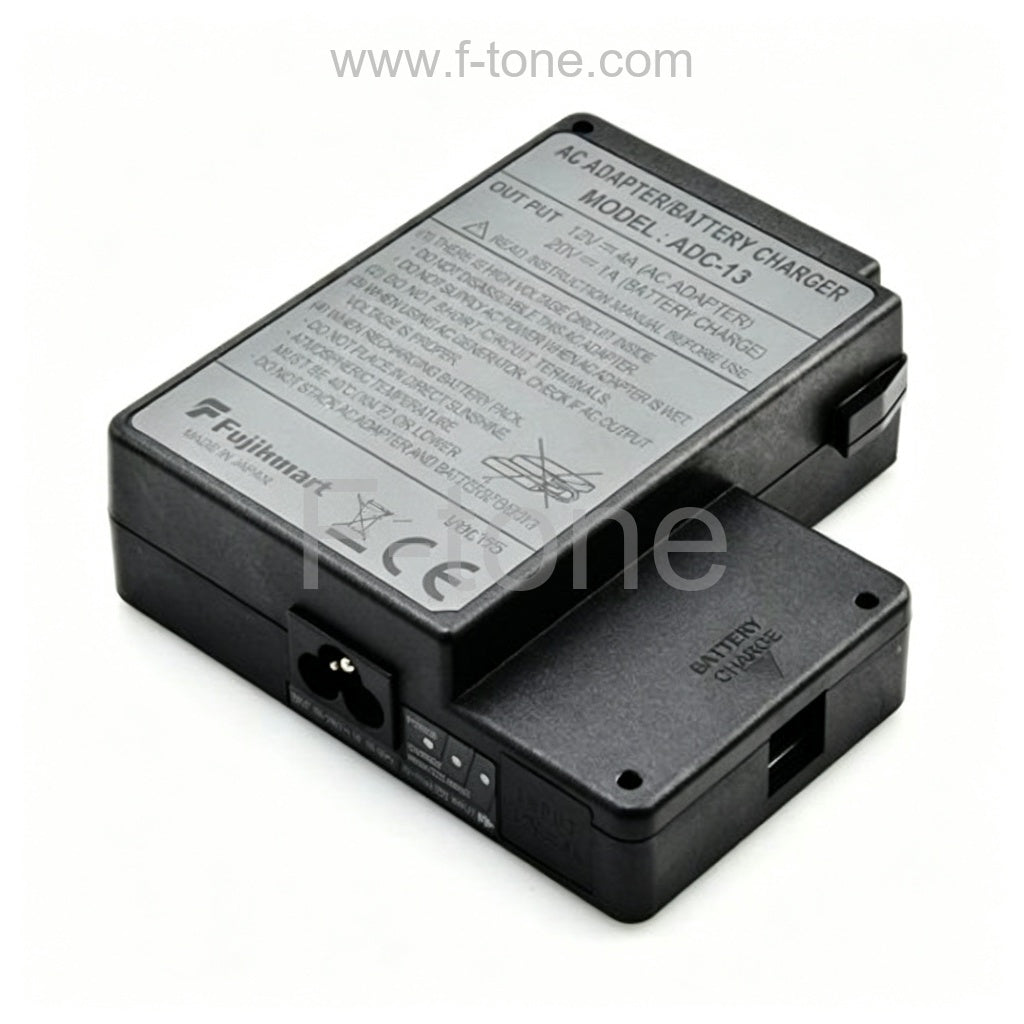

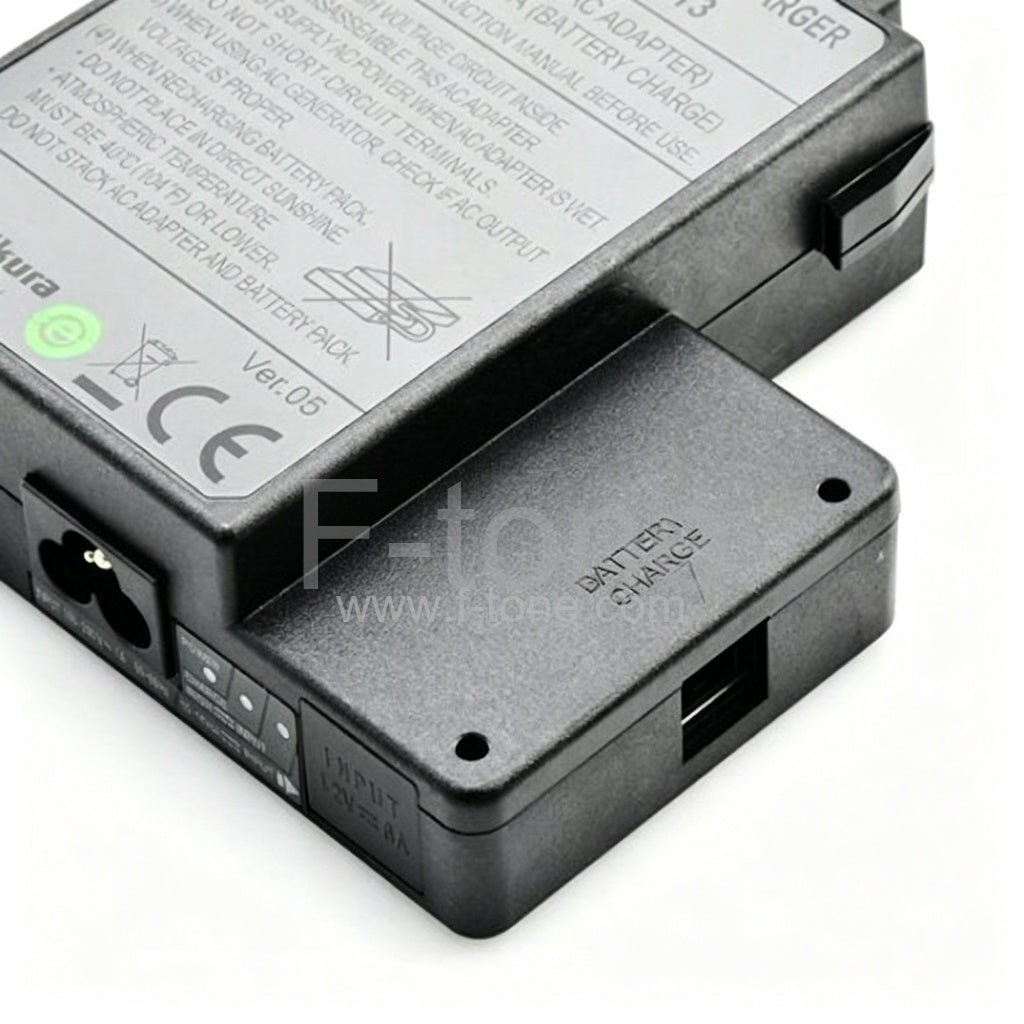

Fujikura FTM-18S/18R/60S/60R AC Adapter (ADC-13)

Fujikura FTM-18S/18R/60S/60R AC Adapter (ADC-13)

View full details

Part Number: ADC-13

Fujikura FTM-18S/18R/60S/60R AC Adapter (ADC-13)

Features

The ADC-13 supplies DC power exclusively for Fujikura Fusion Splicers.
Three functions are available on it, as AC adapter, battery charger and external DC power inlet.
The ADC-13 is supplied with Fusion Splicer, FTM-60S, FTM-60R, FTM-18S, and FTM-18R, as a standard item.

Specification

Kind of power inlet AC, External DC and battery charging
AC power supply Input 100V to 240V AC, 50Ha to 60Hz
Power Cord Fujikura's AC power cords: ACC-13~17
Barrtey charging Battery/Capacity Fujikura's battery pack: BTR-08/4.0Ah
Charging voltage 13.2V
Battery charge cord Fujikura's battery charge cord:DCC-14
External DC power supply Input 10V to 15V DC
Power Cord Fujikura's DC power cords: DCC-12 (Cigarette lighter plug), DCC-13 (alligator clamps)
Power supply selection Automatic
High voltage protection circuit Available (High input indicator equipped)
Use for FTM-60S, FTM-60R, FTM-18S, FTM-18R
Usage Power supply: Sloted into the above splicers
Battery charging: Connecting to the battery
Dimensions and Weight 120W*117D*38H (mm), 0.34kg






This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
