Part Number: AQ1000

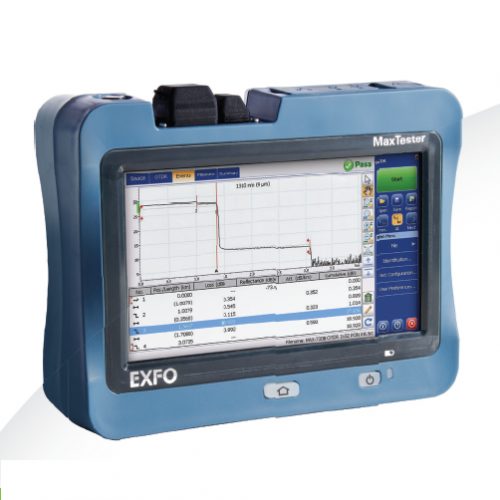

YOKOGAWA AQ1000 MFT-OTDR Handheld Optical Fiber Test Tool 1310/1550nm
Introduction
The AQ1000 is the newest addition to Yokogawa's OTDR product family offering an even smaller and lighter alternative to the AQ7275 models.
Like the larger AQ7275, it also offers an industry leading 0.8m event dead zone as well as the convenient capability to display a fiber connector inspection probe using one of the unit's standard USB I/O ports.
Tradeoffs compared to the larger AQ7275 include omission of the built-in launch fiber option, limited to SMF fiber only and a reduced dynamic range of 32/30dB.
Features
a. OTDR that supports SM1310/1550nm with a short 80 cm event dead zone
b. Quick power on for faster operations
c. Able to display trace and event information at the same time
d. Full auto mode for novice users and information tips for more experienced users
e. Bright LCD screen for easy viewing inside buildings and outside
f. Includes Fault Locator functions for fast measurements
g. Supports external USB Video fiber inspection probe
Excellent Functionality and Operability
a. 5.7 inch color LCD for easy viewing
b. Multi-language support
c. AQ7275 OTDR-like interface
d. USB port for data storage
e. Quick and easy data exchange with PC through USB connection
Application Drawing
F-tone is specializing in supplying fiber optic components and network equipment, and we are trying to complete this system. For the OTDR, we provide one year warranty for each domestic and foreign brand product. If you have any problems or special requirement of this YOKOGAWA AQ1000 MFT-OTDR, please feel free to contact us. We will try our best to provide you the best service.
Internal Memory Compliant standards Emissions Immunity
| Common Specifications | |||
|---|---|---|---|
| Horizontal Axis Parameters | |||
| Sampling resolution | 5cm, 10cm, 20cm, 50cm, 1m, 2m, 4m, 8m, 16m, 32m | ||
| Readout resolution | 1cm (Min.) | ||
| Number of sampled data | Up to 128,000 points (Firmware Rev2.01 or later) | ||
| Group refractive index | 1.30000 to 1.79999 (in 0.00001 steps) | ||
| Unit of distance | km, kf or miles | ||
| Distance measurement accuracy | +/- 1m +Measurement distance*2*10 +/- sampling resolution | ||
| Excluding IOR uncertainty | |||
| Vertical Axis Parameters | |||
| Vertical axis scale | 0.2 dB/div, 0.5dB/div, 1dB/div, 2dB/div, 5dB/div, 7.5dB/div | ||
| Readout resolution | 0.001dB(Min.) | ||
| Loss measurement accuracy | +/- 0.05dB/dB (When the measuring loss is 1dB or less, the accuracy is within +/-0.05 dB.) | ||
| OTDR Measurement Function | |||
| Distance measurement | Displays up to eight digits of the relative one way direction between two arbitrary points on the trace. | ||
| Loss measurement | Displays one way loss in steps of 0.01dB to a maximum of 5 digits. Displays the one way loss, loss per unit length, and splice loss between any arbitrary points on the trace. | ||
| Return loss measurement | Measurement return loss and total return loss of a fiber cable or between two arbitrary points on the trace. | ||
| OTDR Analysis Functions | |||
| Analysis functions | Section analysis | ||
| Laser safety | Class 1 M (IEC 60825-1:2007) | ||
| Safety | EN61010-1 | ||
| EN61326-1 class A, EN55011 class A, group 1 | |||
| EN61326-1 Table 2 (for industrial locations) | |||
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
