Part Number: ASE-CL-N-FM

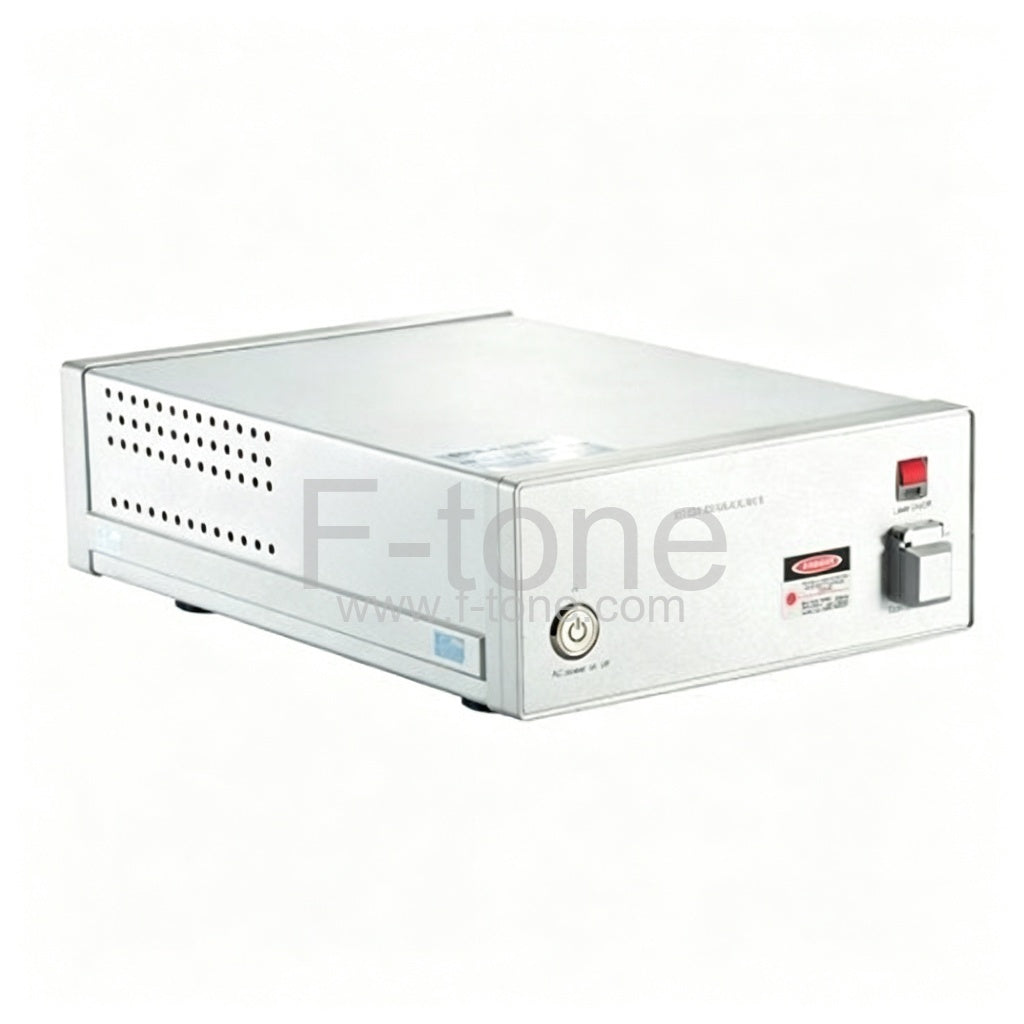

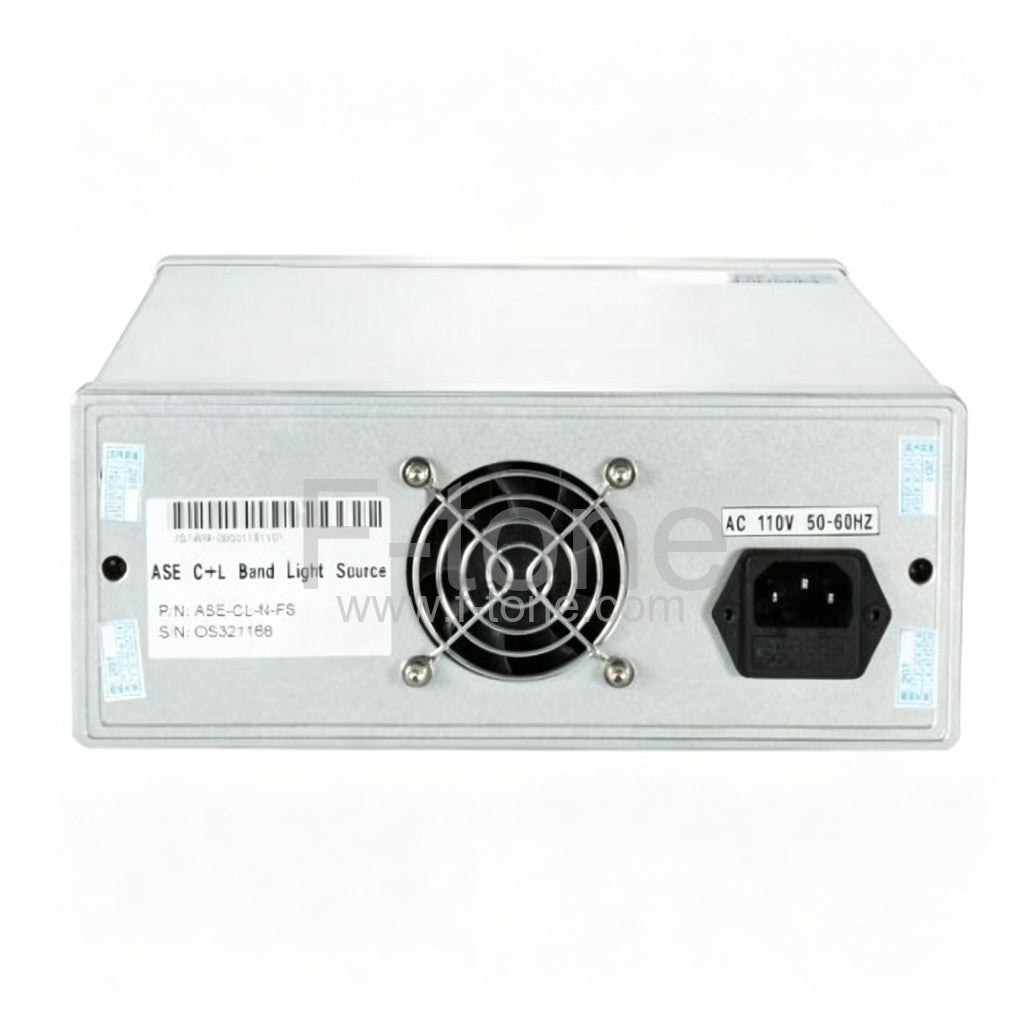

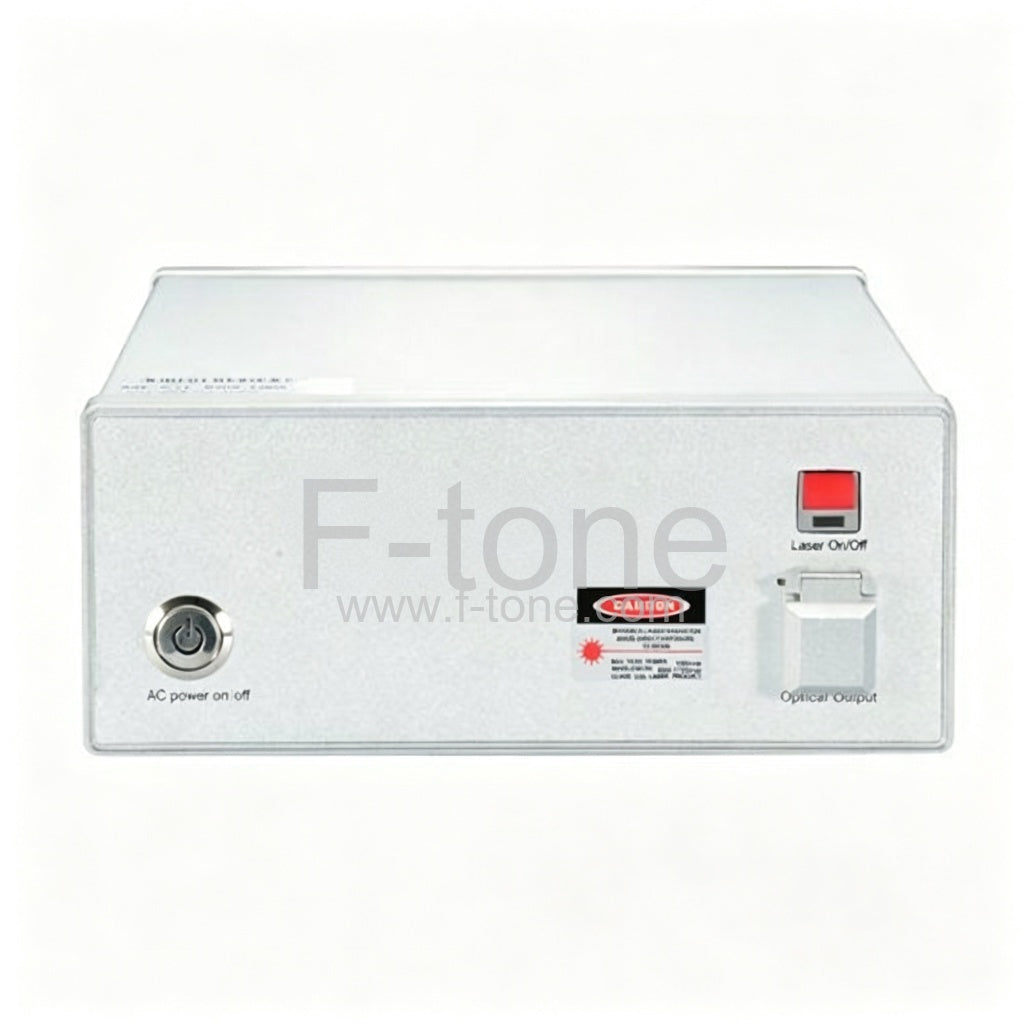

C+L Band ASE Broadband Light Source Wavalength 1525～1607nm Without GFF Bechtop
ASE light source is a hig stable, hig outpt power broadband light source. The new generation of ASE sources have no high frequency ripples, which makes them very useful for sensor interrogation applications. These broadband light sources have desktop or min size module package. F-tone provides C-band 、C+L band and broadband ASE. These are available with either a flattened spectral output for demanding applications, or a non-flattened response for less demanding or cost-sensitive applications. A range of output powers are available.
Application
- FBG Optical Sensor System
- Optical Communication
- Optical Passive device testing
- Spectrum analyses
Features
- High Precision ATC and APC Control Circuit
- High stability and reliability
- Low Flatness
- High output power
- Fiber communication equipment test
Typical Spectrum
output spectrum without GFF
output spectrum with GFF
Order Information
| ASE-CL | Type | GFF | Standard | Fiber Type | Output Power | Connector |
|---|---|---|---|---|---|---|
| M=Module D=Desk-top |
G=GFF N=Without GFF |
Without Display Power：Without Adjust |
S=SM Fiber P=PM Fiber |
10=10mw 20=20mw etc |
FC/UPC FC/APC etc |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
