Part Number: ATA-FC-FM

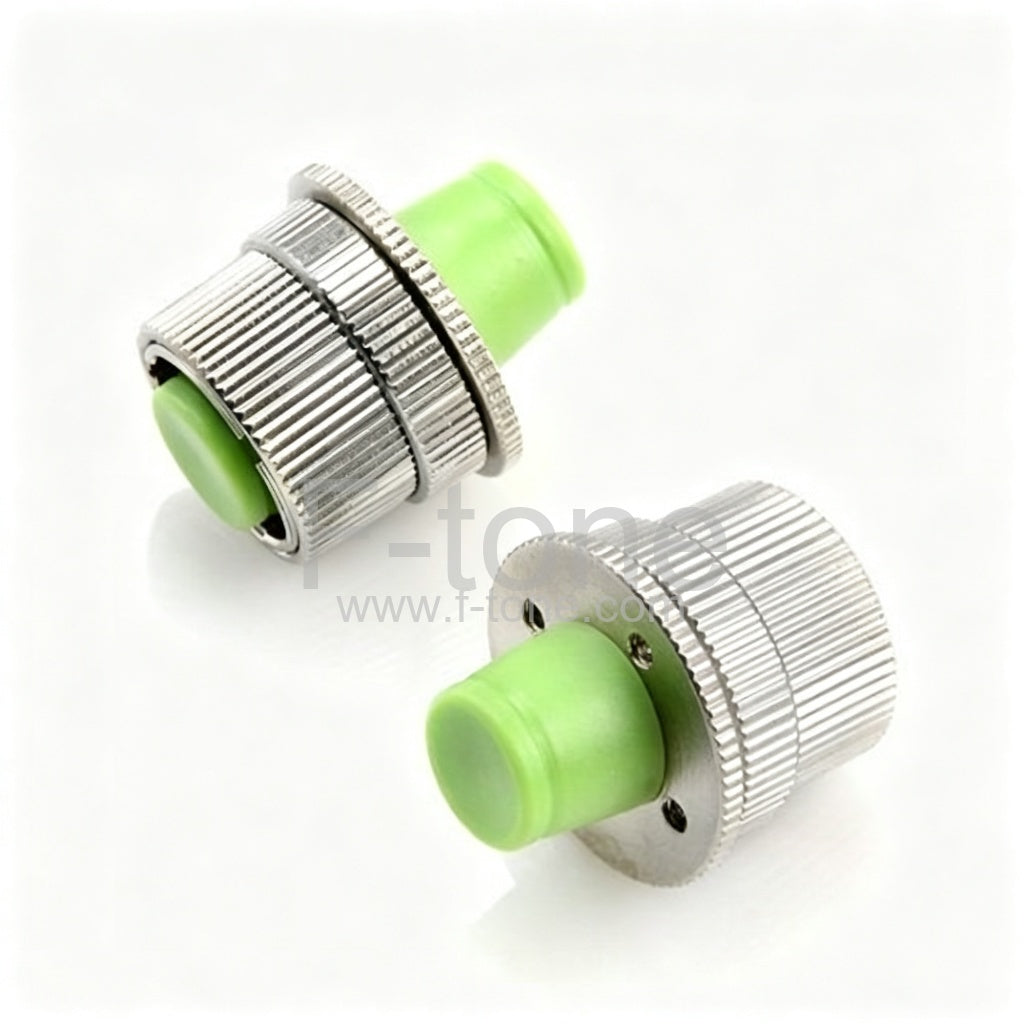

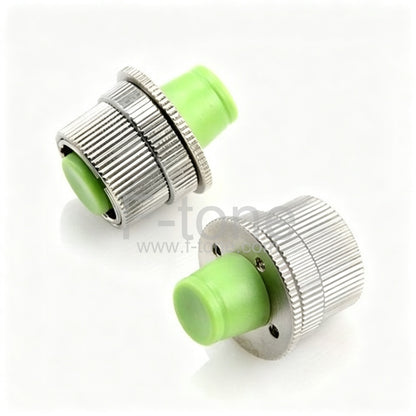

FC VOA Variable Fiber Optic Attenuator 1~30dB Range
As optical passive devices,F-tone attenuators are mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired level in the link without any changes on its original transmission wave.
| Fiber Connector | FC | Ferrule Type | Zirconia Ceramic |
|---|---|---|---|
| Connector Gender | Variable | Transfer Mode | Singlemode |
| Attenuation | 1~30dB | Operating Wavelength(nm) | 1260~1620(SM) |
| Attenuation Accuracy | ±0.8dB | Minimize Insertion Loss | <2.5dB |
| Polarization Dependent Loss | ≤0.2dB | Max Optical Input Power | 200mW |
| Humidity | 95%RH | Operating Temp Range | -40~80°C |
| Storage Temp Range | -40~85°C |
Highlights
- Low insertion loss & Low PDL
- Wide attenuation range 1dB to 30dB
- High stability & high reliability
The application of Imported A - grade ceramic insert enable the product with high stability , good reliability , high transmission speed and low insertion loss.
The FC attenuator from FS are designed to give the accurate attenuation required by the connected device and are available in a wide range of attenuation levels.

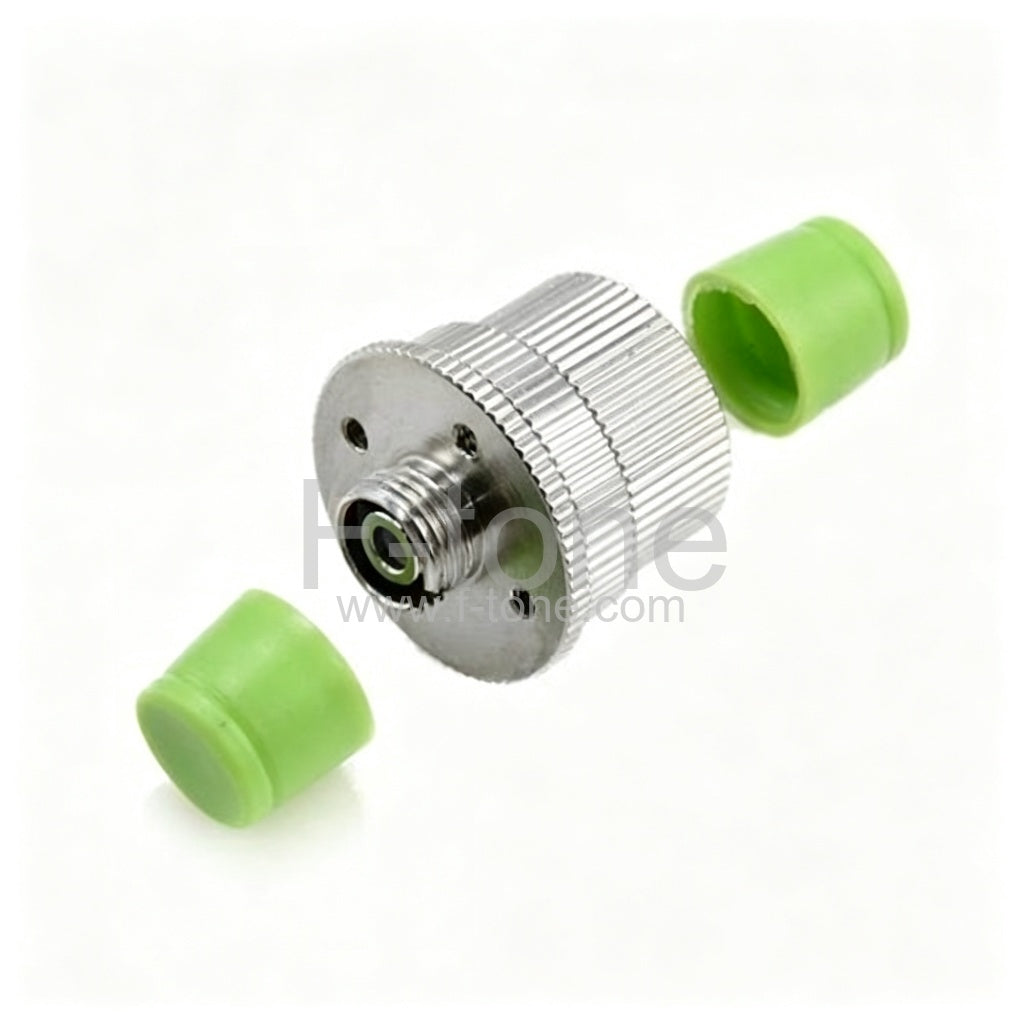

The FC attenuator from FS is designed for optical hardware to reduce the dB power, the plug type allows them to be used directly at the end of a patch cable, they also feature a dust cap on the tips for protection.
With the excellent characteristics, FC Variable Fiber Optic Attenuators can be used in fiber optical telecommunication system and optical transmission system. These attenuators can be applied in FTTH, CATV, WAN, fiber optical sensor and metropolitan area network. They are often used as the testing equipment.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
