AVAGO AFBR-1521CZ Compatible Domestic Alternative Optical Module
product presentation
The FT-1521CZ/2521CZ series fiber optic transceivers are designed for use with 650nm plastic optical fibers (POF). They provide high-performance and cost-effective fiber optic communication links for applications in industrial, power generation, medical, transportation, and gaming sectors, with an operating temperature rating of up to 95℃.
The FT-1521CZ/2521CZ series is fully compatible with AVAGO's AFBR-1521CZ/2521CZ series products. It supports industry-standard plastic optical fiber interfaces and features a horizontal configuration. These transceivers are compatible with 1mm-diameter plastic optical fibers and 200μm-diameter PCS (Plastic-Clad Silica) fibers. When paired with 1mm-diameter plastic optical fibers, the typical transmission distance reaches 110 meters.

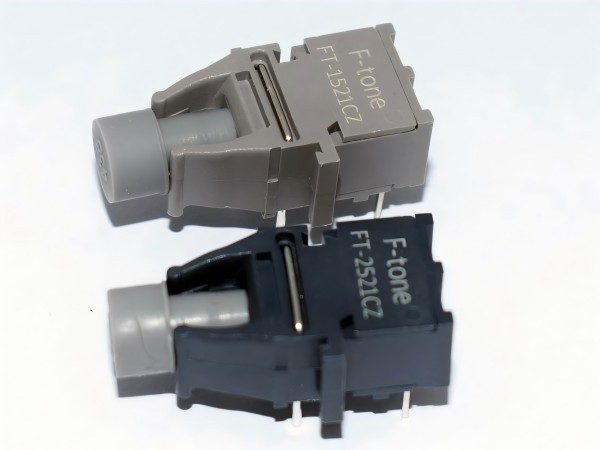

The FT-1521CZ is a transmitter, encapsulated with a high-power power LED chip featuring a peak wavelength of 650nm. When paired with a 1mm core diameter plastic optical fiber and driven by a 30mA current, it delivers a typical output optical power of -2dBm. The FT-2521CZ is a receiver, consisting of a high-gain transimpedance amplifier (TIA) integrated with a photodiode. Its output stage employs a rail-to-rail configuration, providing a final output of TTL levels. To enhance the stability of the receiver's output pulse width, the receiver chip incorporates an automatic pulse width calibration circuit, ensuring pulse width distortion is within ±30ns.
Product characteristics
● Data transfer rate: DC-5 MBd
● Power supply voltage supports 3.3V and 5V
● Typical transmission distance: 110 meters(Compatible with 1mm Plastic Optical Fiber)
● The output waveform and pulse width is stable
● Operating temperature range: -40℃ to 95℃
● Compliance with the RoHS criteria
Product application
● Factory automation
● Lan
● Audio and video applications / game applications
● Industrial network and fieldbus
● High-Voltage Isolation
Overall dimensions drawing (FT-1521CZ/2521CZ)
List of product models
|
Product model |
Description |
|
FT-1521CZ |
Transmitter |
|
FT-2521CZ |
Receive devices |
