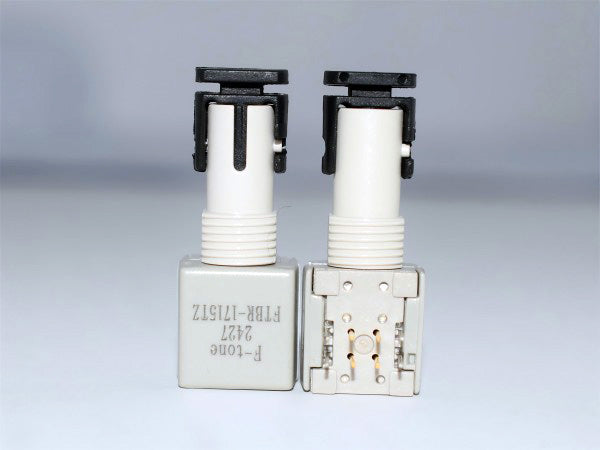

AVAGO AFBR-1715TZ Compatible DC-50MBd High-performance Optoelectronic Single-transmit Module
The FTBR-1715TZ series fiber optic transmitters, when used with 850nm multimode fibers, provide high-performance and cost-effective fiber optic communication links for industrial, power generation, medical, transportation, gaming applications and other fields. The FTBR-1715TZ fiber optic transmitters adopt 850nm VCSELs, integrating optical devices and driver ICs to achieve low-power-consumption devices, which are suitable for industrial applications with link distances up to several kilometers.
The FTBR-1715TZ series supports industry-standard ST fiber optic interfaces, with optional threading. The FTBR-1715TZ series is compatible with multimode fibers of various core diameters, including 50/125μm, 62.5/125μm, 100/140μm and 200μm.
The FTBR-1715TZ series, as transmitters, are packaged with high-power chips of VCSELs with a peak wavelength of 850nm.
Features
● Data transmission rate: DC-50MBd
● Single 3.3V power supply
● Integrated 850nm VCSEL, driver IC and transmitter with LVTTL input logic
● RoHS compliant
● Compatible with optical fibers of various core diameters
● ST connector with optional threading
● Meets industrial-grade temperature range: -40℃ to 85℃
● Low power consumption and high power output
Applications
● Factory automation
● Industrial networks and fieldbuses
● Audio-visual applications / gaming applications
● Local area network (LAN)
Transmitter specifications
Typical application diagram
Figure 1 Schematic Diagram of Typical Application Circuit of FTBR-1715TZ
