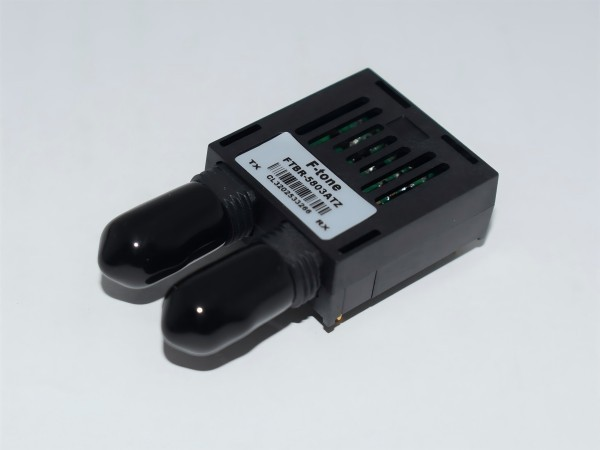

AVAGO AFBR-5803ATZ Compatible Domestic Alternative Optical Module
Product Features
● Uncooled laser diode with MQW structure
● Reach 2 km Transmission Distance
● Duplex Single Mode Transceiver 1x9 Footprint
● SC, FC or ST Optical Interface are Optional
● Single +3.3V Power Supply
● PECL/LVPECL Differential Inputs and Outputs
● PECL/LVPECL Signal Detection Output alternative
● Fast Ethernet and ITU G.957 Compliant
● Compliant RoHS and lead free
● Complies with Telcordia GR-468-CORE
● Operating case temperature:
Standard : 0 to +70℃
Extend : -20 to +85℃
Industrial : -40 to +85℃
Product Applications
● ATM
● SONET/SDH
● Fast Ethernet
● Switches
● Routers
● Hubs
Performance Specifications
Pin Definitions
Recommended Circuit 1
Recommended Circuit 2
Note: The split-loaded terminations for ECL signals need to be located at the input of devices receiving those ECL signals. The power supply filtering is required for good EMI performance. Use short tracks from the inductors L1/L2 to the module Rx VCC/Tx VCC. A GND plane under the module is required for good EMI and sensitivity performance
Package Diagram
Order Information
|
FTBR-5803Z |
Compatible with AVAGO AFBR-5803Z, Replaceable with AVAGO AFBR-5803Z |
|
FTBR-5803TZ |
Compatible with AVAGO AFBR-5803TZ, Replaceable with AVAGO AFBR-5803TZ |
|
FTBR-5803AZ |
Compatible with AVAGO AFBR-5803AZ, Replaceable with AVAGO AFBR-5803AZ |
|
FTBR-5803ATZ |
Compatible with AVAGO AFBR-5803ATZ, Replaceable with AVAGO AFBR-5803ATZ |
|
FTBR-5803AQZ |
Compatible with AVAGO AFBR-5803AQZ, Replaceable with AVAGO AFBR-5803AQZ |
|
FTBR-5803ATQZ |
Compatible with AVAGO AFBR-5803ATQZ, Replaceable with AVAGO AFBR-5803ATQZ |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
