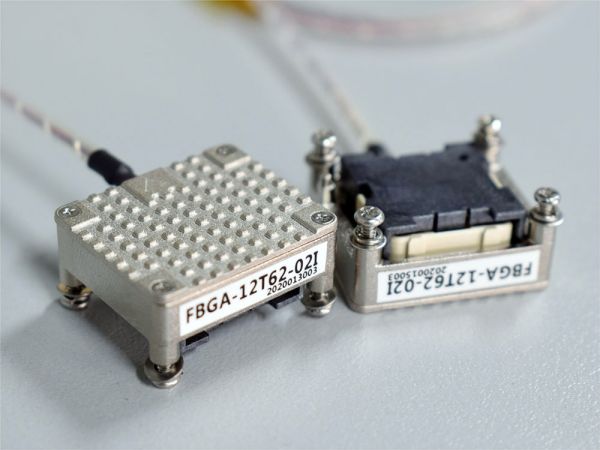

BGA 6.25G Twelve-Channel Parallel Transmitter Optical Module

BGA 6.25G Twelve-Channel Parallel Transmitter Optical Module

View full details

BGA 6.25G Twelve-Channel Parallel Transmitter Optical Module

Characteristics

  • Typical transmission rate: 6.25G (single channel)
  • Micro socket with plug-and-play BGA packaging
  • Twelve-channel parallel signal transmission, emission optical module
  • Using VCSEL array, featuring low power consumption
  • Operating temperature: -40℃ to +70℃
  • 3V single power supply
Application

Very short-distance high-speed data communication connections (board-level interconnection, rack-level interconnection, system-level interconnection), interconnection between servers and storage arrays.

Main performance indicators
Item Value
Typical Data Rate 6.25Gbps
Central Wavelength 850nm
Average Transmit Optical Power -5~+1dBm (-40℃~+70℃)
Supply Voltage 3.3V
Operating Temperature -40℃~+70℃
Order Information
FBGA-12T62-02 x -xx -xx -xx
F-tone BGA 12-channel parallel transmitter optical module, 6.25G per channel Blank: Commercial Grade

I: Industrial Grade

M: Military Grade		 100mm pigtail length (customizable) MT: MT pigtail output

MPO: MPO pigtail output		 GC: Full domestic

Blank: Non-full domestic



This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
