Part Number: C-OM4-LC-LC-SX-FM

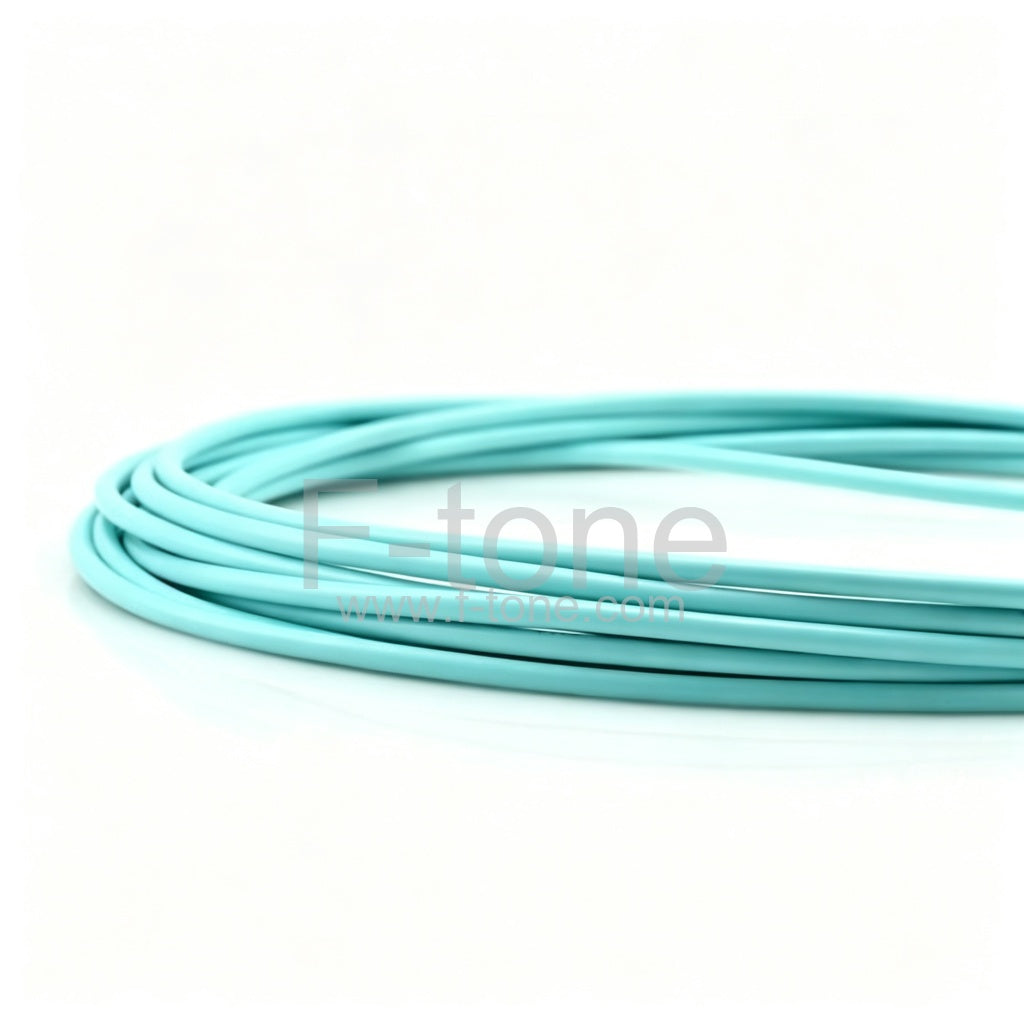

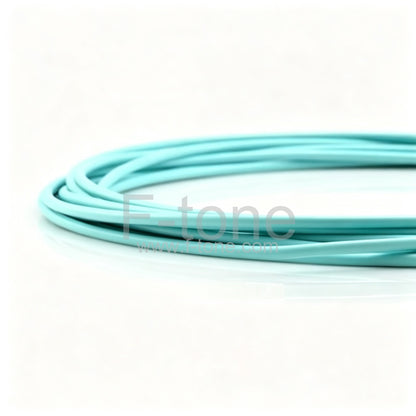

LC-LC Simplex OM4 Multimode Bend Safe Curl Fiber Patch cord
Curl Fiber patch cord is retractable and usable in household wiring and wiring for movable parts of machines.The curl length(cm) and total length can be customed according to the customer’s requirements in F-tone.
The meters is point to the length of the cable after straightening. Bending diameter, Bending laps could be customized according to the total length you required.
Features
- It can stretch several times without deteriorating the optical characteristics.
- It can adjust length of cable
- It is durable enough to be used for movable parts of machines and as a connecting cord for instruments.
Applications
- Telecommunication, remote ONU & FTTX.
- Data communication, CATV & test equipment.
- Fast deployable local area network.
- Fast In‐pipe wiring.
- Robotic arm sensor communication
Specifications
| Cable OD(mm) | 2 or 3 |
|---|---|
| Curl OD(mm) | 18-22 |
| Curl Length(cm) | According to the customer’s requirements |
| Total Length(cm) | According to the customer’s requirements |
| Faber Type | Bendsafe G657B |
| Cable Material | TPU（white） |
| Connector Type | LC/UPC |
| Insertion Loss(dB) | <1dB for 100 turns |
| Reture Loss(dB) | UPC>=50,APC>=60 |
| Operating Temperature(℃) | -40℃~+80℃ |
| Storage Temperature(℃) | -45℃~+85℃ |
| Fireproof standard | IEC 60332-3 |
| RoHs 2002/95/EC directive |

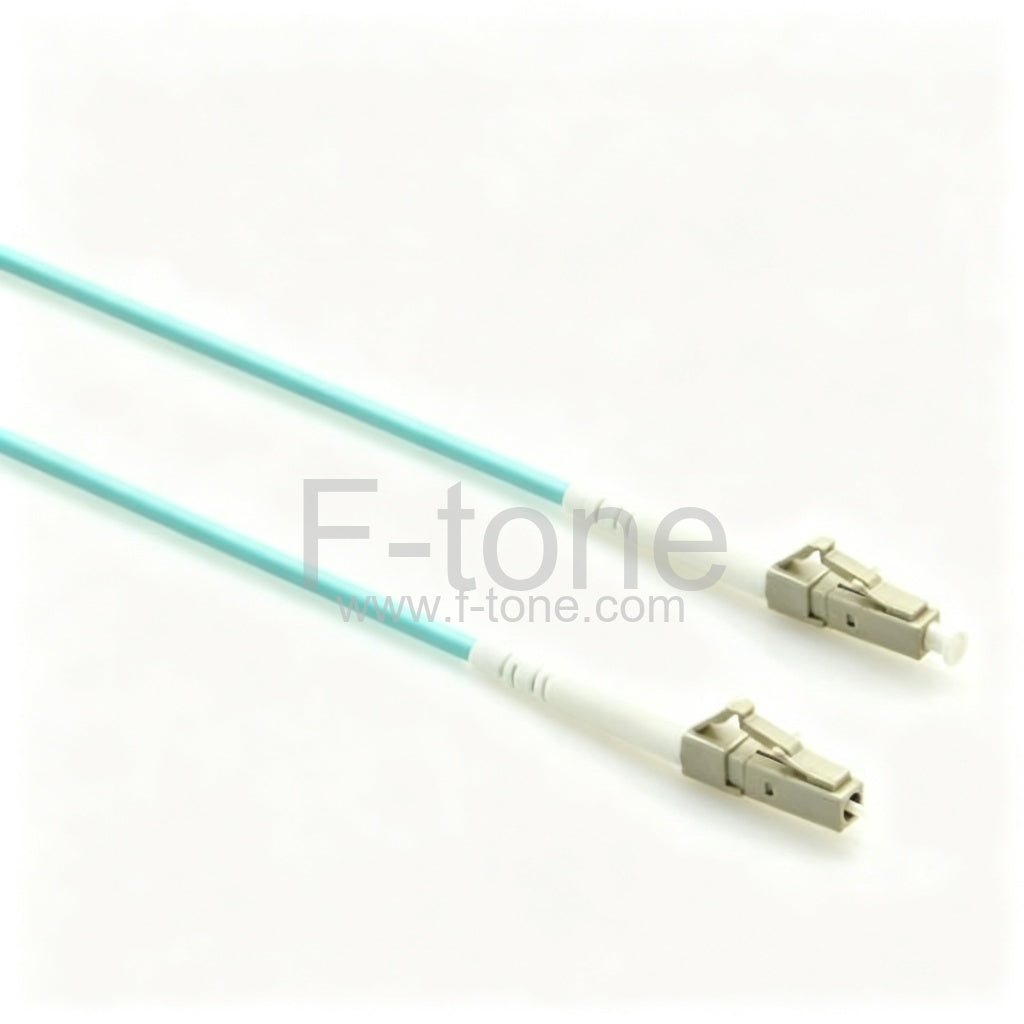

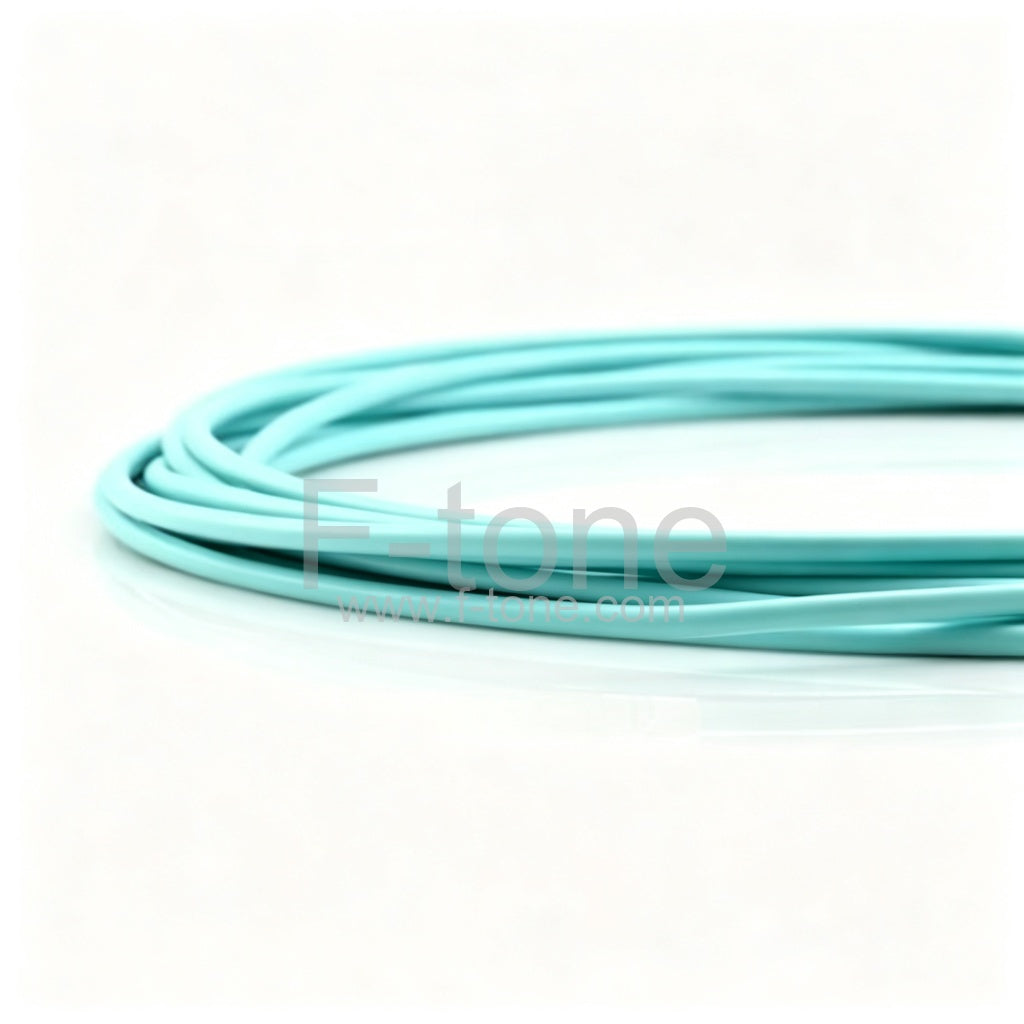

Sample Picture
Application Drawing
Mechanical Drawing
F-tone is an professional manufacturer & supplier of Curl Fiber Patch , it could be customized in any length. If you have any question about it,please feel free contact us at [email protected]
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
