Part Number: C5E-UTPPVCRE-305M
Cat5e Bulk Ethernet Network Cable UTP, Solid, PVC, 24AWG, 100MHz
Cat5e cable is a "twisted pair" network cable used for 1000BASE-T Ethernet applications at speed of up to 100MHz of bandwidth. This cable is preferred for more advanced networking installations where a higher bandwidth than normal is required.
Product Details
| Cable Type | Cat5e | Shielding Type | UTP |
|---|---|---|---|
| Wire Gaugce | 24AWG | Cable Color | Red |
| Cable Jacket | PVC | Cable Length | 305m(1000ft) |
| Conductor | Solid bare copper | Twisted Pairs | 4 pair |
| Frequency Bandwidth | 100MHz | Max. Data Rate | 1000Mbps |
| Operating Temperature | -10C to 60C(14F to 140F) | Installation Temperature | 0C to 50C (32F to 122F) |
Product Highlights

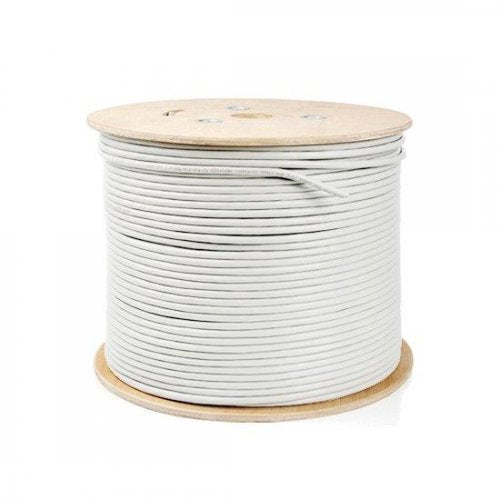

Cat5e UTP Solid PVC Cable, Spool
- Rated for any 10Base-T, 100Base-T, and 1000Base-T network
- Comes in a convenient spool with length of 305m(1000 feet)
- Meets IEEE 802.3af and IEEE 802.3at for PoE applications
- Gray, blue, white, red and yellow are available
Wide range color options for easy network identification
- Descending length cable markings
Easy identification of cable length for easy installation
Innovative Craftsmanship for Maximum Performance and Security
Solid Cable Design
Simple installation, durable when it comes to impact and abrasion.
PE Insulation
Easy to stretch with low resistance and allowing for a further transmission
4-Pair 8-Core Twisted Pair
High-precision twisted cable, reducing resistance and allowing for a better flow of electrons.
PVC Jacket
Built to withstand high levels of stress, pulling, and pushing.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
