Part Number: Cat6-UTP-PVC-FM

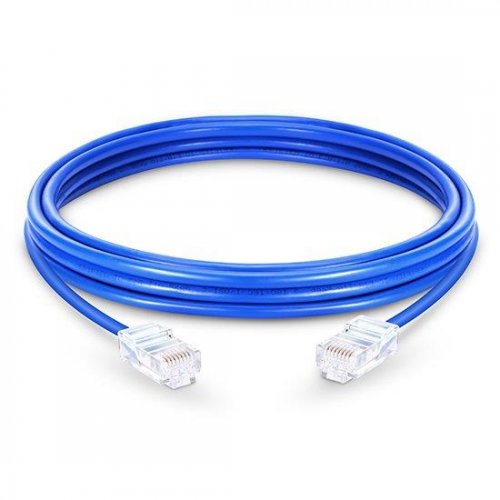

Cat6 Unshielded Twisted Pair(UTP) PVC Patch Cable
UTP is Unshielded Twisted Pair and STP is Shielded Twisted Pair. STP cable is wrapped in metal foil or braid. UTP and STP have the same Ethernet communication performance, and UTP is accepted for residential and general commercial installation.
Key Features
- Meet International standard: ISO/IEC 11801 2nd edition (2002) and ISO/IEC 11801 Amendment 2 (2010)
- Features UL rated, PVC stranded UTP cable along with long-body 50 micron gold RJ connectors and moulded color-matching boots
- Performance exceeding Category 6 specifications up to 250MHz
- Fully moulded, 4 twisted pair stranded 24 AWG assemblies
- Fully backward compatible with Cat.5/Cat.5E networks
- Maximum throughput, reliability and performance in your IT network
- Ideal for high speed Gigabit Ethernet systems with fault-free data/voice transmission
Specifications
- NEXT：≥54.0 dB
- Power Sum NEXT ：≥54.0dB
- FEXT：≥43.1dB
- Power Sum FEXT : ≥40.1 dB
- Attenuation：≤0.2 dB
- Return Loss ：≥23.0dB
- Gauge ：FCC PART 68, Subpart F and IEC-60603-7 compliant
- Pair Count ：4-Pair individually color coded with filler and PVC jacket
- Sequence ：Wiring sequence T568A/B
- Durability：1000 mating cycles
- RJ45 Plug ：Polycarbonate, FCC Part 68 Subpart F, UL94V-0
Applications
- Ideal for high speed Gigabit Ethernet systems with fault-free data/voice transmission
- This cable work with CAT6 Patch Panels, CAT6 Jacks, Wallplates, Surface-Mount Housings, Snap Fittings etc
- This cable work with CAT6 Patch Panels, CAT6 Jacks, Wallplates, Surface-Mount Housings, Snap Fittings etc.
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
