Part Number: CATV-EDFA-M-O14

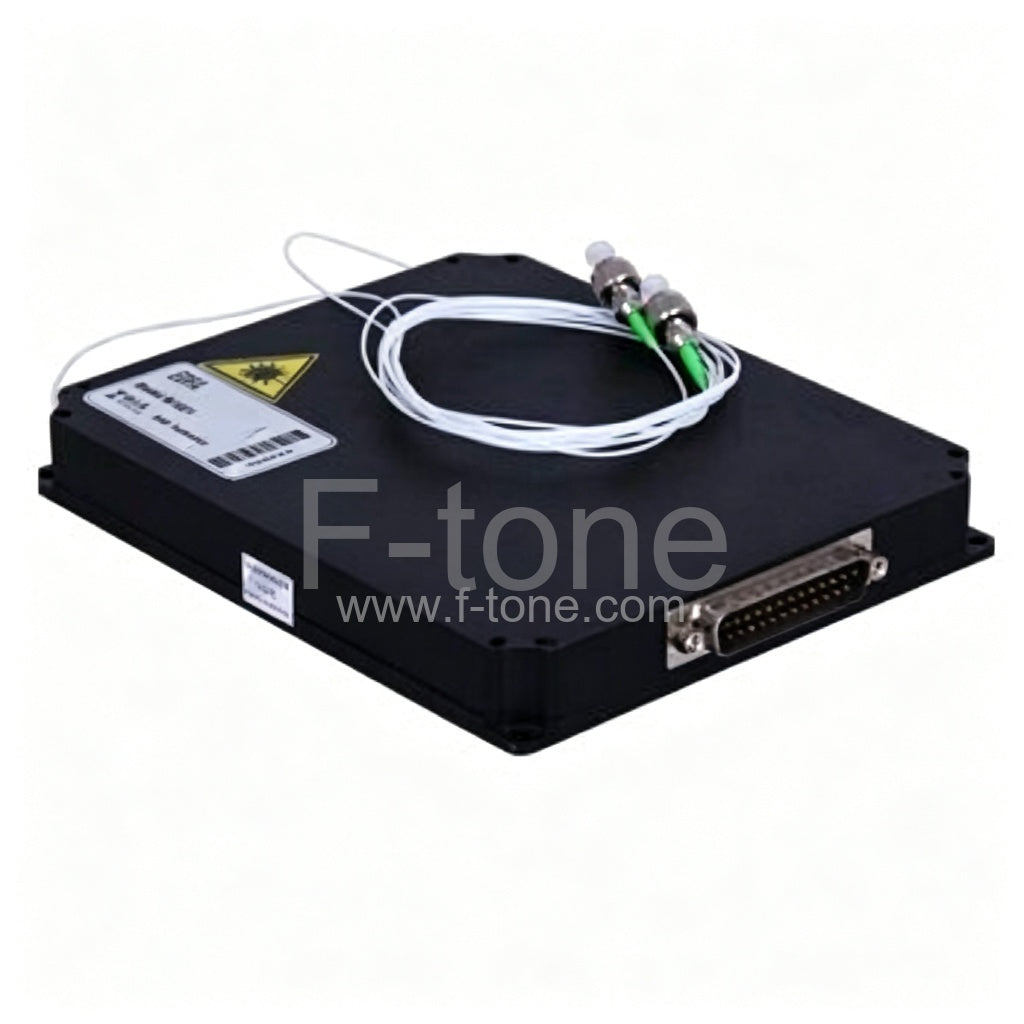

14dBm Output Compact Booster EDFA Module for CATV System
This Compact Booster EDFA Module for CATV System provides high quality performance in reliability, noise level and output power. It is an ideal building block for photonic subsystems and OEM system integration. Four different control modes (APC, AGC, ATC and ACC) offer maximum flexibility in meeting different system requirements. Pump laser protection and alarms are equipped to ensure the reliabilty and safety of the device.
The module is designed for optical communication and CATV systems. Compact footprint makes it easy to be installed where it is needed, adding to flexibility in network design. To achieve high performance, world brand pump lasers and erbium-doped fibers are used; optical isolators are added at both input and output. It requires only a single 5V DC power supplyfor operation.
The optical circuit design especially for Analog CATV system as follows: (1) Low noise ensure better CNR for Analog system is sensitive for noise. (2) Good Spectral flatness in the operating signal to ensure better CSO. (3) Good Spectral flatness in whole C- bands to fit the upgrade in future NGB.
Features
- OEM is optional
- Single 5V DC operation
- Output Power: 14dBm
- Input Power: -3~10dBm
- Extremely low CSO: <-70dBc
- Dimension: 150mm*125mm*19mm
- Wide range of working temperature
- APC, AGC, ATC and ACC control modes
- Low noise figure: less than 4.5 dB at 0dBm input
- High stability and reliability: MTBF＞100000 hours
- Perfect status monitoring interface: RS-232 or RS-485
Application
- Laboratory
- CATV Networks
- Booster amplifier
- Fiber Optic Sensors
- Optical communications
- Optical distributed system
- Video optical transmission system
- Rack mount optical amplify system
Mechanical Dimension
150×125×19mm
Order Information
| Category | Structure | Application | Input Power | Output Power | Output port | Voltage | Interface |
|---|---|---|---|---|---|---|---|
| M: Module | 10: Mechanical Dimension: 150×125×19mm |
2: Fiber Amplifier | 1: -3~10dBm 9: other |
13: 13dBm … 24: 24dBm |
1: 1port 2: 2ports |
7: 5V DC 8: 3.3V DC |
1: SC/UPC 2: SC/APC 3: FC/UPC 4: FC/APC 5: LC/UPC 6: LC/APC |
※If you need custom service, such as more output ports or some special input/output power value for this module, pls send emails to [email protected], we will contact you within 24 hours.
Optical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Wavelength | λc | 1530 | 1550 | 1562 | nm |
| Output power (1) | Po | ------ | 14 | dBm | |
| Input power | Pi | -3 | ------ | 10 | dBm |
| Gain | G | ------ | ------ | dB | |
| Noise Figure (2) | NF | ------ | 4.5 | ----- | dB |
| Output power stability | ΔPo | ----- | ±0.05 | ±0.1 | dB |
| Return Loss | RL | ------- | ------- | -45 | dB |
| PDG | PDG | ------ | ------- | 0.3 | dB |
| PMD | PMD | ------ | ------- | 0.5 | ps |
(1):Output power and dual output is optional.
(2):Test at 0dBm input
Electric Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Power Supply | Vps | 3.0/4.5 | 3.3/5.0 | 3.3/5.0 | VDC |
| Consumption※ | P | ----- | ---- | 20 | W |
※Actual consumption depend on output power and environment temperature.
Environmental Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Operating temperature | Tw | -5 | ----- | 60 | ℃ |
| Storage temperature | Ts | -40 | ----- | 80 | ℃ |
| Humidity | ------ | 10 | ------ | 85 | % |
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
Important Notice:
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
