Part Number: CCWDM-Dx-X

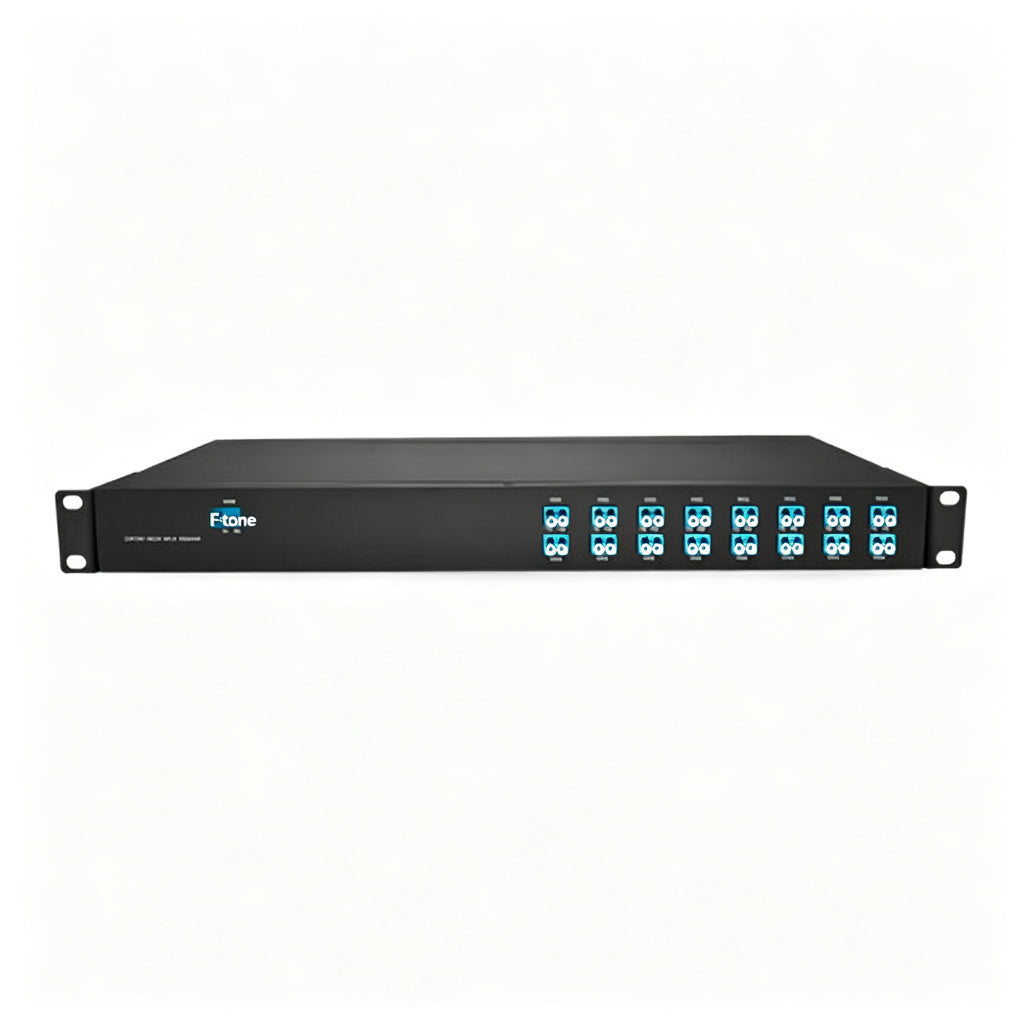

CCWDM Mux Demux, 4/8/16/18 Channels Dual Fiber, Optional Connectors and Housing
Compact coarse wavelength division multiplexers (CCWDM Mux) is the mini version of CWDM Mux. Compared with traditional CWDM technology, CCWDM technology uses free-space optics platform which can significantly improve optical performance, in a package less than 1/4 the size of conventional CWDM modules. Main advantages of CCWDM Mux are high wavelength accuracy and stability, low insertion loss, high isolation and low PDL(polarization dependent loss). It's protocol and rates transparent supporting such applications as the CWDM system, PON networks, and CATV Links.
| Number of Channel | 4/8/16/18 | Wavelength | 1270-1610nm |
|---|---|---|---|
| Channel Spacing | 20nm | Channel Bandwidth | ±6.5nm |
| Line Type | Dual fiber | Technology | Free space |
| Connector | LC/SC/FC/ST, UPC/APC polish | Housing | FTU/1U rack/ABS module |
| 1310nm Port Pass Band Width | 1260nm~1360nm | 1550nm Port Pass Band Width | 1520nm~1620nm |
| Operating Temperature | -40°C~+85°C | Storage Temperature | -40°C~+85°C |
Customized Service
- Ultra low insertion loss and high channel isolation
- Extended temperature range and high reliability
- Applicable to CWDM system and optional special service
The CCWDM Mux adopts Free-Space technology, which uses light propagating in free space to wirelessly transmit data. Inside the device, adjacent signal channels are cascaded by parallel beam instead of the fiber. This saves a lot of space for package box, and the unique workmanship also helps CCWDM Mux Demux with low insertion loss.
Tips
This product belongs to F-tone Networks' optical components product line. For detailed specifications, please contact our sales team. Thank you!
