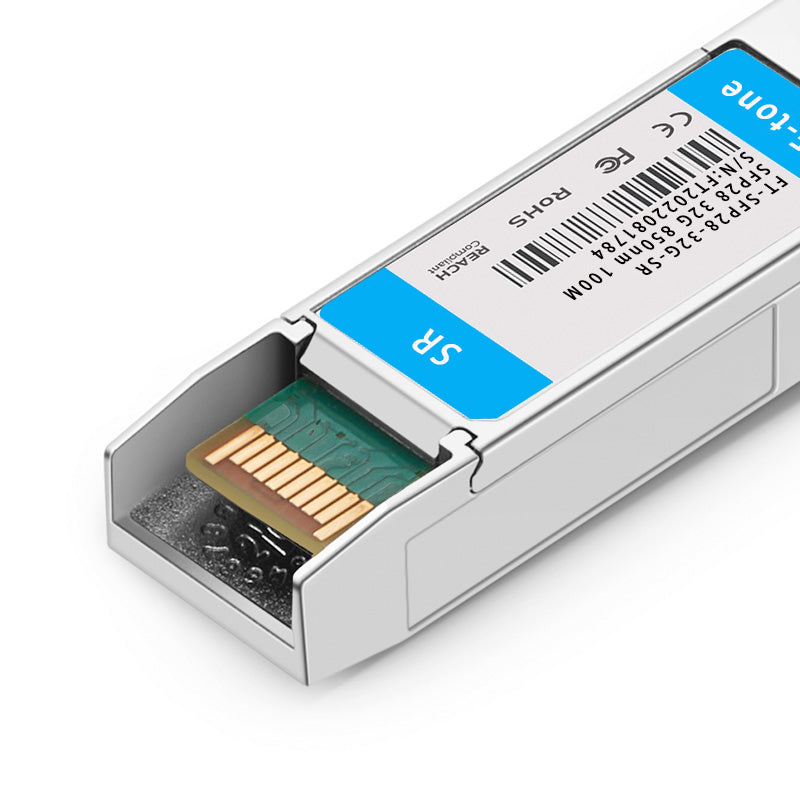

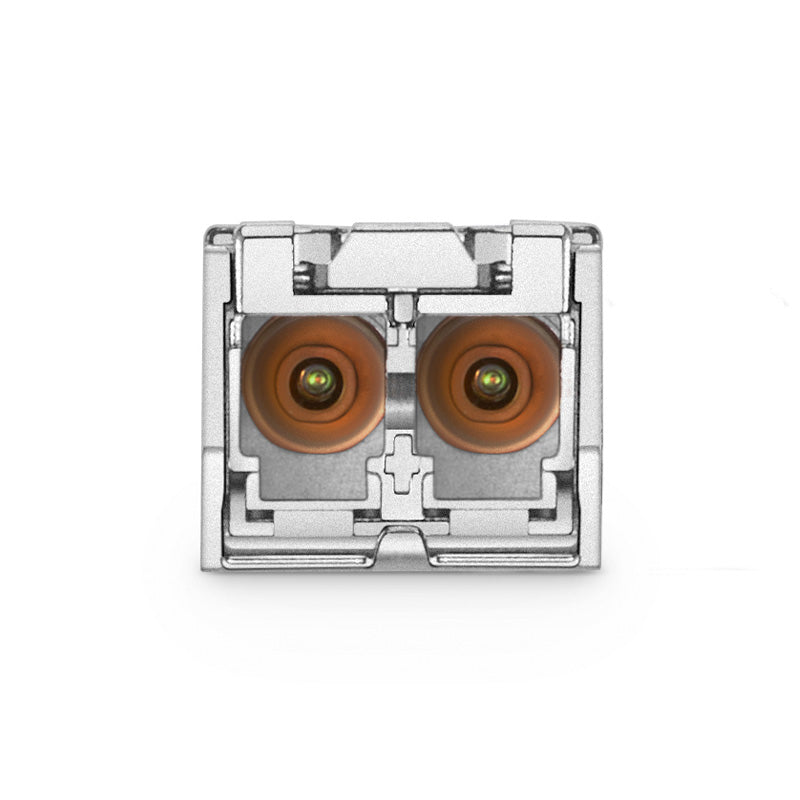

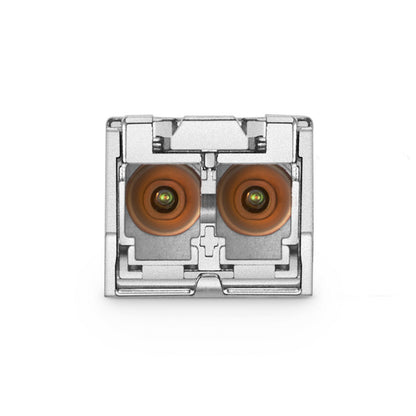

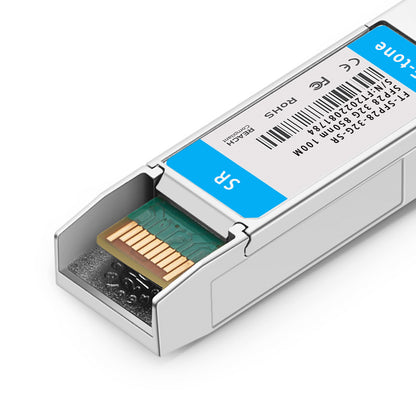

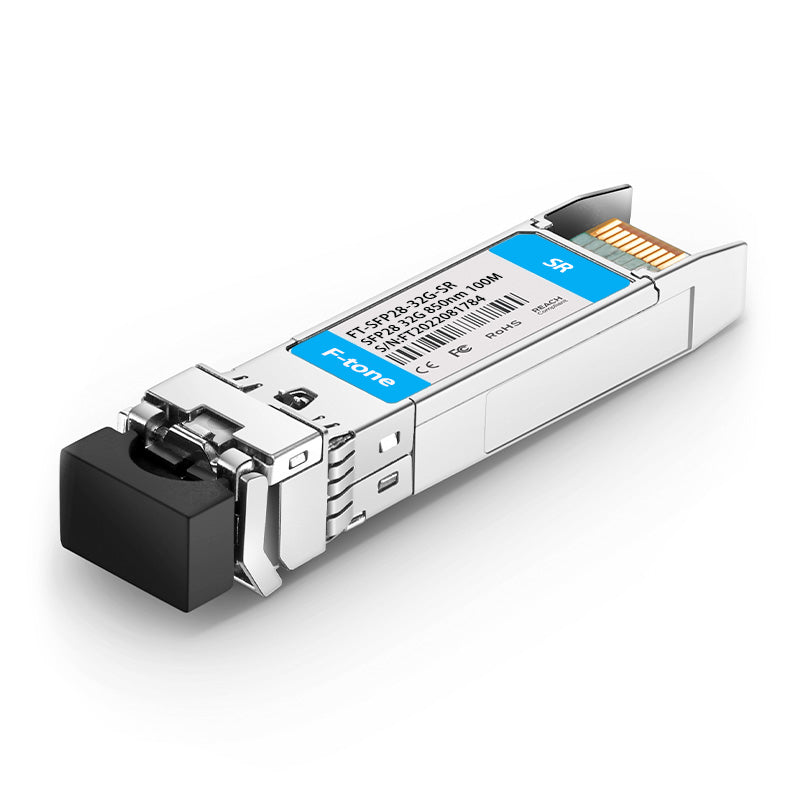

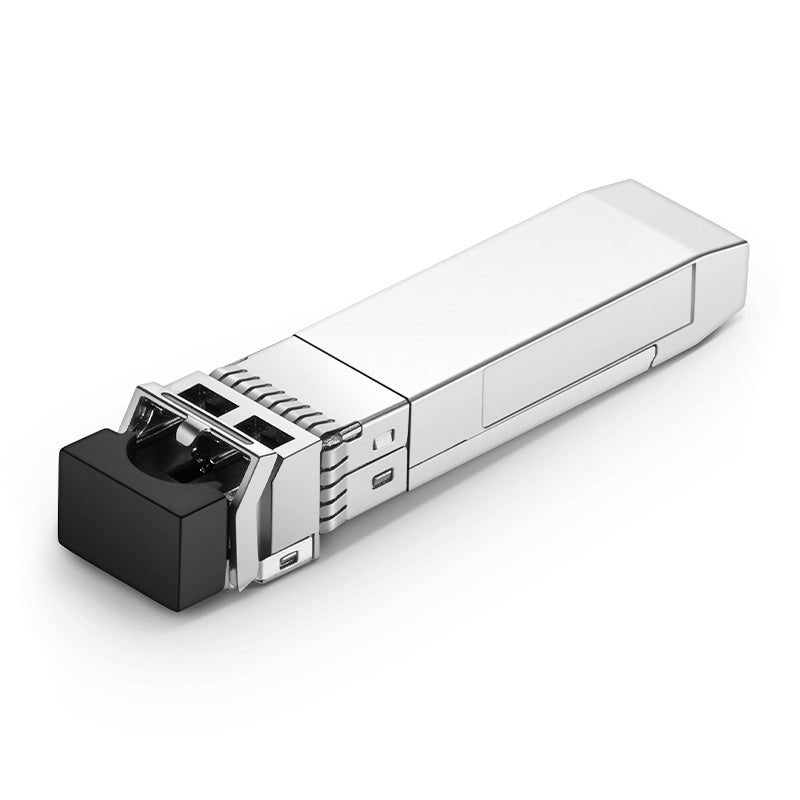

Cisco Compatible DS-SFP-FC32G-SW 32G Fibre Channel SFP28 850nm 100m DOM LC MMF Transceiver Module

Cisco Compatible DS-SFP-FC32G-SW 32G Fibre Channel SFP28 850nm 100m DOM LC MMF Transceiver Module

View full details

Cisco Compatible DS-SFP-FC32G-SW 32G Fibre Channel SFP28 Transceiver Module (MMF, 850nm, 100m, LC, DOM)

Cisco  DS-SFP-FC32G-SW Compatible 32G Fibre Channel SFP28 is equipped with an LC duplex connector, reaching a link of 100m over multimode fiber (MMF) at a wavelength of 850nm.The 32G Fibre Channel transceiver complies with SFP+ MSA and 28.05/14.025/8.5Gb Fibre Channel specifications. DOM/DDM (digital diagnostics monitoring) function is supported on the 32G Fibre Channel SFP28  optic transceiver to achieve real-time operating parameters monitoring.

Part Number

FT-SFP-FC32G-SW

Vendor Name

F-tone

Form Factor

SFP28

Data Rate

28.05Gbps

Wavelength

850nm

Distance

100m

Connector

LC Duplex

Optical Components

VCSEL 850nm

Media

MMF

DOM Support

Yes

TX Power

-6.7~ 2dBm

Receiver Sensitivity

< -10.2dBm

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

MSA Compliant



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

View all

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

View all

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
