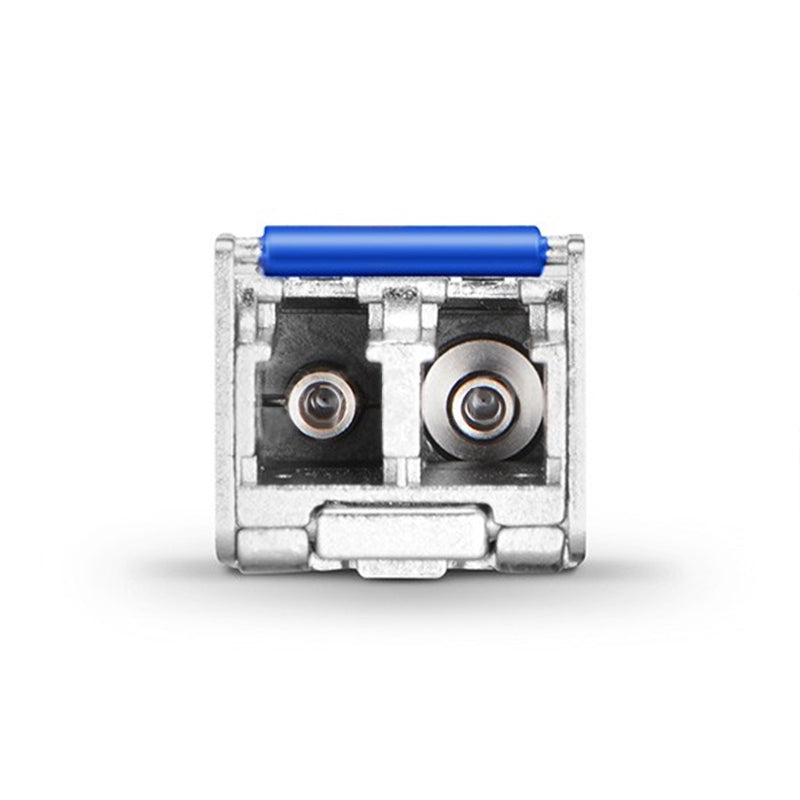

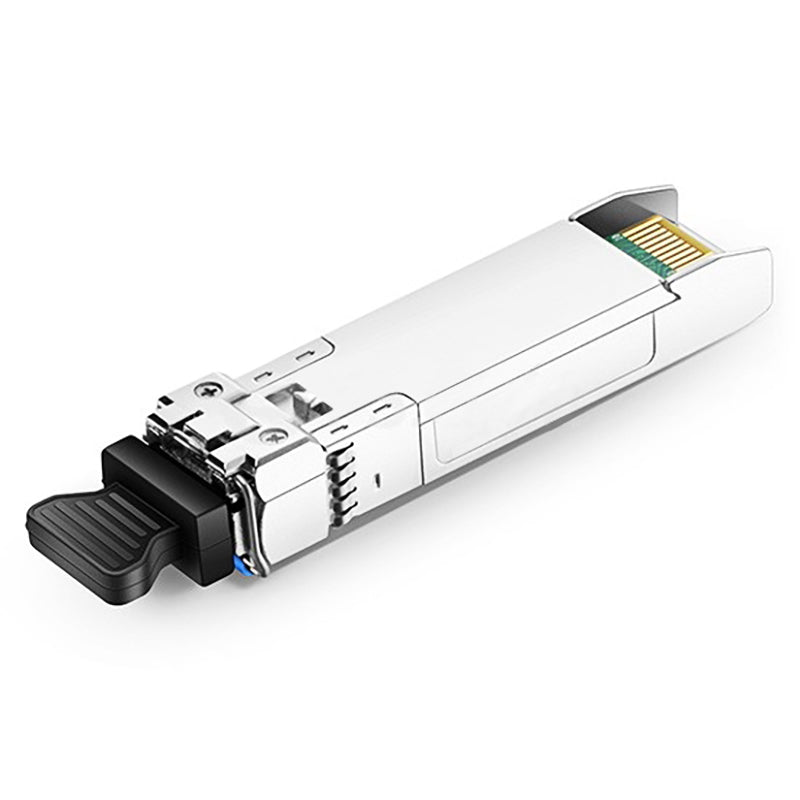

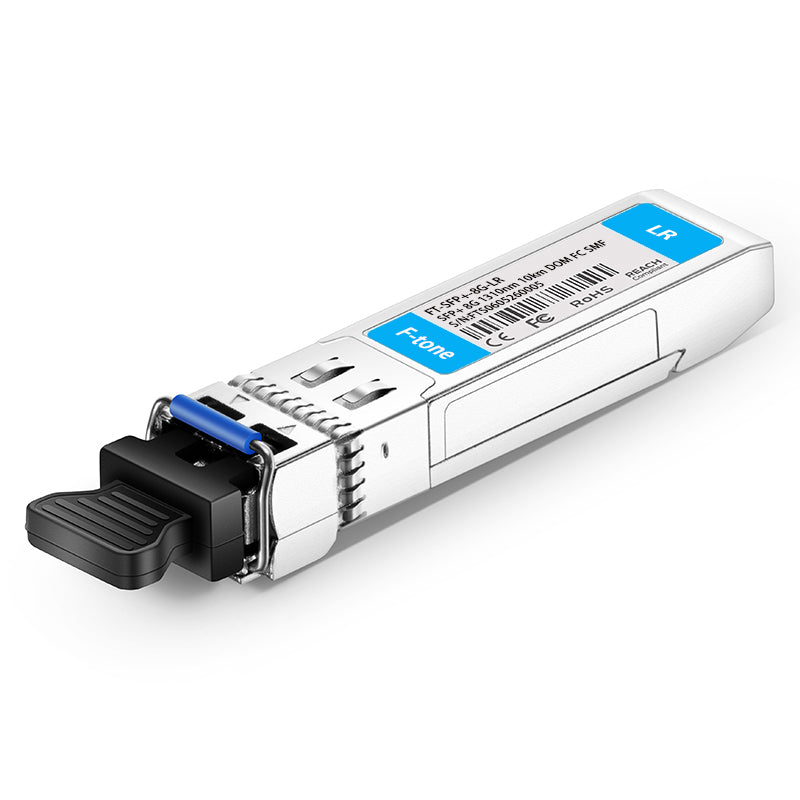

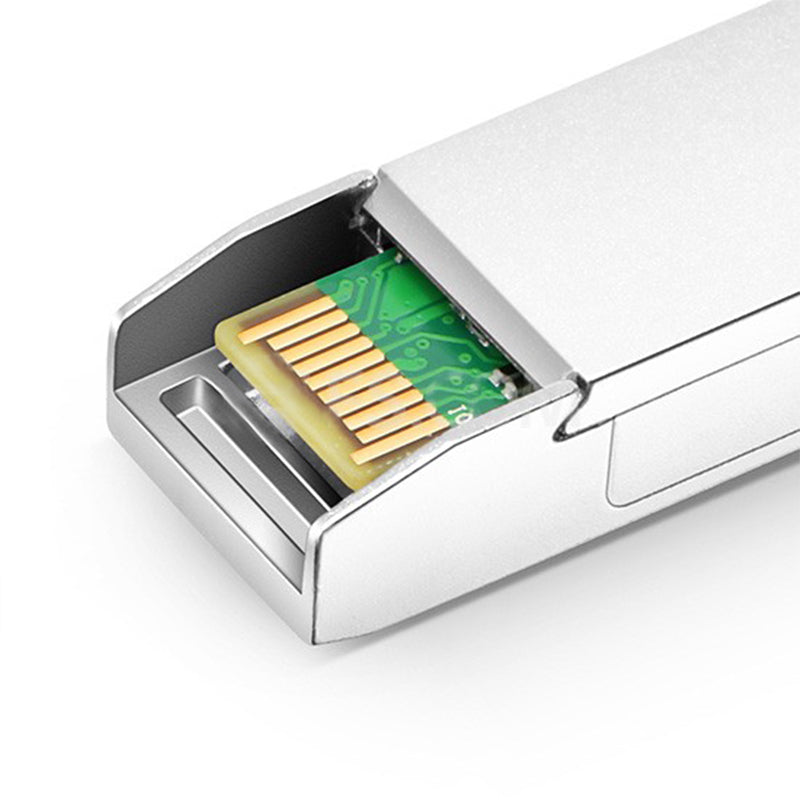

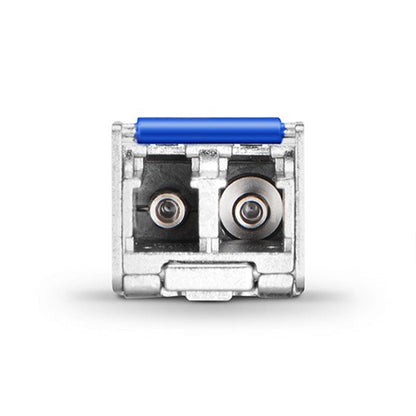

Cisco Compatible DS-SFP-FC8G-LW 8G Fibre Channel SFP+ 1310nm 10km DOM LC SMF Transceiver Module

Cisco Compatible DS-SFP-FC8G-LW 8G Fibre Channel SFP+ 1310nm 10km DOM LC SMF Transceiver Module

View full details

Cisco DS-SFP-FC8G-LW Compatible 8G Fibre Channel SFP+ Transceiver Module (SMF, 1310nm, 10km, LC, DOM)

The Cisco DS-SFP-FC8G-LW Transceiver Module is a high-quality transceiver that is designed to enable a 10km connection at speeds of up to 8Gbps over single-mode fiber optic cables, using 1310nm wavelength. Additionally, the module features digital optical monitoring (DOM) capabilities that allow for real-time monitoring of the transceiver's performance. The DS-SFP-FC8G-LW transceiver module is tested for complete compatibility with all Cisco networking devices.

Part Number

FT-SFP-8G-LW

Vendor Name

F-tone

Form Factor

SFP+

Data Rate

8.5Gbps

Wavelength

1310nm

Distance

10km

Connector

LC Duplex

Optical Components

DFB 1310nm

Media

SMF

DOM Support

Yes

TX Power

-8 ~ 0dBm

Receiver Sensitivity

< -15dBm

Commercial Temperature Range

0 to 70°C (32 to 158°F)

Protocols

MSA Compliant



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

View all

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

View all

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
