Cisco LWDM-SFP25G-86.66 Compatible 25G LWDM SFP28 1286.66nm 10km DOM LC SMF Optical Transceiver Module

Cisco LWDM-SFP25G-86.66 Compatible 25G LWDM SFP28 1286.66nm 10km DOM LC SMF Optical Transceiver Module

View full details

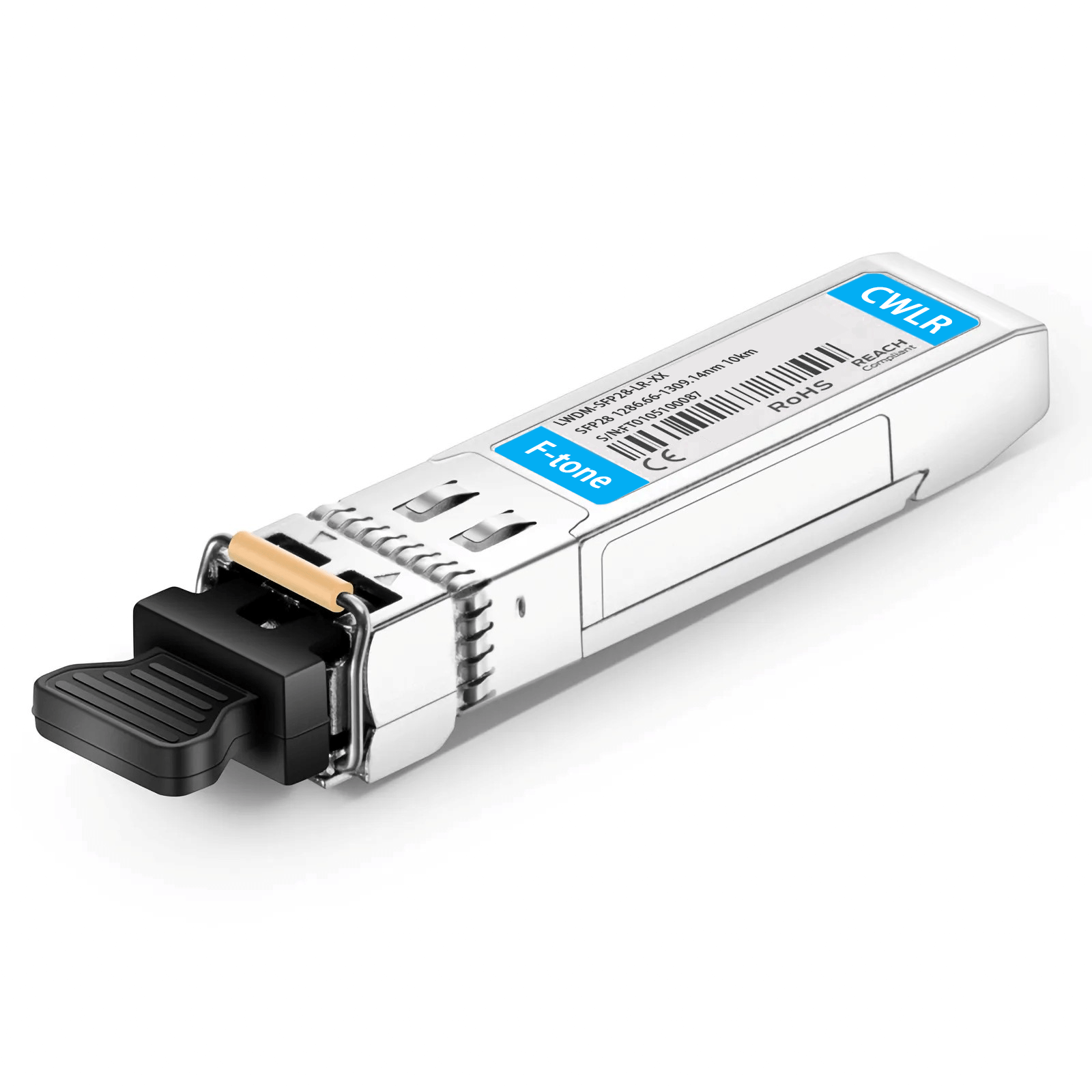

Cisco LWDM-SFP25G-86.66 Compatible 25G LWDM SFP28 1286.66nm 10km DOM LC SMF Optical Transceiver Module

F-tone Networks's 25G LWDM SFP28 transceiver equipped with DFB+PIN components, supports a maximum transmission link of up to 10km via the OS2 single-mode fiber. It features powerful DDM functionality, allowing effective diagnostics to optimize network performance. Meanwhile, LWDM's working wavelengths are located at intervals of 800GHz with near-zero dispersion. The 25G LWDM SFP28 transceiver is fully compliant with the SFP28 MSA, SFF-8431, SFF-8472, and IEEE 802.3CC standards. When paired with an LWDM multiplexer/demultiplexer, the 25G LWDM transceiver becomes the ideal choice for 5G front-end transmission. F-tone Networks can supply all the necessary products for users.

Part Number:

LWDM-SFP25G-86.66

Vendor Name

F-tone Networks

Form Factor

SFP28

Data Rate:

25Gbps

Wavelength:

1286.66nm

Distance:

10km@G.652

Connector

LC Duplex

Cable Type

OS2 SMF

Transmitter:

DFB

Receiver Type:

PIN

TX Power

0~+6dBm

Receiver Sensitivity

<-13dBm

Power Consumption:

≤1.5W

Modulation Format:

NRZ

DDM:

Supported

Bit Error Ratio (BER):

1.00E-12

Protocols:

MSA Compliant, CPRI, eCPRI

Warranty:

5 Years

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
