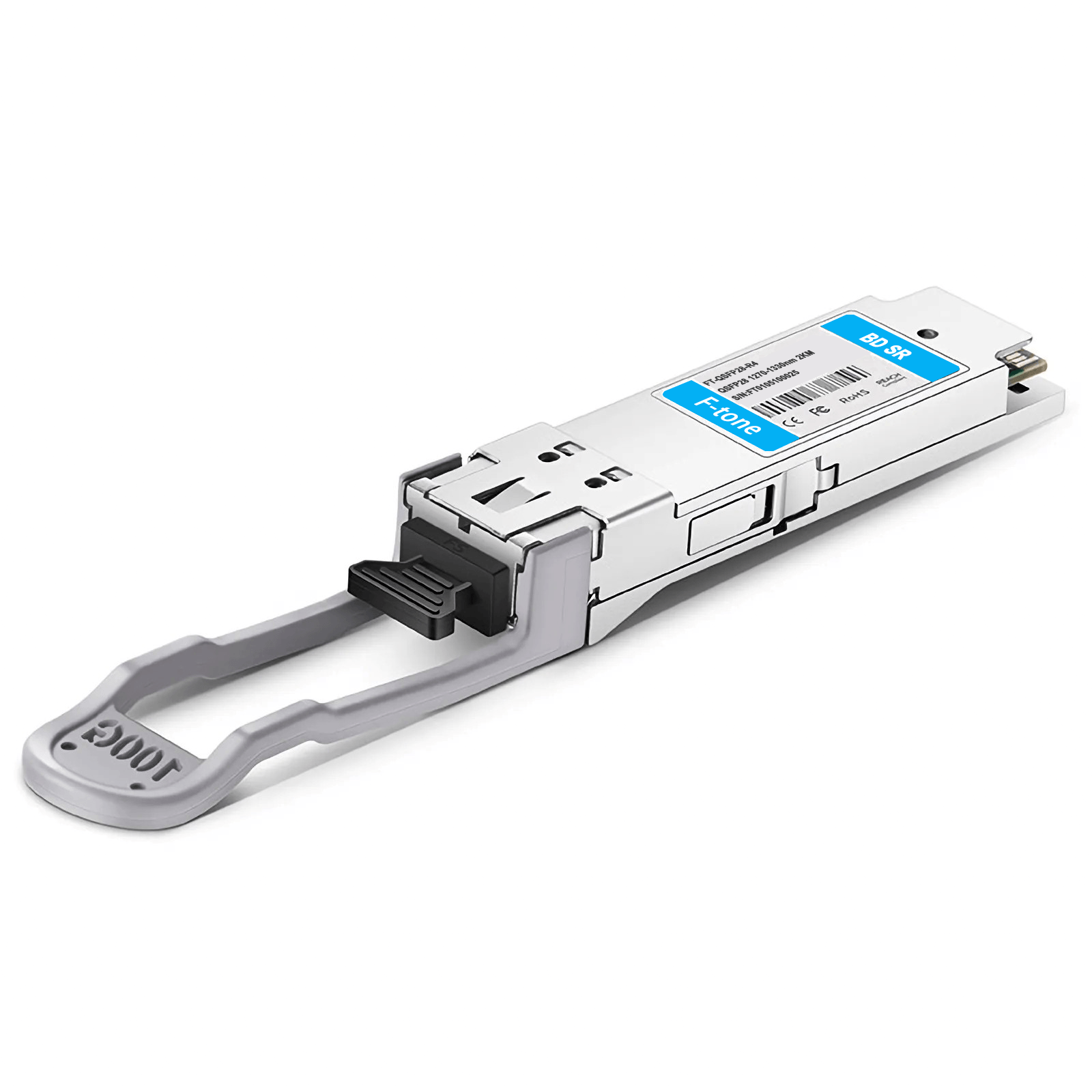

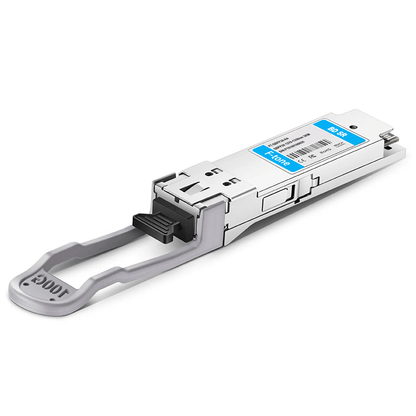

Cisco QSFP-100G-CWDM4-S Compatible 100GBASE-CWDM4 QSFP28 1310nm 2km LC Duplex SMF DDM Optical Transceiver Module
The Cisco QSFP-100G-CWDM4-S compatible optical transceiver module is designed with duplex LC connectors, reaching a link up to 2km over single-mode fiber (OS2). It is verified to interoperate with original Cisco switches, including the Catalyst 9400/9500/9600 and Nexus 9300/9500/9800/3000 series. F-tone Networks manufactured 100GBASE-CWDM4 QSFP28 transceiver module is compliant with IEEE 802.3bm, 100G QSFP28 CWDM4 MSA standard. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in data centers, campus networks, the enterprise core layer, etc.
| Part Number | FT-QSFP28-IR4 | Vendor Name | F-tone Networks |
| Form Factor | QSFP28 | Data Rate | 103.125 Gbps (4x 25.78Gbps) |
| Wavelength | 1271~1331nm | Distance | 2km |
| Connector | Duplex LC | Cable Type | OS2 SMF |
| Transmitter Type | 4x CWDM DML (DFB) | Receiver Type | PIN |
| TX Power | -6.5~2.5dBm | Receiver Sensitivity | <-11.5dBm |
| Power Consumption | ≤3.5W | Modulation Format | NRZ |
| DDM | Support | Bit Error Ratio (BER) | 5E-5 |
| Protocols | IEEE 802.3ba, IEEE 802.3bm, SFF-8665, SFF-8636, 100G CWDM4 MSA, QSFP28 MSA | Warranty | 5 Years |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series
HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series
-
AVAGO HFBR-2521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-2528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price
Power and Wavelength Testing
Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
