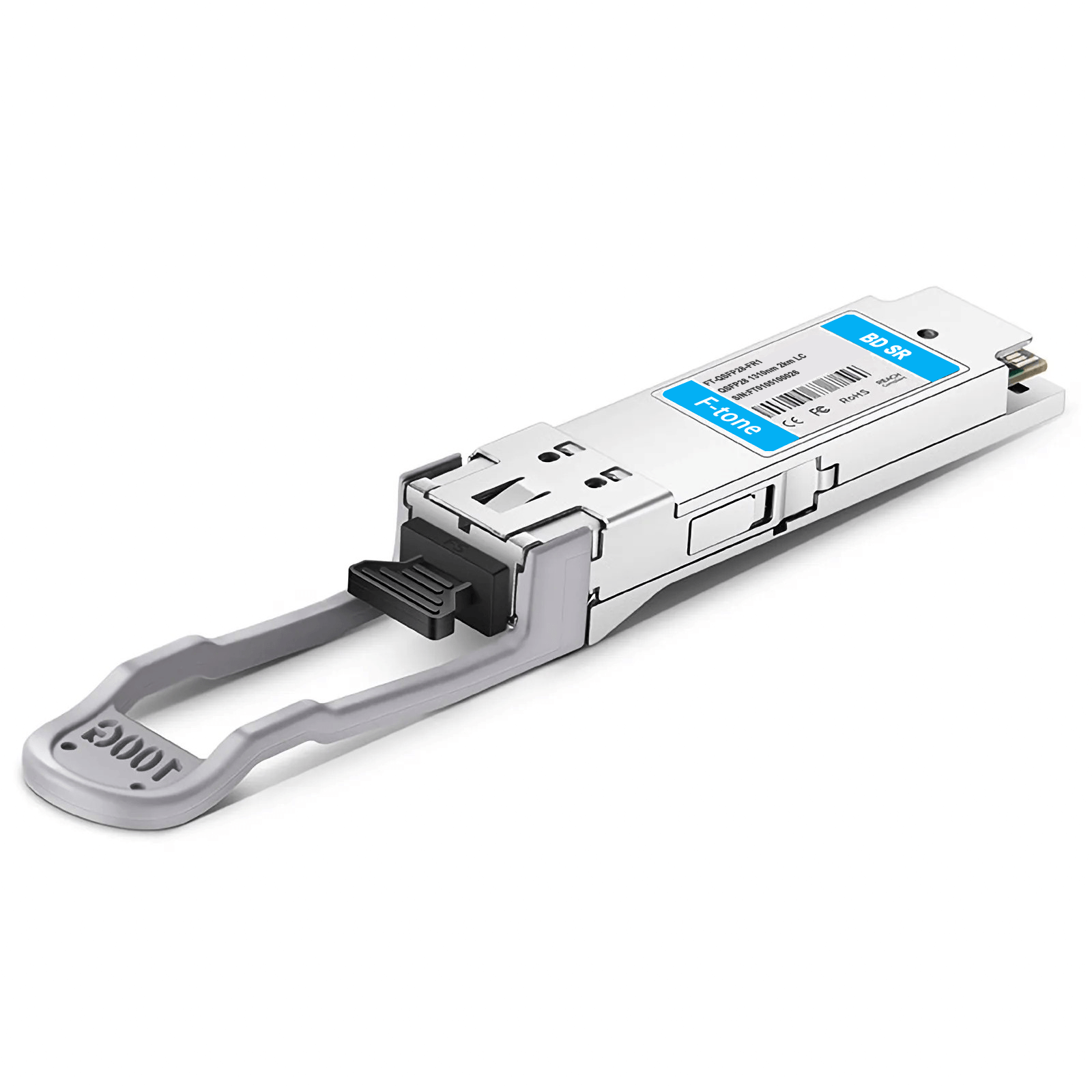

Cisco QSFP-100G-FR-S Compatible 100GBASE-FR Single Lambda QSFP28 1310nm 2km LC Duplex SMF DDM Optical Transceiver Module

Cisco QSFP-100G-FR-S Compatible 100GBASE-FR Single Lambda QSFP28 1310nm 2km LC Duplex SMF DDM Optical Transceiver Module

View full details

Cisco QSFP-100G-FR-S Compatible 100GBASE-FR Single Lambda QSFP28 1310nm 2km LC Duplex SMF DDM Optical Transceiver Module

The Cisco QSFP-100G-FR-S compatible optical transceiver module is designed with duplex LC connectors, reaching a link up to 2km over single mode fiber(OS2). F-tone Networks manufactured the 100G FR can convert the 4x25G NRZ electrical signals to a 1x100G PAM-4 optical signal. This transceiver is compliant with QSFP28 MSA and 100G Lambda MSA standards. Besides, DDM (digital diagnostics monitoring) function is supported on the 100G fiber optic transceiver to achieve real-time operating parameters monitoring. With these features, this 100G QSFP28 transceiver is widely applied in Data Center and 400G to 100G breakout applications.

Part Number:

FT-QSFP28-FR1

Vendor Name:

F-tone Networks

Form Factor:

QSFP28

Data Rate:

103.125Gbps
Wavelength: 1310nm

Distance:

2km

Connector:

Duplex LC

Cable Type:

OS2 SMF

Transmitter:

 EML

Receiver Type:

PIN

TX Power:

-3.1~+4dBm

Receiver Sensitivity:

<-7.1dBm

Power Consumption:

≤4.3W

Modulation Format:

PAM4

DDM:

Support

Bit Error Ratio (BER):

5E-5

Protocols:

100G Lambda MSA 100G-FR Specification compliant, QSFP28 MSA, SFF-8636

Warranty:

5 Years

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.

HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series

View all

HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series

View all

Power and Wavelength Testing

Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.

Power and Wavelength Testing

Traffic Testing

Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.

Traffic Testing

Optical Performance Testing

Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.

Optical Performance Testing

End Face Testing

Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.

End Face Testing

Various Switch Tests

Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.

Various Switch Tests
