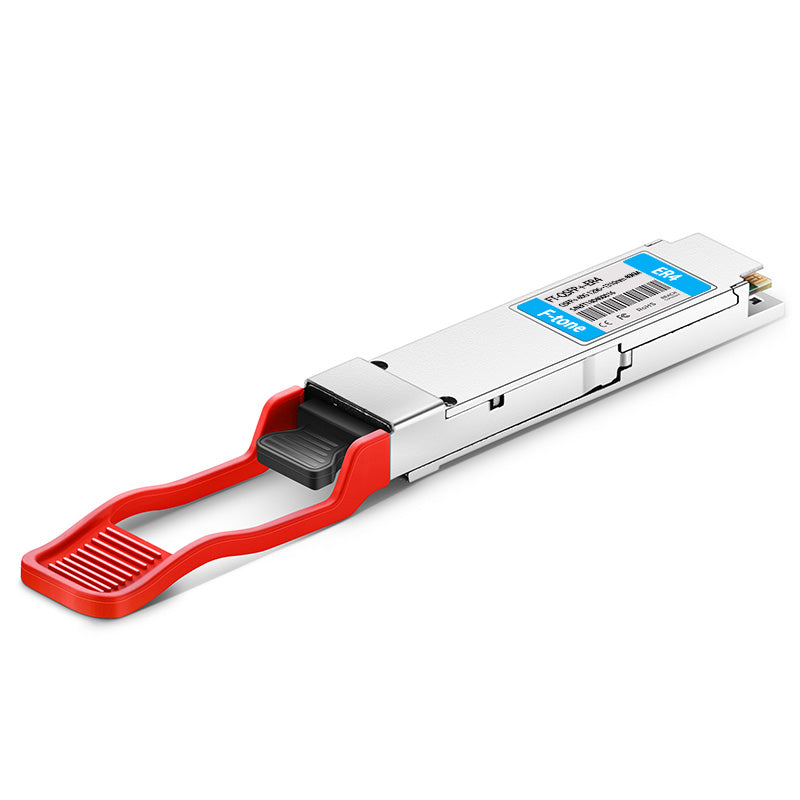

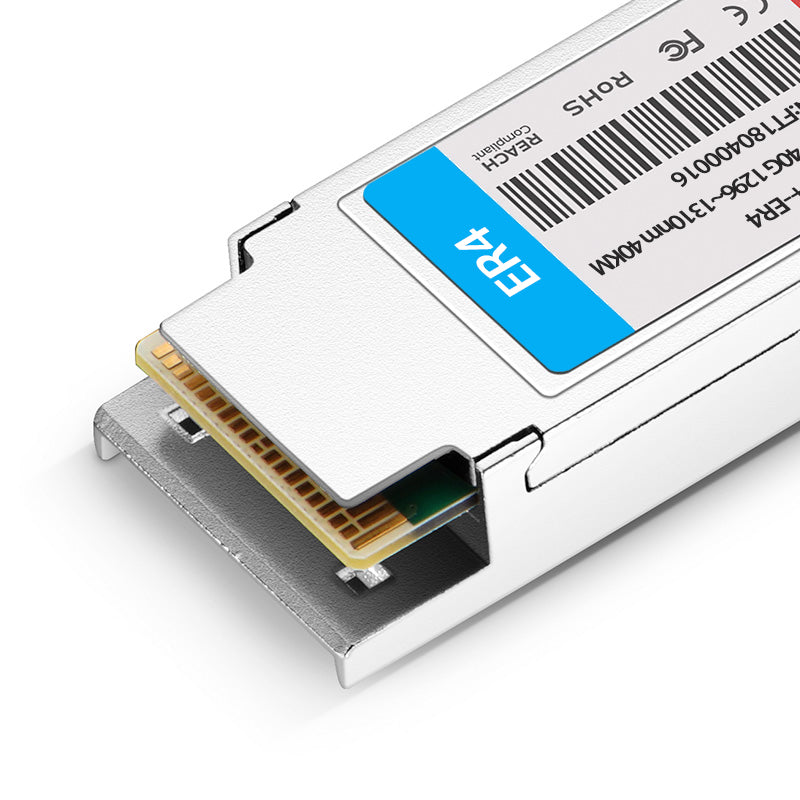

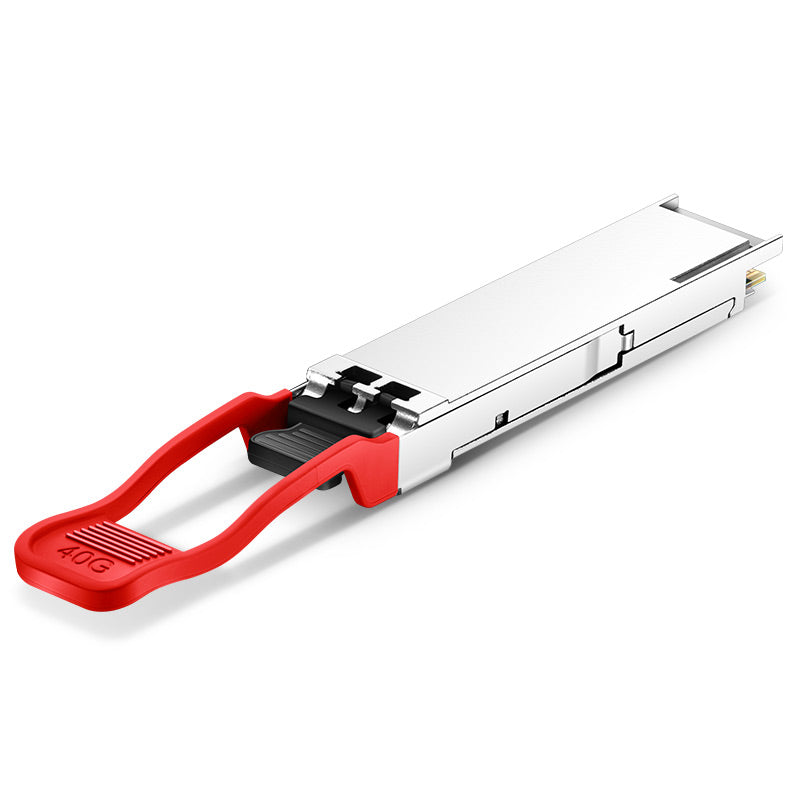

Cisco QSFP-40G-ER4 Compatible 40GBASE-ER4 QSFP+ Optical Transceiver Module (SMF, 1310nm, 40km, LC, DDM)

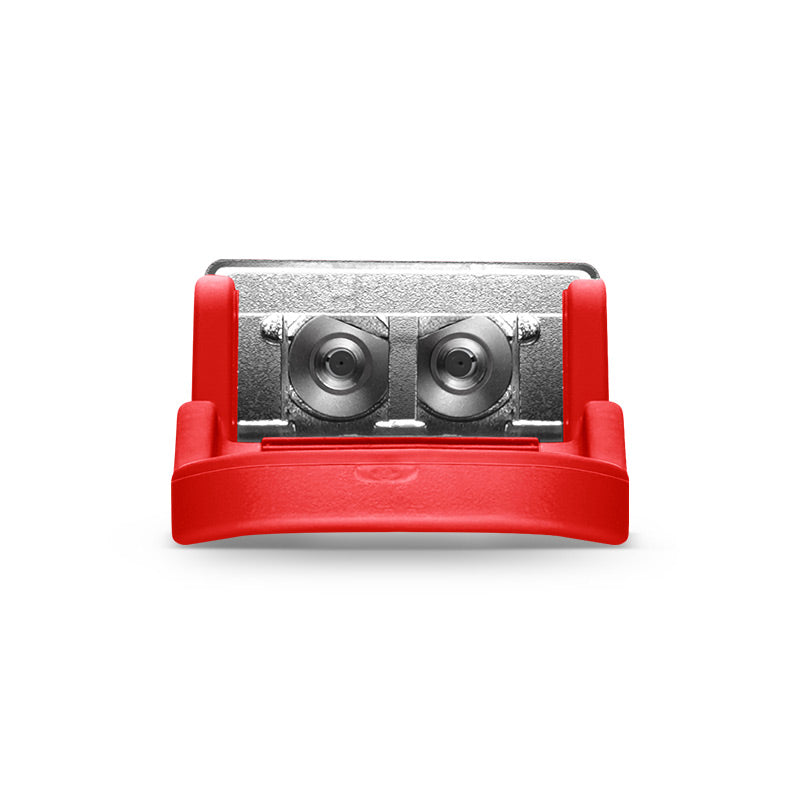

The Cisco QSFP-40G-ER4 compatible 40G QSFP+ transceiver module is equipped with LC duplex connectors, reaching a link up to 10km over OS2 single-mode fiber (SMF). This 40G optical transceiver comes with a bidirectional 4-channel QSFP+ connector, enabling a total of 40 Gbps bandwidth by each channel carrying a 10 Gbps data rate. DOM/DDM (digital diagnostics monitoring) function is supported on the 40G fiber optic transceiver to achieve real-time operating parameters monitoring.
F-tone manufactured 40GBASE-ER4 QSFP+ module is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-ER4 specifications. Besides, the quad small form-factor pluggable (QSFP) ER4 optic has been tested on host devices to ensure full compatibility with Cisco equipment, such as data center switches, enterprise routers, and server network interface cards (NICs). The third-party 40G SFP module is an ideal substitute to the Cisco QSFP-40G-ER4 QSFP+ 40G transceiver at an affordable price, providing a cost-effective compatible solution for high-performance 40G connectivity.
ER4 40G QSFP optics cater to 40 Gigabit Ethernet (40GbE) optical fiber connections, ideal for high-performance and long-distance applications in long-haul networks, campus networks, metro networks, etc.
| Model Name | QSFP-40G-ER4 | Vendor Name | F-tone |
| Form Factor | QSFP+ | Data Rate | 40 Gbps |
| Wavelength | 1310nm | Distance | 40km@OS2 |
| Connector | LC Duplex | Cable Type | OS2 SMF |
| Transmitter Type | DFB | Receiver Type | PIN |
| TX Power | -2.7~4.5dBm | Receiver Sensitivity | <-19dBm |
| Power Consumption | <3.5W | Modulation Format | NRZ |
| DDM | Support | Bit Error Ratio (BER) | 1E-12 |
| Protocols | IEEE 802.3ba, QSFP+ MSA, SFF-8436, Infiniband 40G QDR | Warranty | 5 Years |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series
HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series
-
AVAGO HFBR-2521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-2528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price
Power and Wavelength Testing
Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
