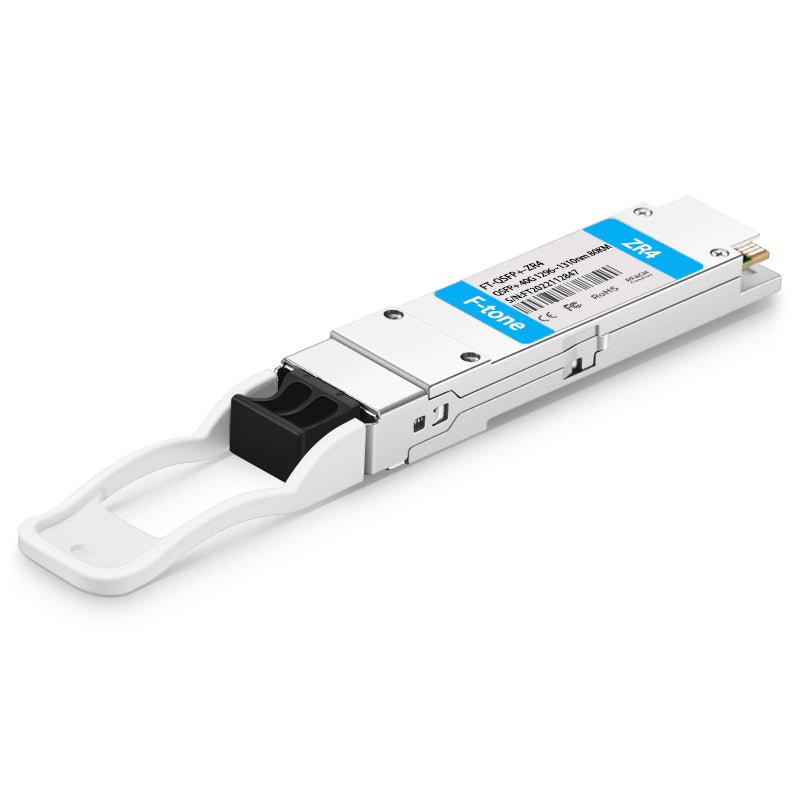

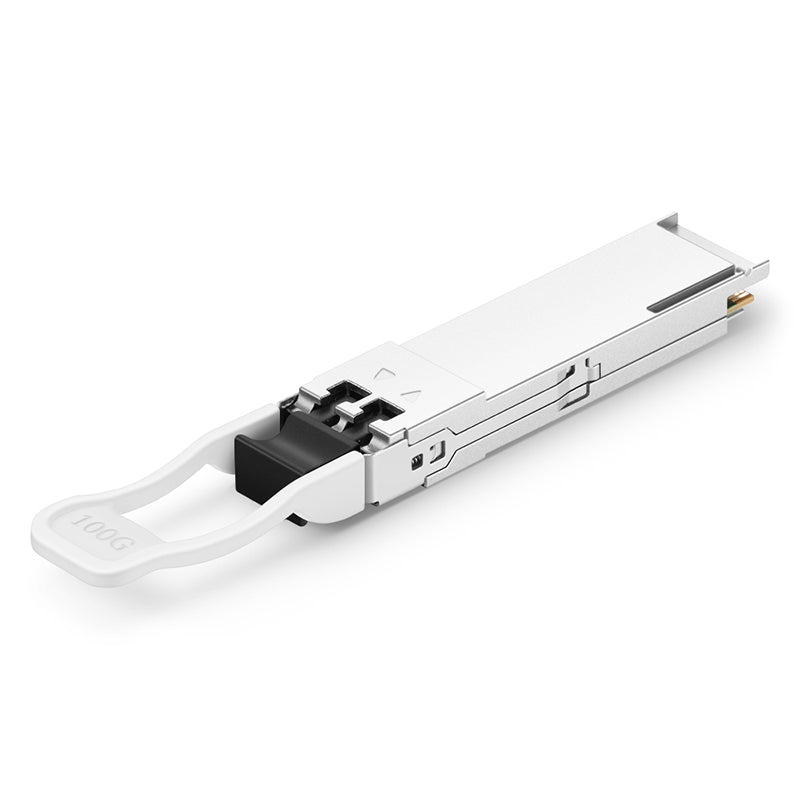

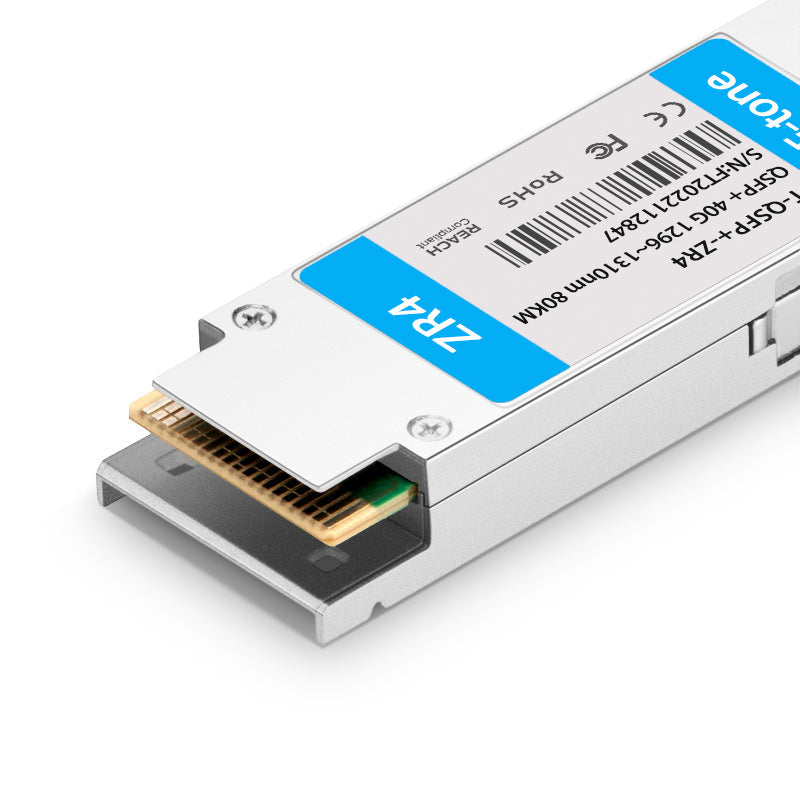

Cisco QSFP-40G-ZR4 Compatible 40GBASE-ZR4 QSFP+ 1310nm 80km Optical Transceiver Module

Cisco QSFP-40G-ZR4 Compatible 40GBASE-ZR4 QSFP+ 1310nm 80km Optical Transceiver Module

View full details

Cisco QSFP-40G-ZR4 Compatible 40GBASE-ZR4 QSFP+ Optical Transceiver Module (1294~1310nm, SMF, 80KM, LC, DDM)

Cisco QSFP-40G-ZR4 compatible QSFP+ optical transceiver is equipped with LC duplex connectors, reaching a link up to 80km over OS2. F-tone manufactured 40GBASE-ZR4 QSFP+ transceiver module is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-ZR4. Besides, DDM (digital diagnostics monitoring) function is supported on the 40G fiber optic transceiver to achieve real-time operating parameters monitoring. This 40G QSFP+ transceiver caters for long-haul networks, campus networks, metropolitan area networks, etc.

Part Number:

QSFP-40G-ZR4

Vendor Name:

F-tone

Form Factor:

QSFP+

Data Rate:

40Gbps

Wavelength:

1294~1310nm

Distance:

 80km@OS2>

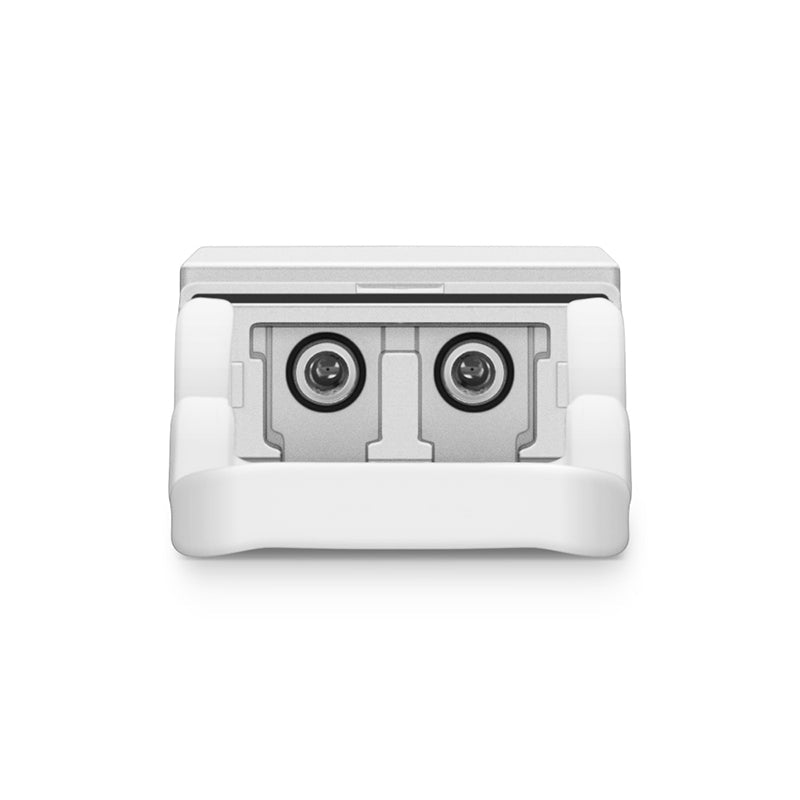

Connector:

Duplex LC

Cable Type:

OS2 SMF

Transmitter:

 EML

Receiver Type:

APD

TX Power:

-2.7~4.5dBm

Receiver Sensitivity:

<-28dBm

Power Consumption:

≤ 5W

Modulation Format:

NRZ

DDM:

Support

Bit Error Ratio (BER):

1.00E-12

Protocols:

IEEE 802.3ba IEEE 802.3ba, QSFP+ MSA, SFF-8436, Infiniband 40G QDR

Warranty:

5 Years



Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
