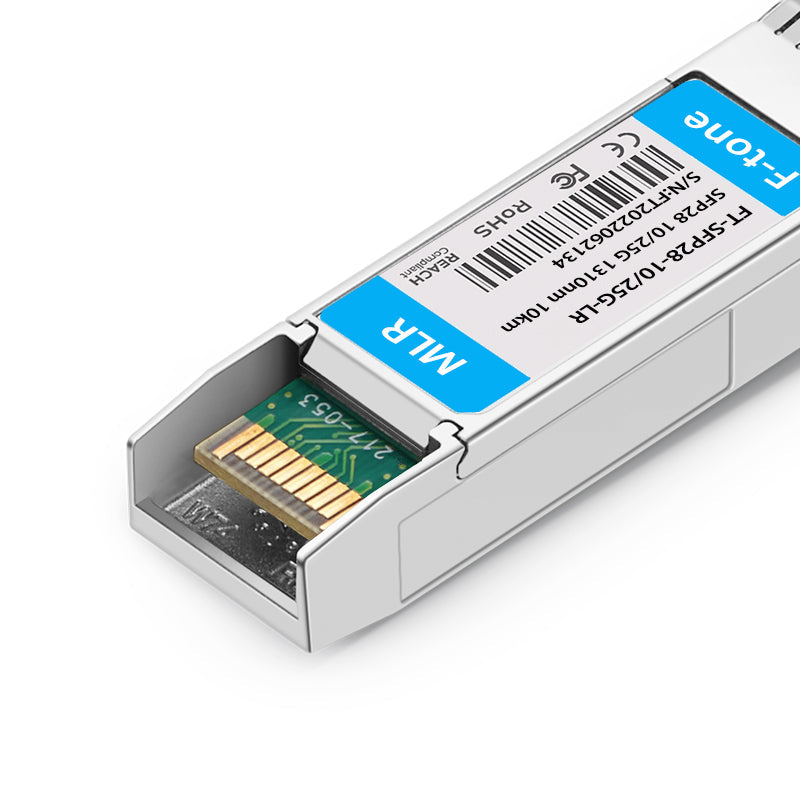

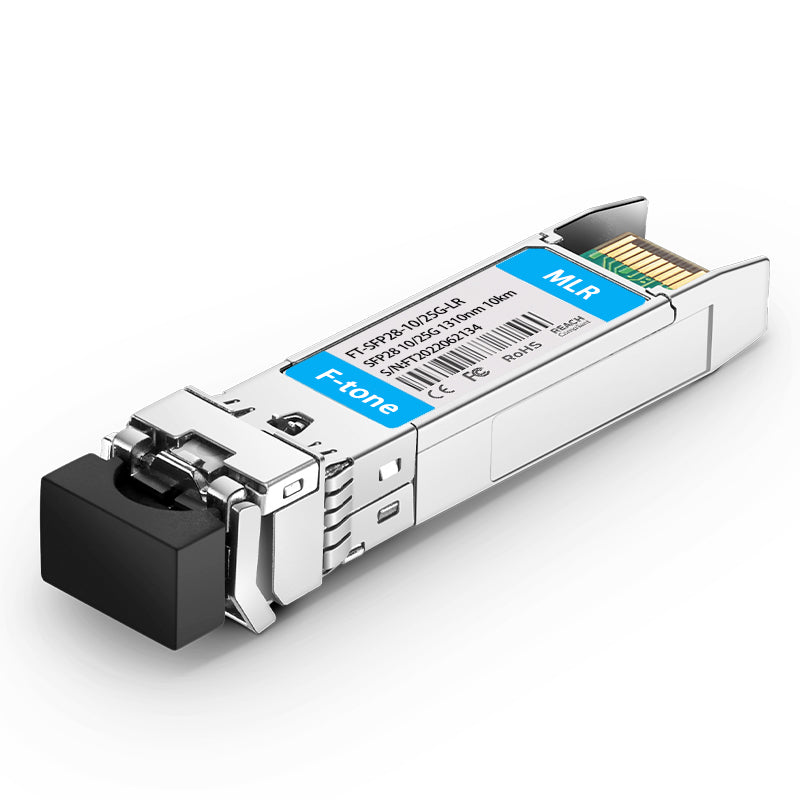

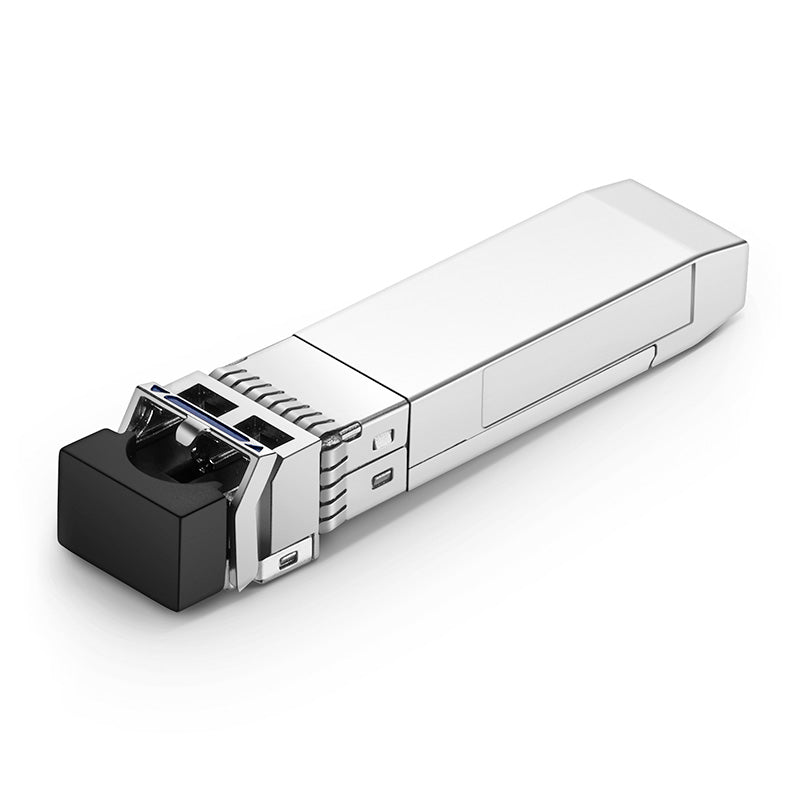

Cisco SFP-10/25G-LR-S Compatible 10/25GBASE-LR SFP28 Optical Transceiver Module for Data Center (SMF, 1310nm, 10km, DOM)
The Cisco SFP-10/25G-LR-S compatible SFP28 transceiver allows for data transmission at 10/25GBASE-LR speed over single mode fiber (SMF) for up to 10km, utilizing a 1310nm wavelength and an LC duplex connector. This transceiver offers connectivity options for 25G Ethernet, 10G Ethernet, and data centers. Furthermore, it complies with the SFP28 MSA, SFF-8472, SFF-8402, SFF-8432 standards, as well as relevant sections of the SFF-8431 standard.
|
Model Name |
SFP-10/25G-LR-S |
Vendor Name |
F-tone |
|
Form Factor |
SFP28 |
Max Data Rate |
25.78Gbps |
|
Wavelength |
1310nm |
Max Cable Distance |
10km |
|

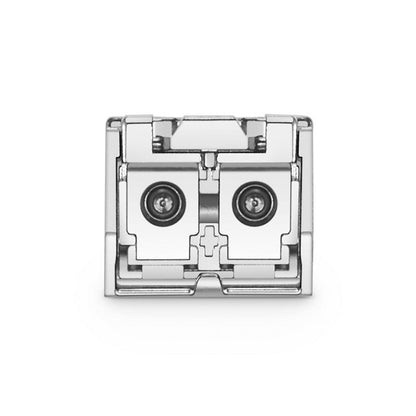

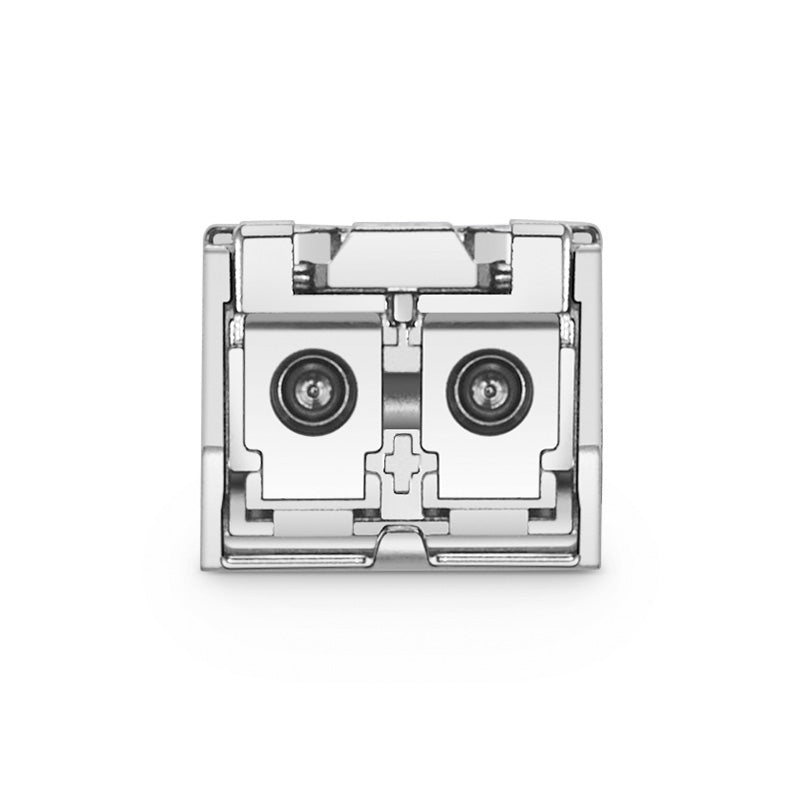

Connector |
Duplex LC |
Media |
SMF |
|
Transimitter Type |
DFB |
Receiver Type |
PIN |
|
TX Power |
-7~2.5dBm |
Receiver Sensitivity |
＜13.5dBm |
|
Powerbudget |
5.5dB |
Receiver Overload |
2.5dBm |
|
Power Consumption |
≤1.5W |
Extinction Ratio |
>3dB |
|
Commercial Temperature Range |
0 to 70°C |
Protocols |
SFF-8472, SFF-8024, SFF-8431, SFF-8432, CEI-28G-VSR |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
