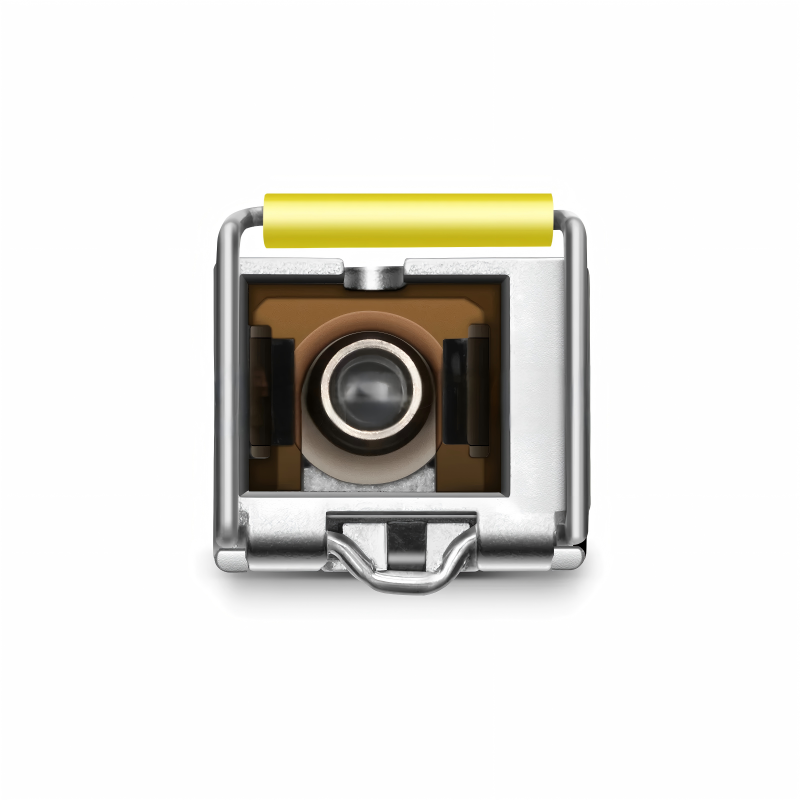

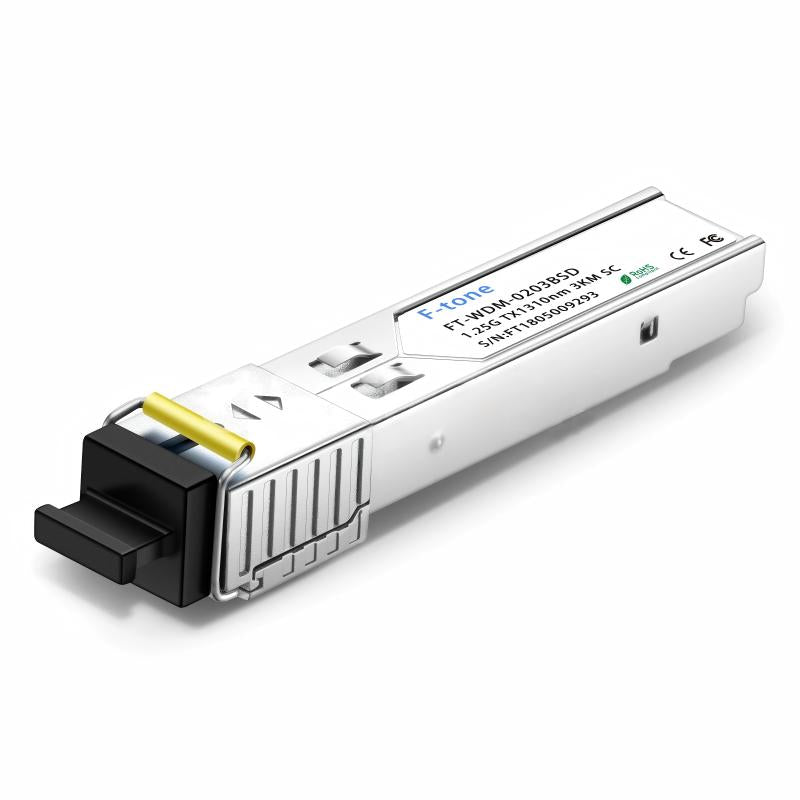

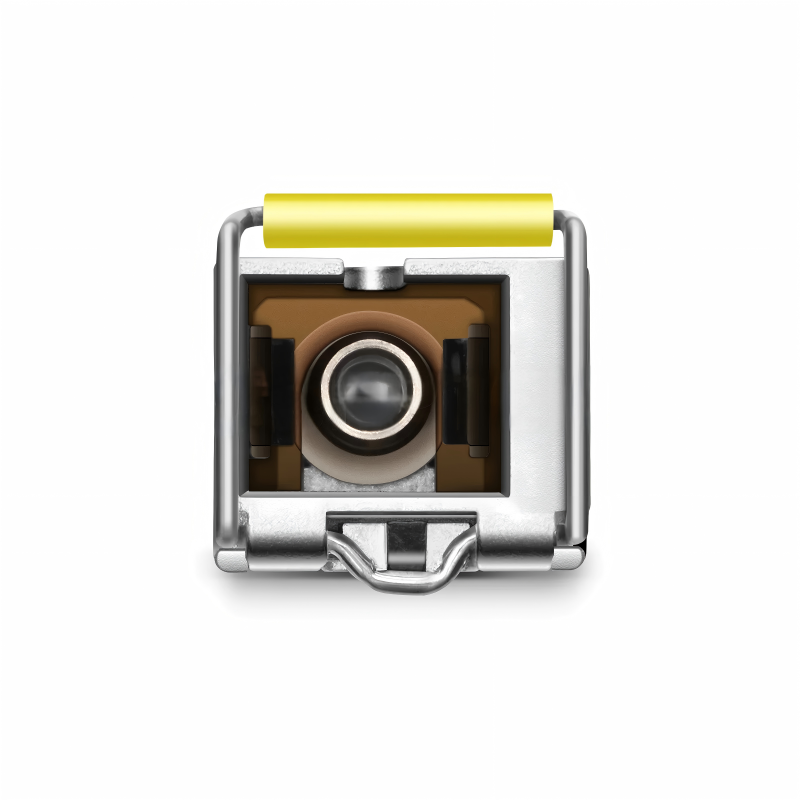

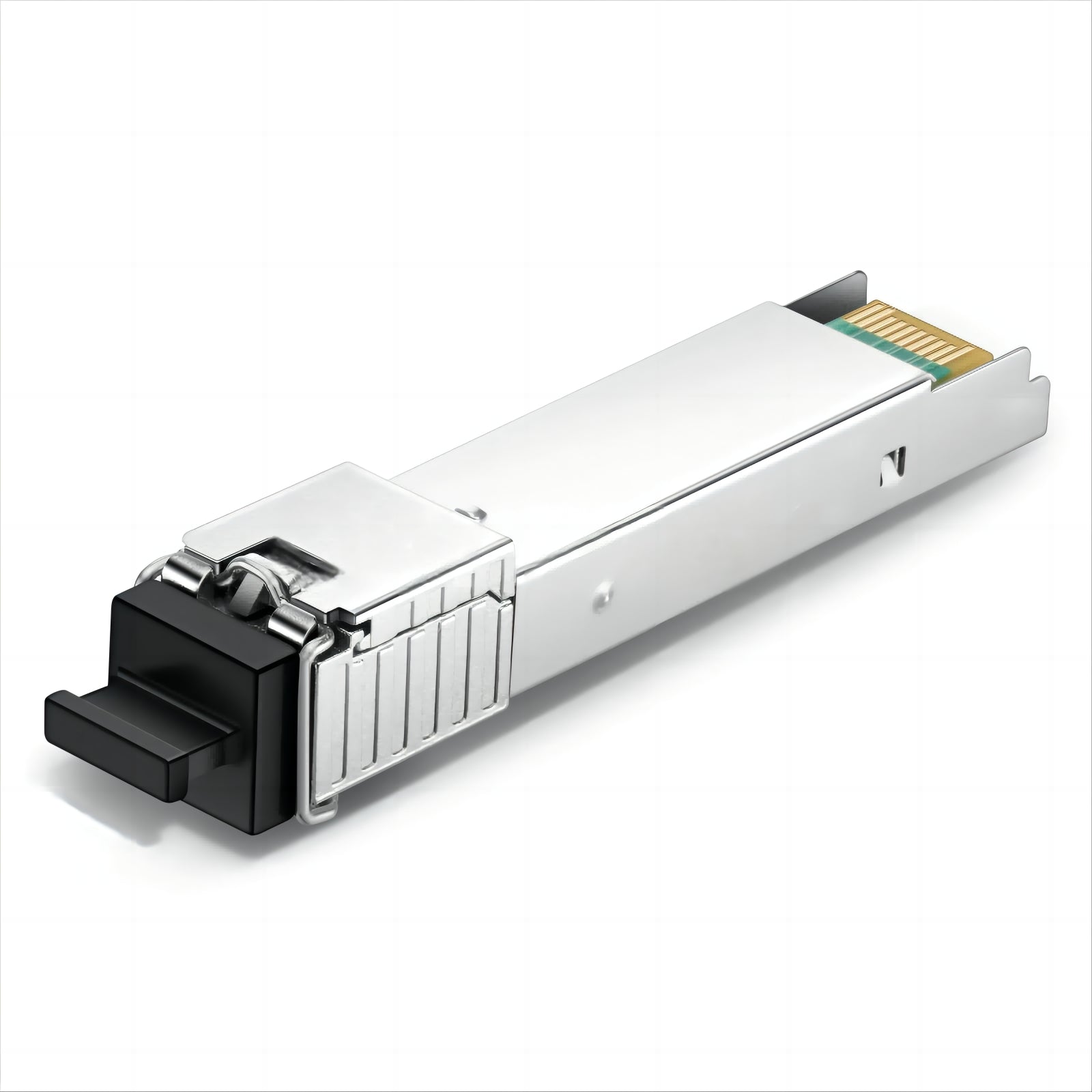

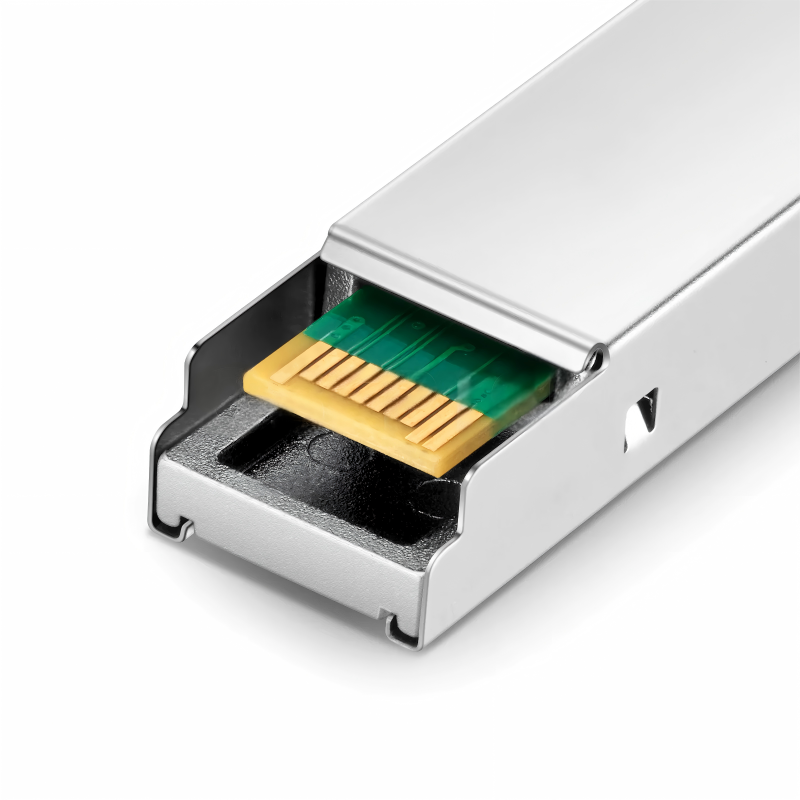

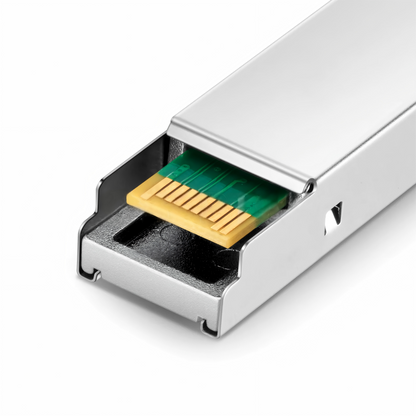

Cisco Compatible 1000BASE-BX BiDi SFP 1310nm-TX/1550nm-RX 10km DOM SC SMF Transceiver Module
The Cisco compatible SFP optical transceiver module is equipped with SC simplex connector, reaching a link up to 10km. This 1G BiDi SFP transceiver, featured with carrying information in both directions via a single strand, can double your network capacity and save your cable resources. F-tone manufactured 1G SFP optical transceiver is compliant with MSA, SFF-8472. Besides, DDM (digital diagnostics monitoring) function is supported on the 1G fiber optic transceiver to achieve real-time operating parameters monitoring. It's also fully compatible with almost all Cisco devices.
| Part Number: | FT-WDM-0210ASD | Vendor Name: | F-tone |
| Form Factor: | SFP | Data Rate: | 1.25Gbps |
| Wavelength: | 1310nm-TX/1550nm-RX | Distance: | 10km |
| Connector: | SC Simplex | Cable Type: | OS2 SMF |
| Transmitter: | FP | Receiver Type: | PIN |
| TX Power: | -9~-3dBm | Receiver Sensitivity: | <-22dBm |
| Power Consumption: | <1W | Modulation Format: | NRZ |
| DDM: | Support | Bit Error Ratio (BER): | 1E-12 |
| Protocols: | Fast Ethernet, Gigabit Fibre Channel, MSA Compliant, SFF-8472 | Warranty: | 5 Years |
10km 1G BiDi SFP Model Contrast Table
|
Part Number |
FT-WDM-0210AD |
FT-WDM-0210BD |
FT-WDM10-1413D |
FT-WDM-0210ASD |
FT-WDM-0210BSD |
|
Image |
 |
 |
 |
 |
 |
|
Form Factor |
SFP |
SFP |
SFP |
SFP |
SFP |
|
Data Rate |
1.25 Gbps |
1.25 Gbps |
1.25 Gbps |
1.25 Gbps |
1.25 Gbps |
|
Wavelength |
TX1310nm |
TX1550nm |
TX1490nm |
TX1310nm |
TX1550nm |
|
Connector |
LC Simplex |
LC Simplex |
LC Simplex |
SC Simplex |
SC Simplex |
|
Cable Type |
LC Simplex OS2 SMF |
LC Simplex OS2 SMF |
LC Simplex OS2 SMF |
SC Simplex OS2 SMF |
SC Simplex OS2 SMF |
|
Max Distance |
10km |
10km |
10km |
10km |
10km |
|
Temperature Range |
0 to +70℃ |
0 to +70℃ |
0 to +70℃ |
0 to +70℃ |
0 to +70℃ |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
HFBR-1414TZ | HFBR-2412TZ AVAGO compatible full series
HFBR-1521Z | HFBR-2521Z | AFBR-1629Z | HFBR-2629Z AVAGO compatible full series
-
AVAGO HFBR-2521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1521ETZ Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-1528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price -
AVAGO HFBR-2528Z Compatible Domestic Alternative Optical Module
Regular price $0.00Regular price
Power and Wavelength Testing
Test the signal delivering strength and wavelength, to ensure the signal decoding capacity of the receiver, and the wavelength remains consistent from the transmitter to the receiver.
Traffic Testing
Test the bit error rate and packet loss rate, to make them meet the corresponding standards and ensure the performance of transceivers.
Optical Performance Testing
Test the transceivers' eye diagram situation, receiving sensitivity, extinction ratio, wavelength, light-emitting, light-receiving, current and voltage, to ensure the signal quality, stability and reliability of the transmission.
End Face Testing
Check the end face of the transceivers and keep them clean for more stable data transmission, better performance, and durability.
Various Switch Tests
Every module is quality tested for compatibility in the multi-brand switches environment, guaranteeing flawless operations.
